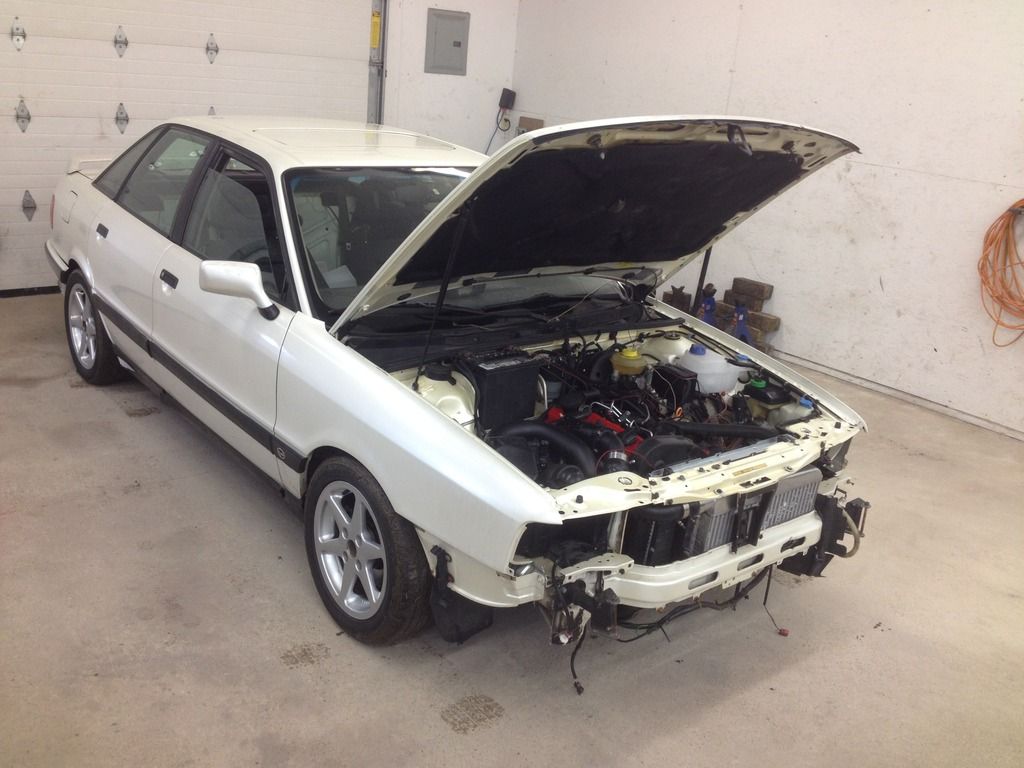

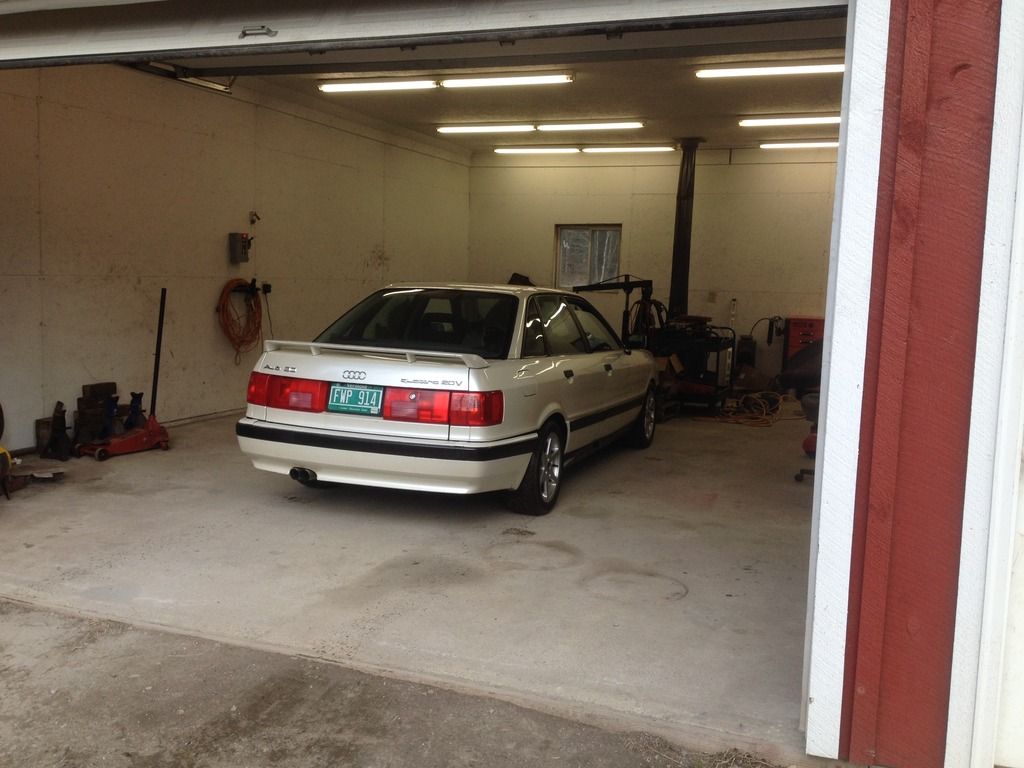

i washed it and realized...."oh yea, this car is pretty"....
current:
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
Re: 1.9 TDI into 90q: Coal Train?
Gonna have to pull the 20v badge at some point, no?
And agreed, will need to hear it while driving to figure out the optimal exhaust setup but you're oh so close.
Can't wait for driving vids!
And agreed, will need to hear it while driving to figure out the optimal exhaust setup but you're oh so close.
Can't wait for driving vids!
Find me on Instagram @pry4sno
|| 2010 Golf Sportwagen TDI /// #farmenwagen
|| 2002 Dodge Ram 2500 24vt 4x4 #bertancummins
|| 1992 80 quattro 20v /// Eventual AAN'd Winter Sled
|| 1990 Coupe quattro /// Because Racecar
|| 2010 Golf Sportwagen TDI /// #farmenwagen
|| 2002 Dodge Ram 2500 24vt 4x4 #bertancummins
|| 1992 80 quattro 20v /// Eventual AAN'd Winter Sled
|| 1990 Coupe quattro /// Because Racecar
Re: 1.9 TDI into 90q: Coal Train?
Those wheels are going to look awesome! Love it!
-Alex-
@vexartmedia @odd.cylinders @5cylinder_porsche
Odd Cylinders YouTube Page
1992 Porsche 968 (07K transplant in progress)
1983 Aud UrQ (MC1, GT2871R, IIc)
1985 Audi 4kq
2003 Audi S8 (Avus/Oxblood; DD; 6MT swap)
@vexartmedia @odd.cylinders @5cylinder_porsche
Odd Cylinders YouTube Page
1992 Porsche 968 (07K transplant in progress)
1983 Aud UrQ (MC1, GT2871R, IIc)
1985 Audi 4kq
2003 Audi S8 (Avus/Oxblood; DD; 6MT swap)
-
themagellan
- Posts: 873
- Joined: Tue Mar 05, 2013 10:36 am
Re: 1.9 TDI into 90q: Coal Train?
Beautiful
-
audifreakjim
- Posts: 2142
- Joined: Sun Mar 03, 2013 3:00 pm
Re: 1.9 TDI into 90q: Coal Train?
Hubba Hubba!
Re: 1.9 TDI into 90q: Coal Train?
its springtime in VT, and its time for the annual MK4 oil pan smash.
Can you spot my quick change drain plug?

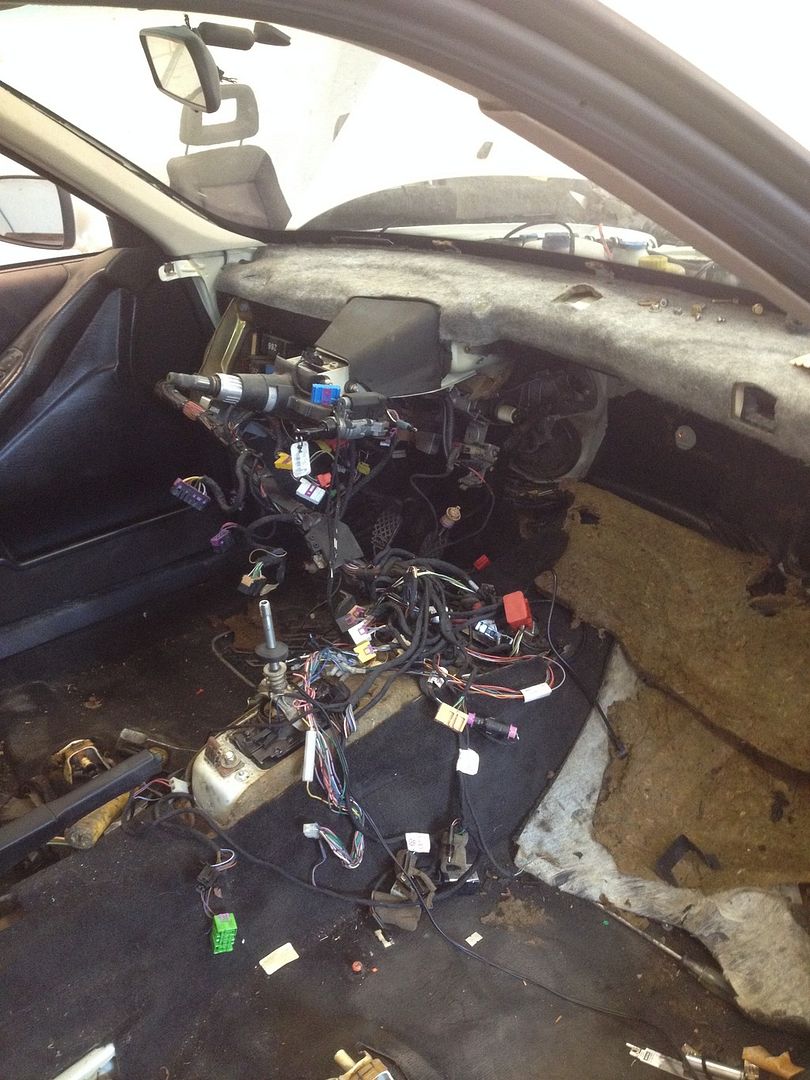

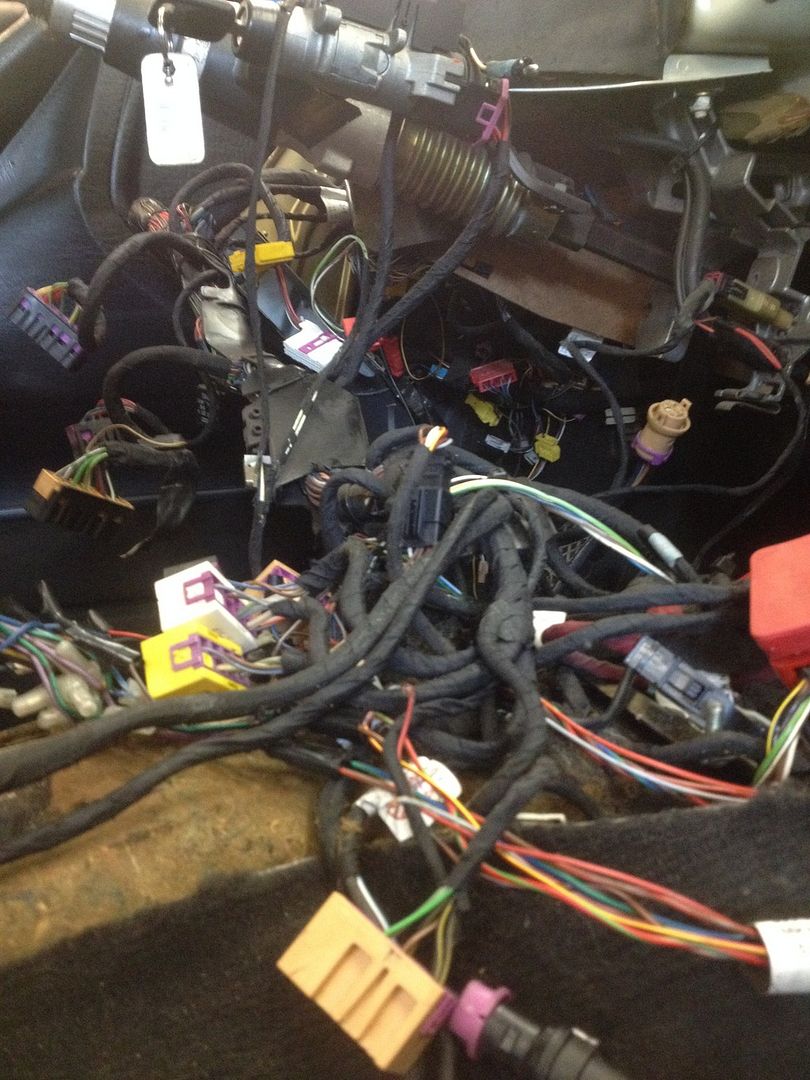

I like wiring harness work, but damnit I forgot how much I don't like pulling the b3 dash. What a cluster.
it puked its guts out

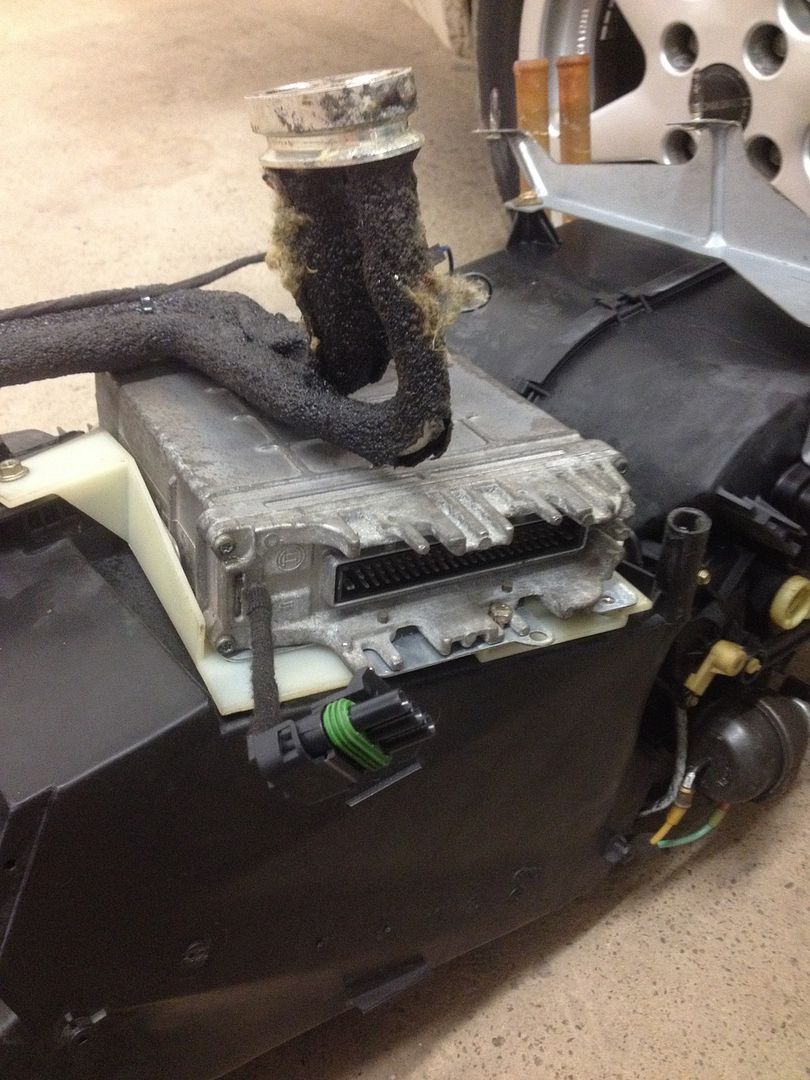

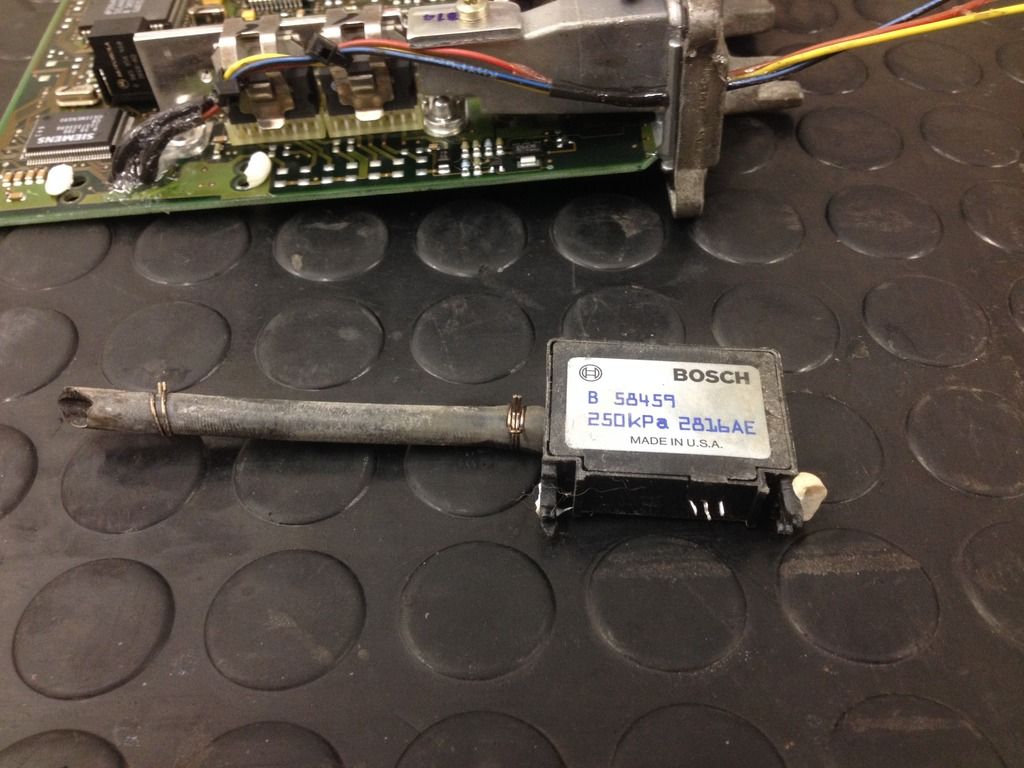

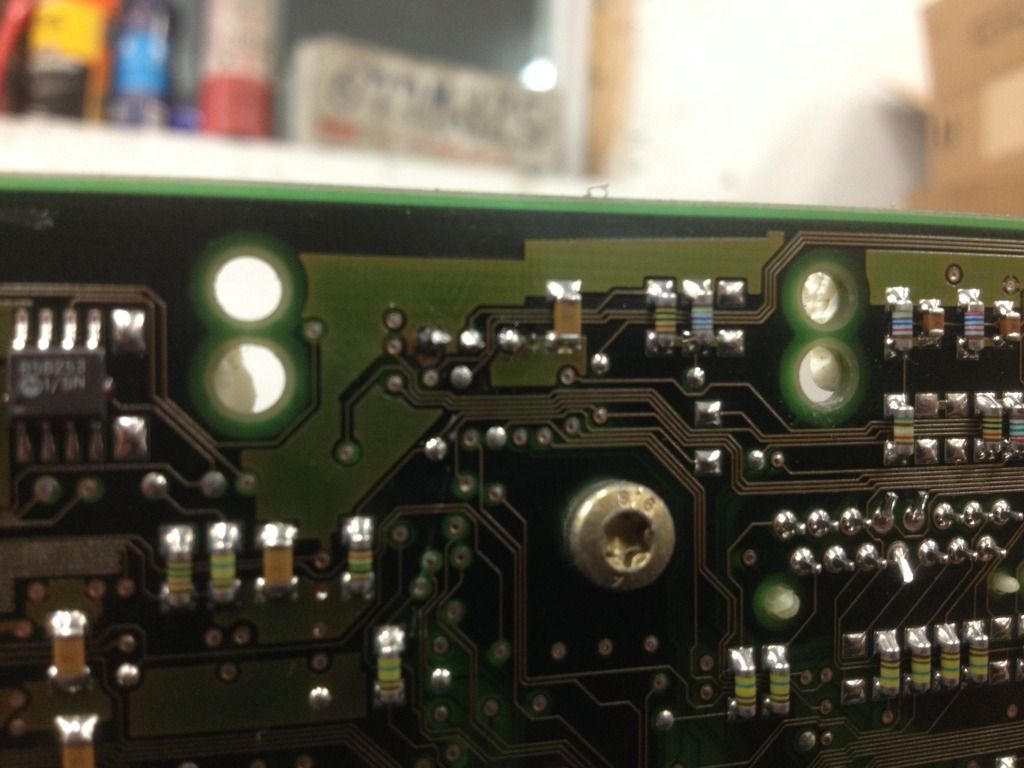

removed the internal 250kpa map sensor and ran wires in prep for an external 3bar mk4 style unit.

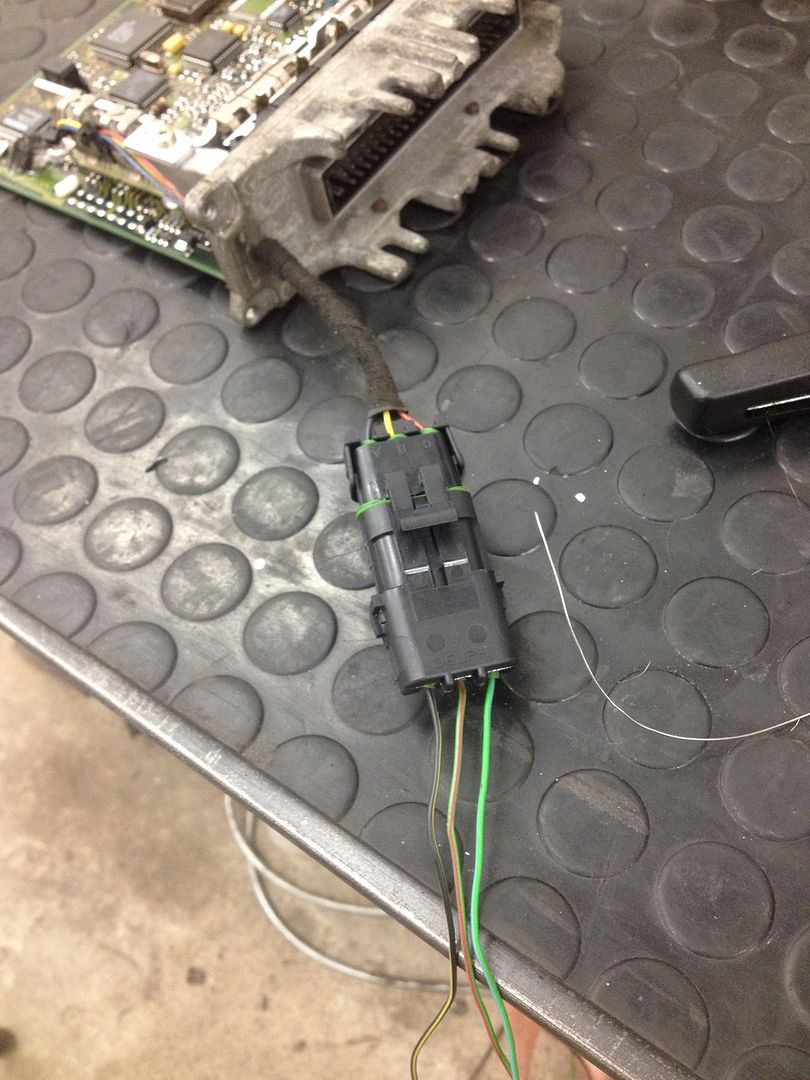

my eyesight is not that good, these tiny pins were hard for me to do.

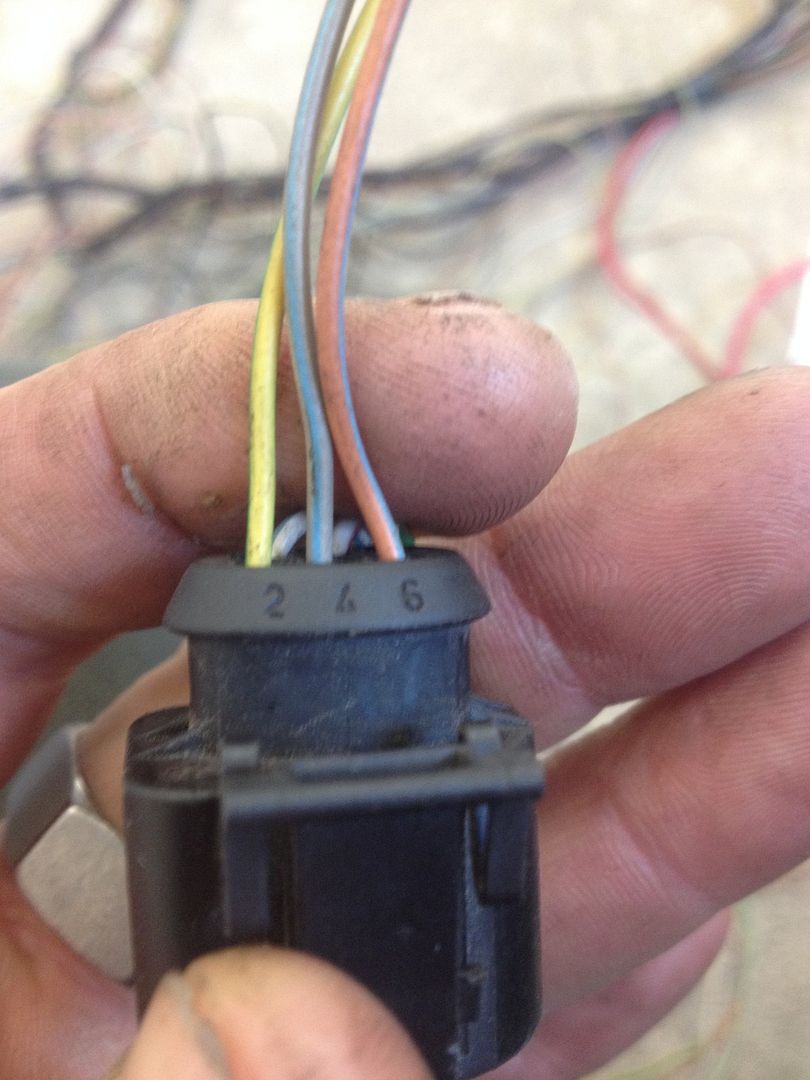

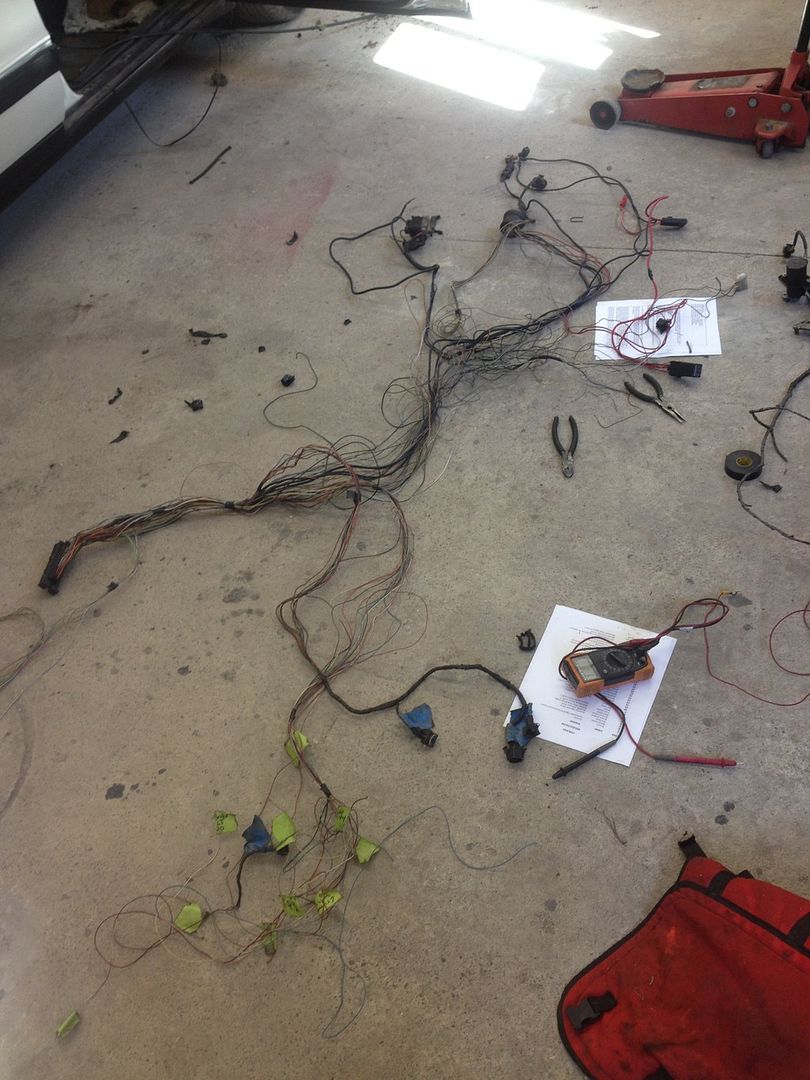

connector and wire pigtails to add into harness and run to new external MAP sensor

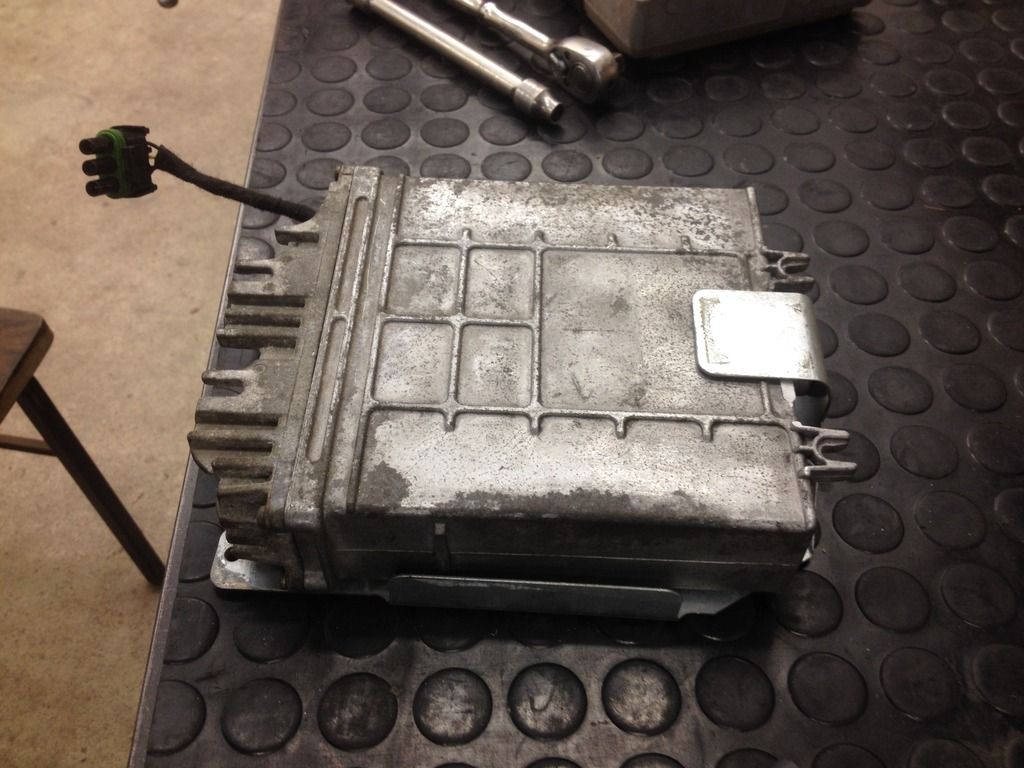

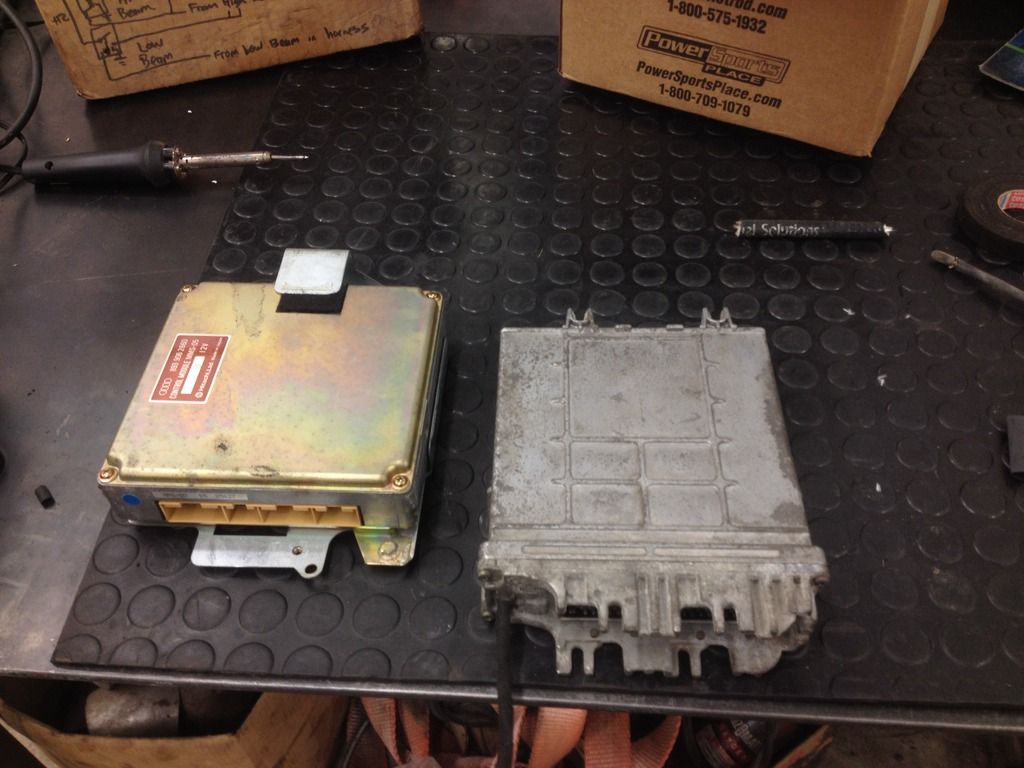

the TDI ecu fits perfectly into the factory holder and clips with a little grinding. Excellent luck.

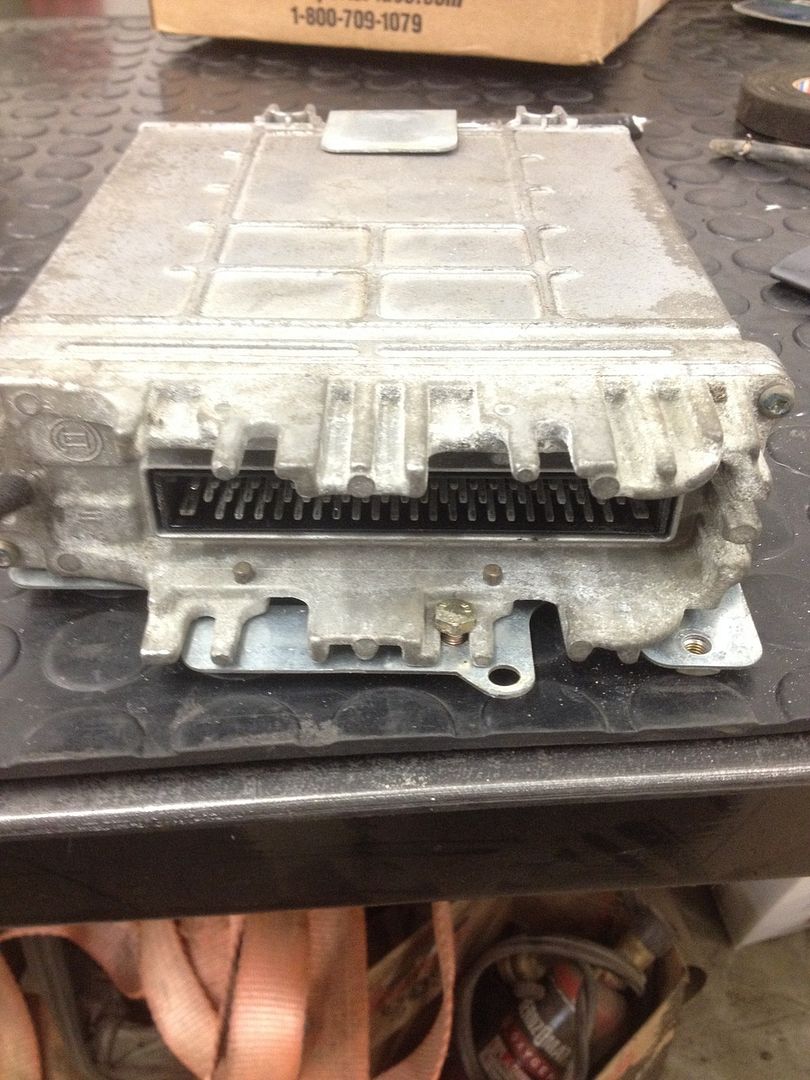

this slot even lines up perfectly with the welded nut from the 7a ecu mounting!
like a glove
Can you spot my quick change drain plug?
I like wiring harness work, but damnit I forgot how much I don't like pulling the b3 dash. What a cluster.
it puked its guts out
removed the internal 250kpa map sensor and ran wires in prep for an external 3bar mk4 style unit.
my eyesight is not that good, these tiny pins were hard for me to do.
connector and wire pigtails to add into harness and run to new external MAP sensor
the TDI ecu fits perfectly into the factory holder and clips with a little grinding. Excellent luck.
this slot even lines up perfectly with the welded nut from the 7a ecu mounting!
like a glove
current:
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
-
Dan McBoost
- Posts: 131
- Joined: Wed Mar 23, 2016 5:04 pm
Re: 1.9 TDI into 90q: Coal Train?
Dana! Glad to see you over here too!
Looks like another fun project (the garage), lol.
Looks like another fun project (the garage), lol.
Dan McBoost
Supras: ● 87T ● 87T ● 1/2 of an 87T ● 85P
Other: ● 06 Sequoia 4X4 ● 04 Evo8 ● 91 Celica Alltrac ● 90 JDM MR2 GT ● 78 Toyota Pickup
Audis: ● 11 Q7 S line ● 09 A6 Avant 3.0T ● 97 A8Q ● 90 CQ ● 85 4000Q
Supras: ● 87T ● 87T ● 1/2 of an 87T ● 85P
Other: ● 06 Sequoia 4X4 ● 04 Evo8 ● 91 Celica Alltrac ● 90 JDM MR2 GT ● 78 Toyota Pickup
Audis: ● 11 Q7 S line ● 09 A6 Avant 3.0T ● 97 A8Q ● 90 CQ ● 85 4000Q
Re: 1.9 TDI into 90q: Coal Train?
Oh jesus, is that on the top of the heater box? I sincerely hope you can get to it with out removing the dash...to switch chips.
Sent from my SAMSUNG-SM-G870A using Tapatalk
Sent from my SAMSUNG-SM-G870A using Tapatalk
Re: 1.9 TDI into 90q: Coal Train?

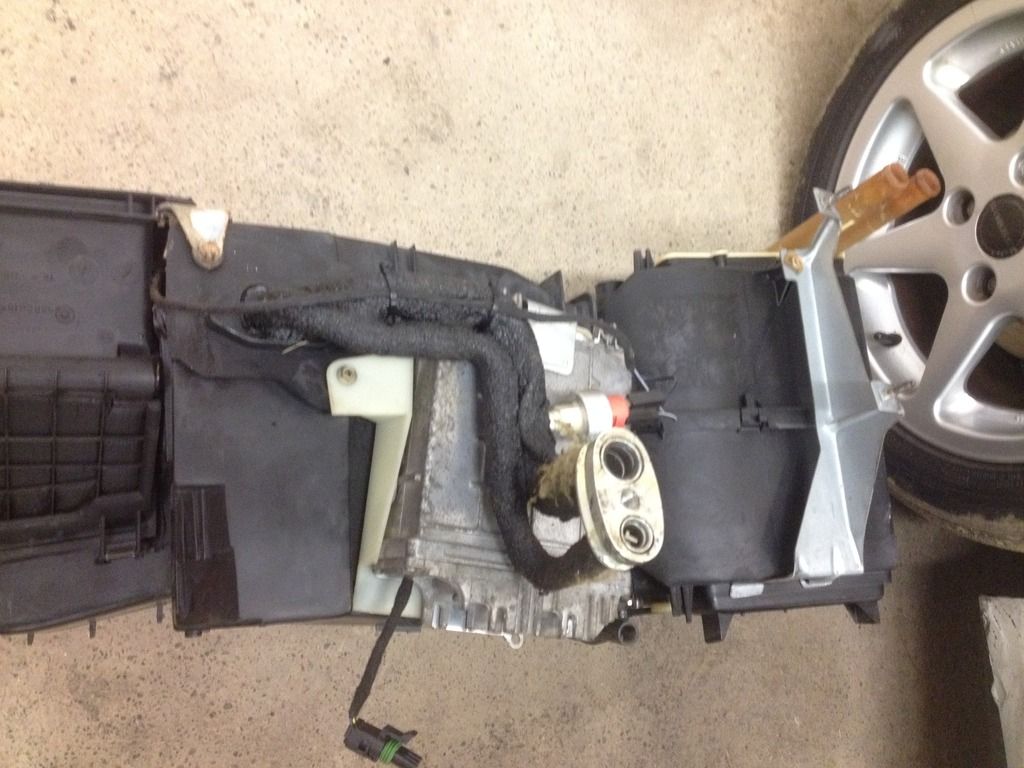

It's the back of the heater box, between the box and firewall. Should be doable to get at with the dash in.
"If you can't find one, make one"
Dallastown, PA
1991 Audi 80 quattro (20vt project)
1991 Audi Coupe Quattro (project: my first 20v)
2007 Mitsubishi Raider(Dakota in disguise)
2019 Chevy Cruze RS hatch (wife's little red sporty car)
Dallastown, PA
1991 Audi 80 quattro (20vt project)
1991 Audi Coupe Quattro (project: my first 20v)
2007 Mitsubishi Raider(Dakota in disguise)
2019 Chevy Cruze RS hatch (wife's little red sporty car)
Re: 1.9 TDI into 90q: Coal Train?
thats the back of the heater box, you can slide it out with dash installed. I dont have to pull the dash every time i need a retune
current:
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
Re: 1.9 TDI into 90q: Coal Train?
Dan McBoost wrote:Dana! Glad to see you over here too!
Looks like another fun project (the garage), lol.
hey man, long time. Are you planning on coming to Carlisle? I am trying to get this car there.
current:
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
-
Dan McBoost
- Posts: 131
- Joined: Wed Mar 23, 2016 5:04 pm
Re: 1.9 TDI into 90q: Coal Train?
dana wrote:Dan McBoost wrote:Dana! Glad to see you over here too!
Looks like another fun project (the garage), lol.
hey man, long time. Are you planning on coming to Carlisle? I am trying to get this car there.
It may be in the cards. Last time my coupe was there, it was just as I bought it. Although the engine swap is not done (or started) I have do many other upgrades that my make it worthy
Dan McBoost
Supras: ● 87T ● 87T ● 1/2 of an 87T ● 85P
Other: ● 06 Sequoia 4X4 ● 04 Evo8 ● 91 Celica Alltrac ● 90 JDM MR2 GT ● 78 Toyota Pickup
Audis: ● 11 Q7 S line ● 09 A6 Avant 3.0T ● 97 A8Q ● 90 CQ ● 85 4000Q
Supras: ● 87T ● 87T ● 1/2 of an 87T ● 85P
Other: ● 06 Sequoia 4X4 ● 04 Evo8 ● 91 Celica Alltrac ● 90 JDM MR2 GT ● 78 Toyota Pickup
Audis: ● 11 Q7 S line ● 09 A6 Avant 3.0T ● 97 A8Q ● 90 CQ ● 85 4000Q
Re: 1.9 TDI into 90q: Coal Train?
Wow Dana, awesome updates !
Ye your 90 looks really cool once it's washed ! Love it !

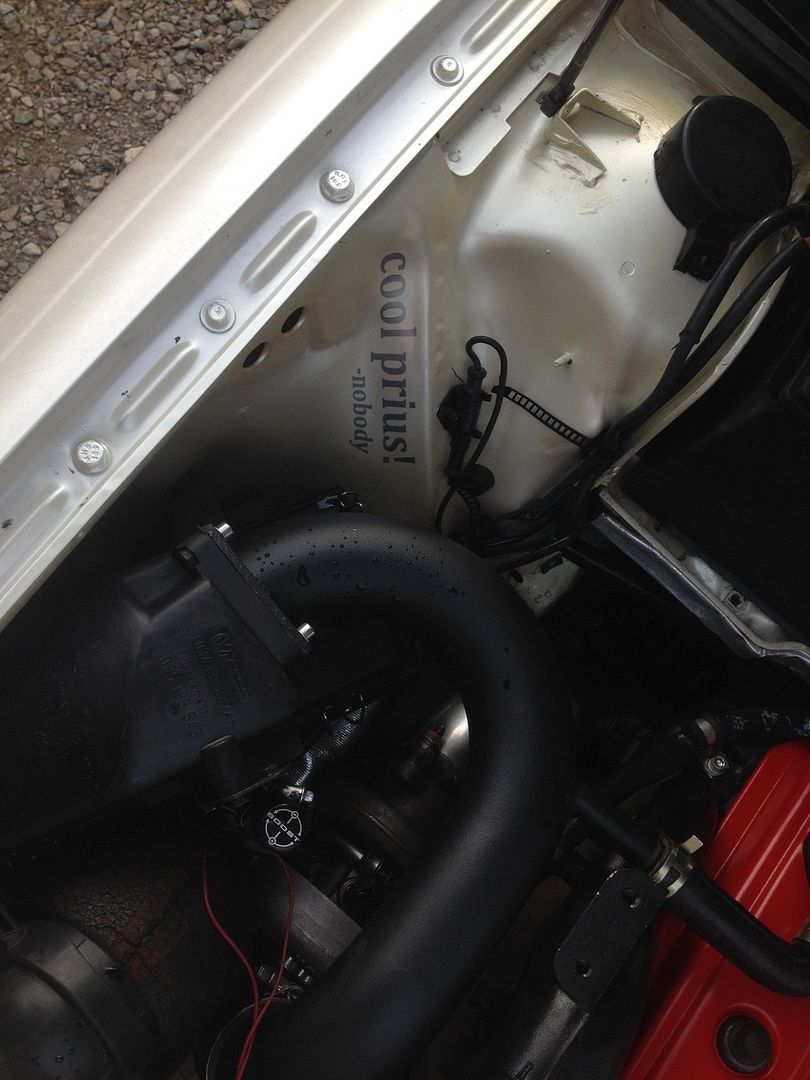

About the smoke ... well ... atleast you got a "cool" prius sticker
Ye your 90 looks really cool once it's washed ! Love it !
About the smoke ... well ... atleast you got a "cool" prius sticker
Re: 1.9 TDI into 90q: Coal Train?
Foscora wrote:Wow Dana, awesome updates !
Ye your 90 looks really cool once it's washed ! Love it !
About the smoke ... well ... atleast you got a "cool" prius sticker
thanks man!
Hopefully the smoke will be less intense. Currently the car has only half of its sensors actually connected, plug I have no idea what the IQ setting is. I'm sure it will smoke under hard accell before the turbo is spooled, but hopefully less than currently once its dialed in.
current:
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
Re: 1.9 TDI into 90q: Coal Train?

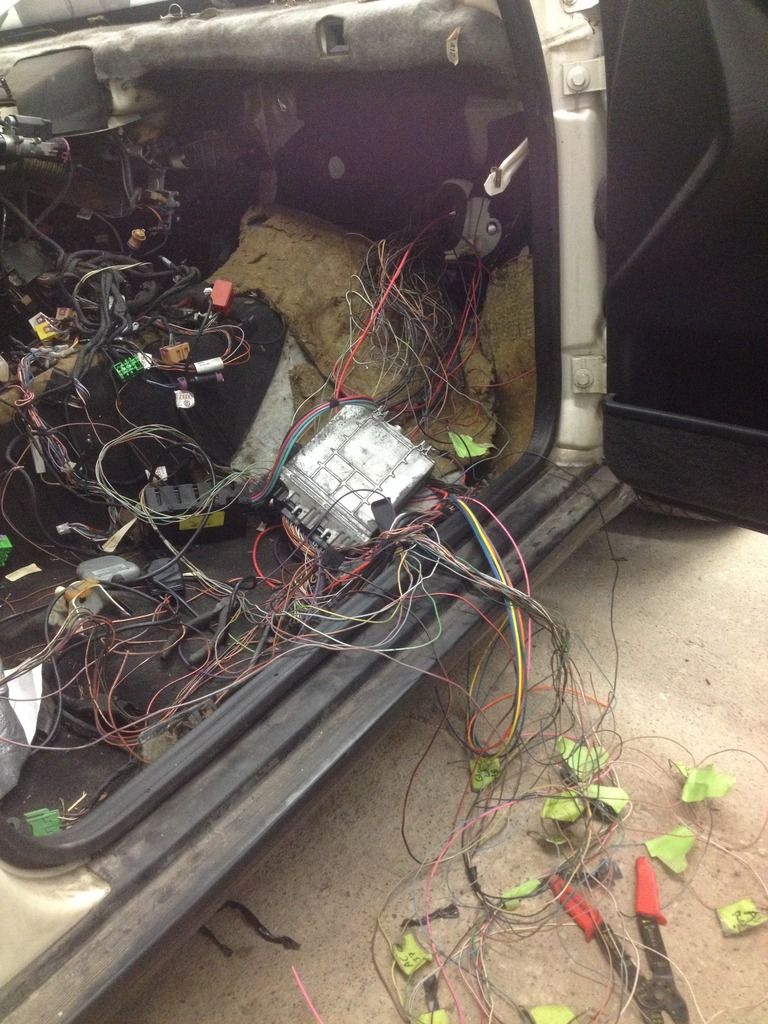

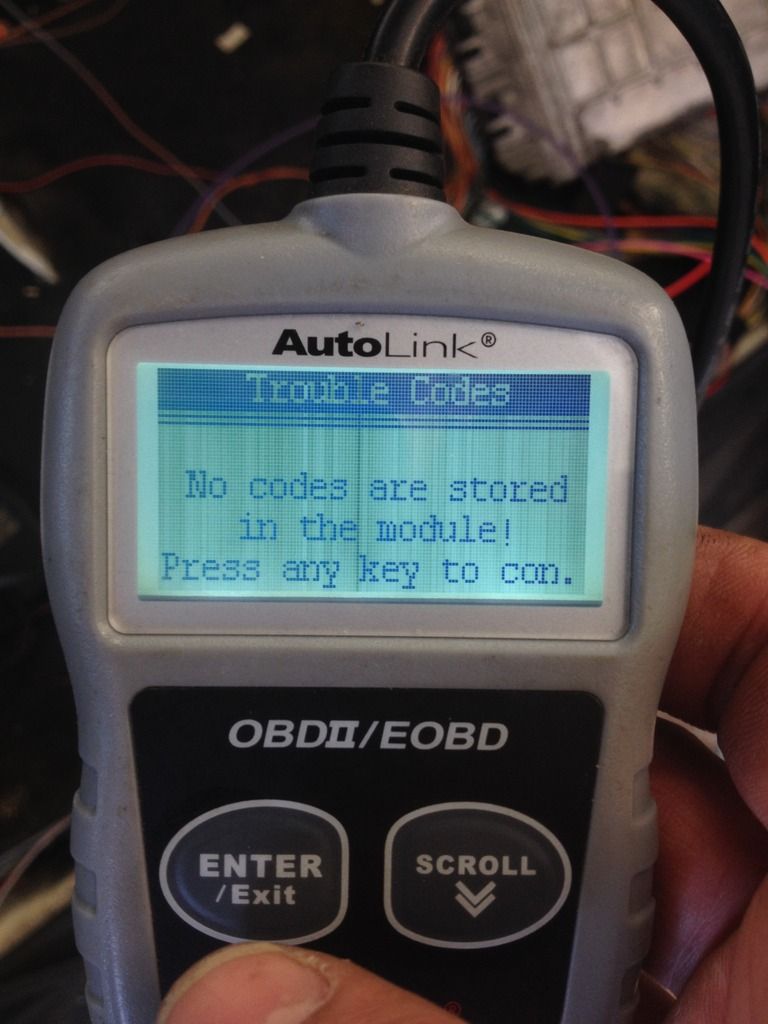

been slogging through the wiring, finally its coming together. The chassis side is pretty much done, got to finalize the mess in the cabin still, but hit a pretty big milestone yesterday. Fully functioning ECU and engine with zero trouble codes.
current:
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
Re: 1.9 TDI into 90q: Coal Train?
You expected "big ass injectors & turbo" maybe ?
-
Dan McBoost
- Posts: 131
- Joined: Wed Mar 23, 2016 5:04 pm
Re: 1.9 TDI into 90q: Coal Train?
awesome, congrats!
Dan McBoost
Supras: ● 87T ● 87T ● 1/2 of an 87T ● 85P
Other: ● 06 Sequoia 4X4 ● 04 Evo8 ● 91 Celica Alltrac ● 90 JDM MR2 GT ● 78 Toyota Pickup
Audis: ● 11 Q7 S line ● 09 A6 Avant 3.0T ● 97 A8Q ● 90 CQ ● 85 4000Q
Supras: ● 87T ● 87T ● 1/2 of an 87T ● 85P
Other: ● 06 Sequoia 4X4 ● 04 Evo8 ● 91 Celica Alltrac ● 90 JDM MR2 GT ● 78 Toyota Pickup
Audis: ● 11 Q7 S line ● 09 A6 Avant 3.0T ● 97 A8Q ● 90 CQ ● 85 4000Q
Re: 1.9 TDI into 90q: Coal Train?

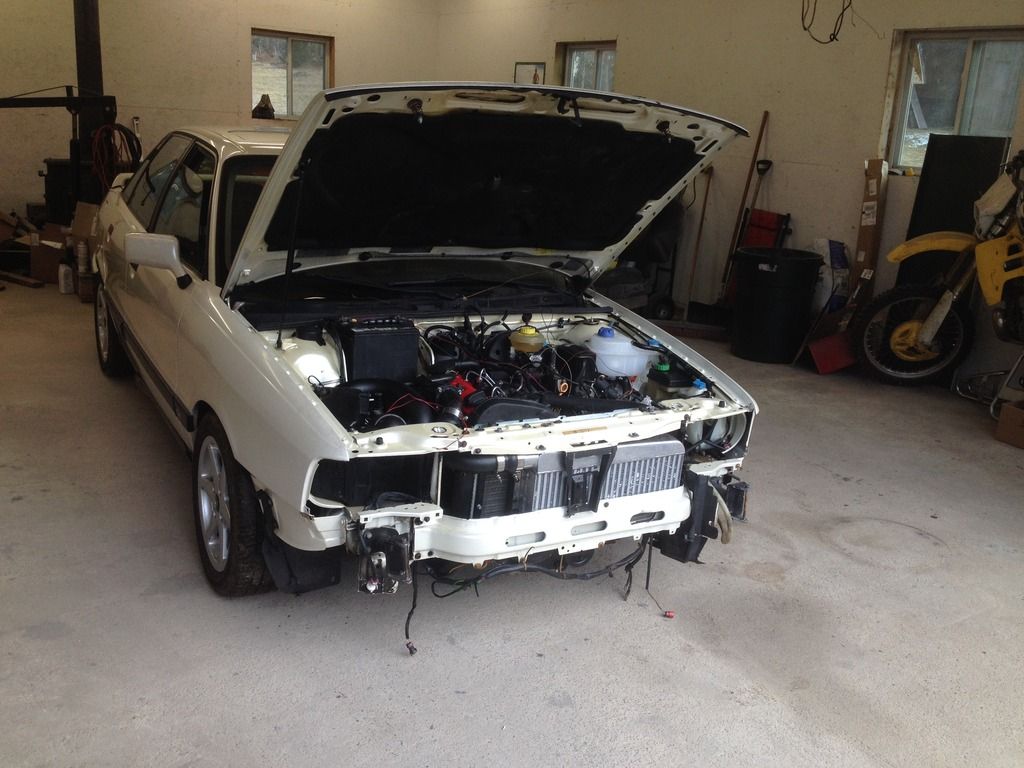

Cleared another hurdle that I have been dreading. I have a working gas pedal.
Obviously the TDI is drive by wire and the audi is cable throttle. Turns out, throttle pedal placement is very important and precise. The pedal needs to sit at the right level to be even with the brake when the brake is applied for proper left foot braking and blip downshift action. Several of my first revisions of using the mk3 pot and the audi pedal proved that is just didn't feel right. Fine for a truck maybe, but i drive hard fast and sideways on the most challenging road in the state every day. That shits got to be right.
The mk3 has this shitty cable operated throttle potentiometer that will not fit under the audi dash and give any kind of reasonable throttle action. I noticed my mk4 has a much better and more compact pedal and apparently they have the same outputs and same number of pins.
mk3 on left, mk4 on right.

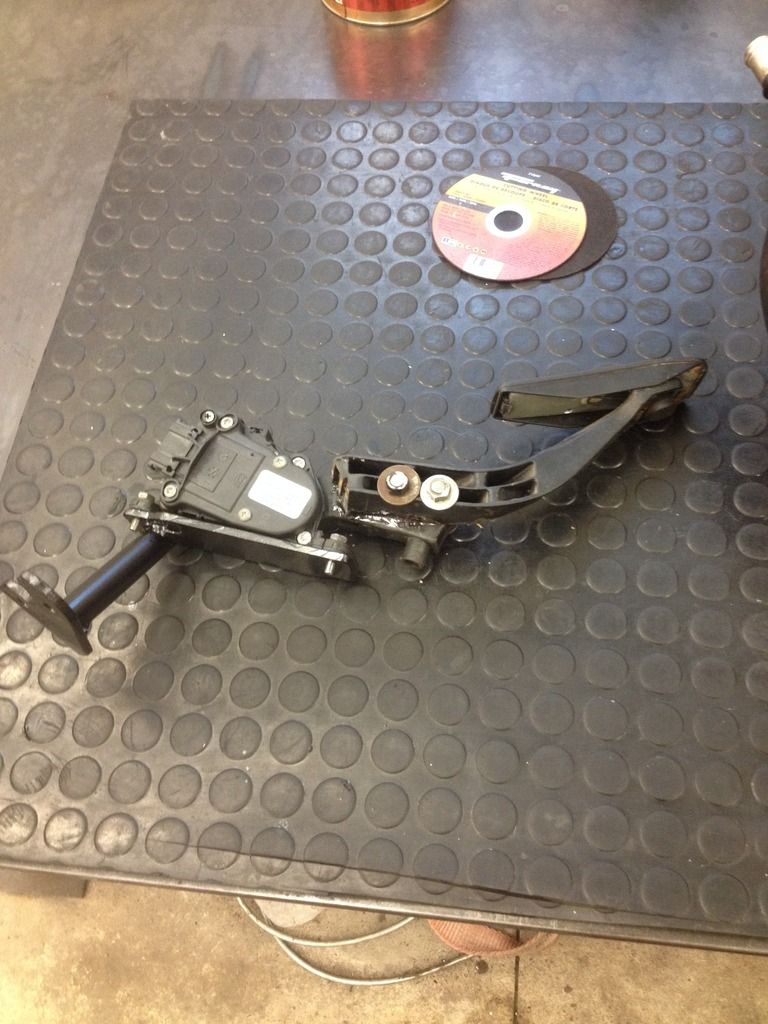

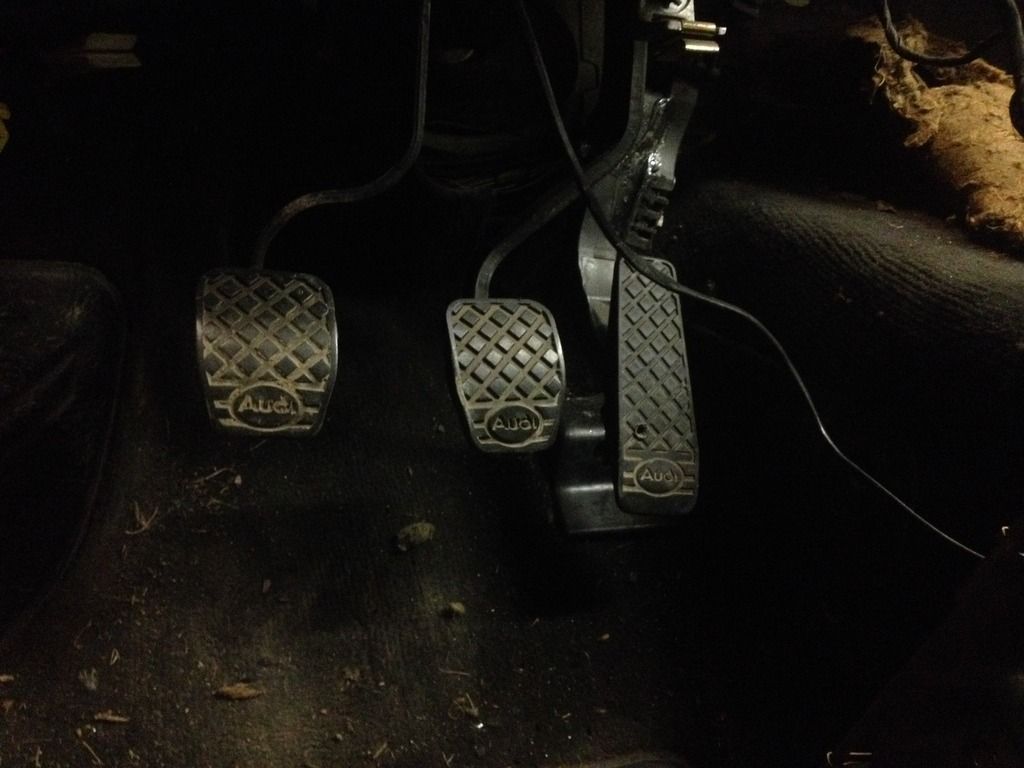

Problem is, the mk4 pedal doesn't really fit right either, so I ended up with a strange hybrid of the original audi lower pedal bonded to the mk4 potentiometer with a custom bracket to mount to the brake booster studs. The result is very good. I carefully measured the stock pedal placement, and this is right on the money.

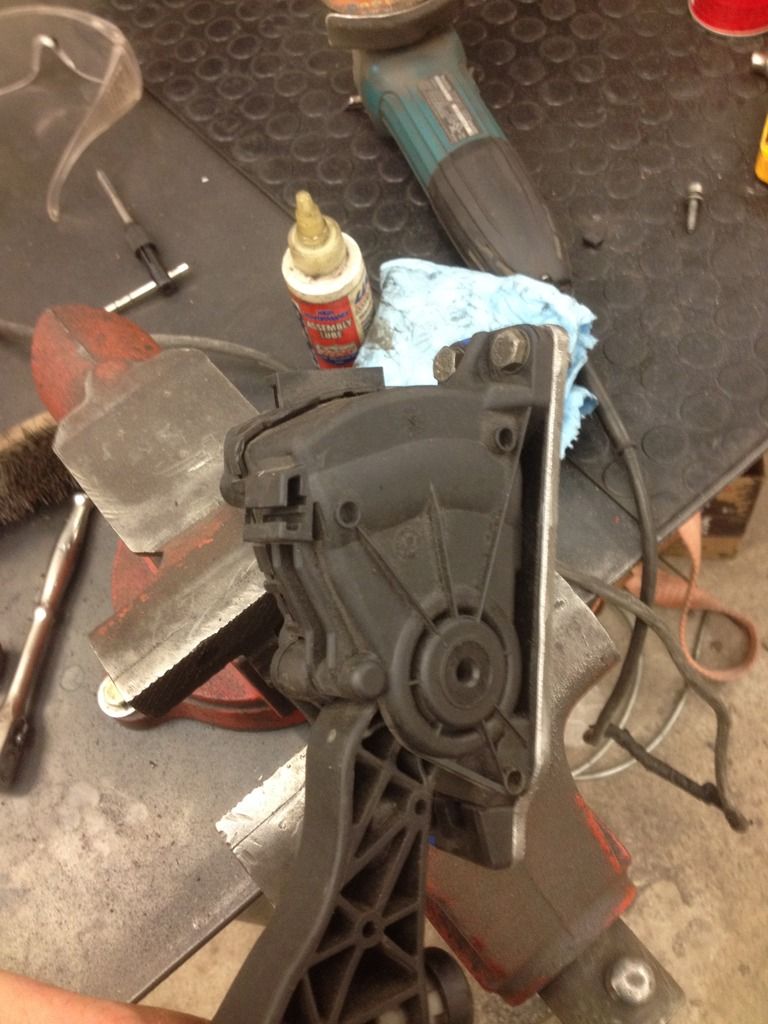

Out comes the same old 3/16" winch plate for some more cannibalization

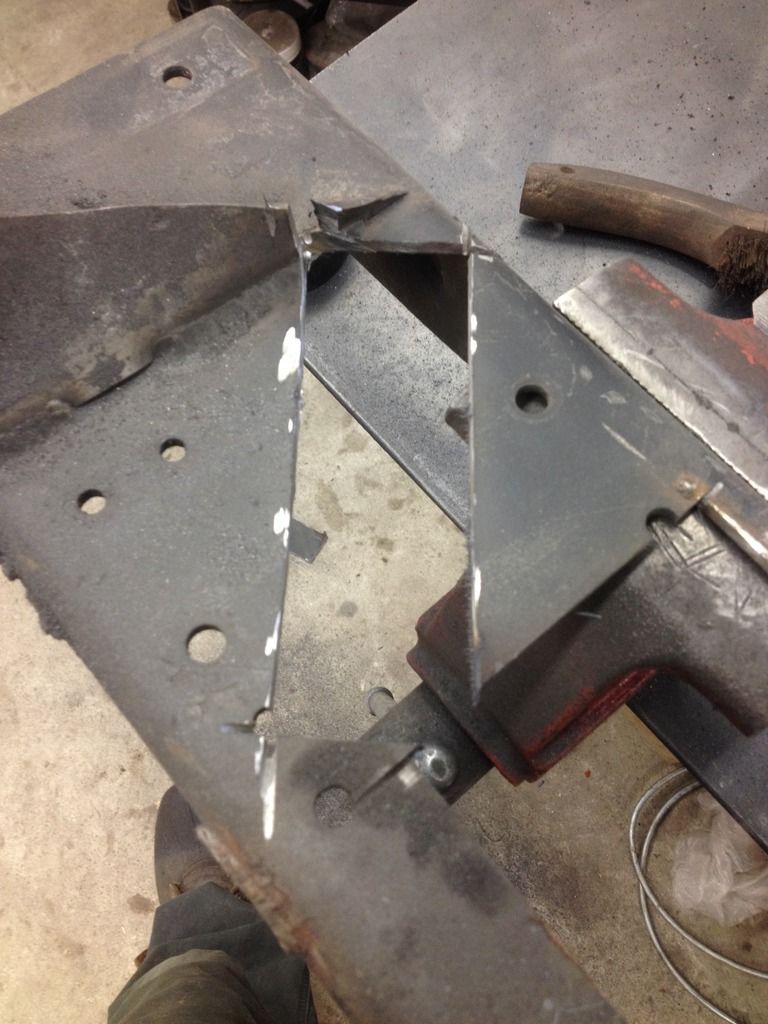

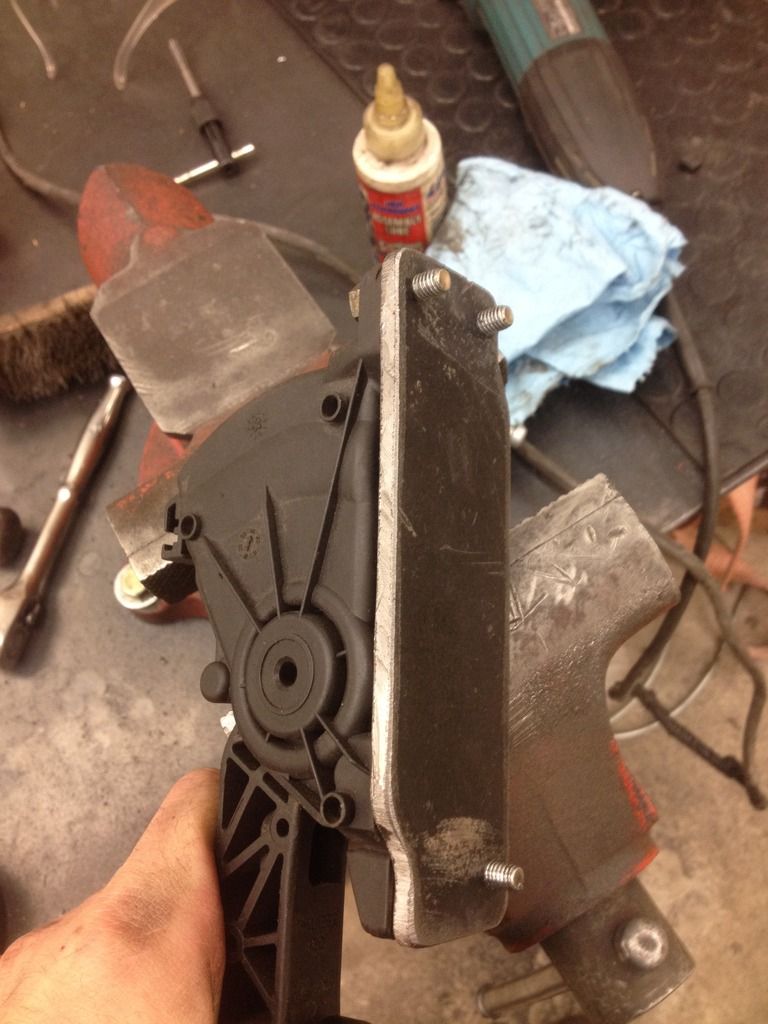

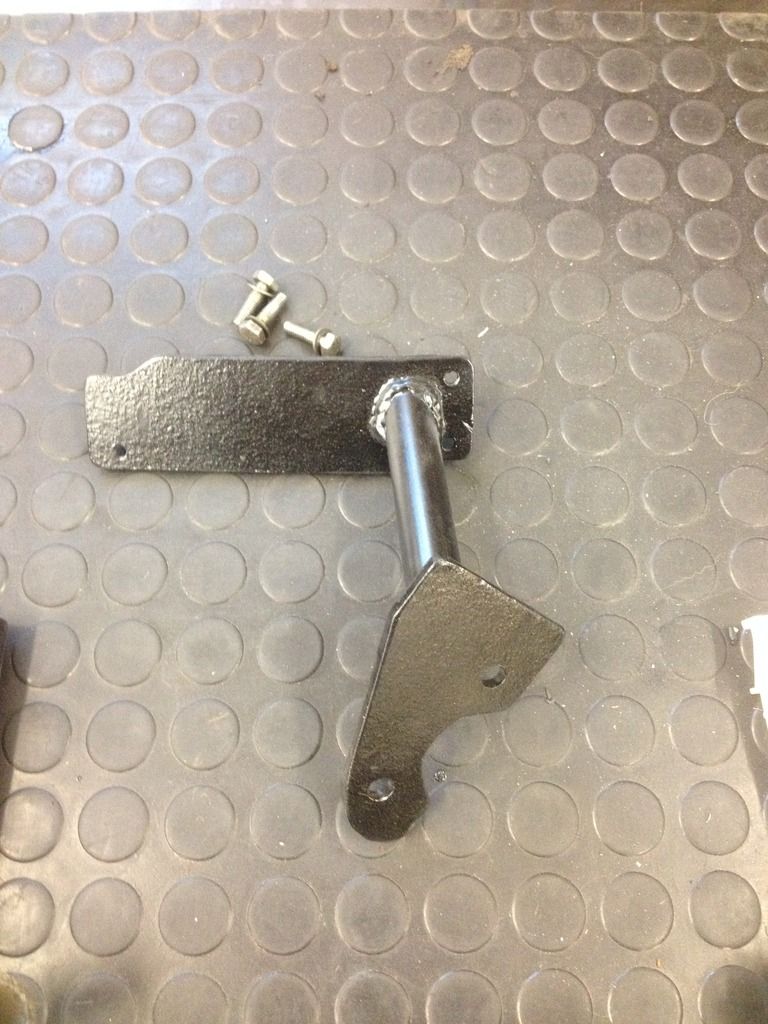

pedal side mount built
mk3 connector ready for de-pinning. It was pretty awesome that I was able to just put these pins in the mk4 plug and it all worked perfectly with no codes or anything.

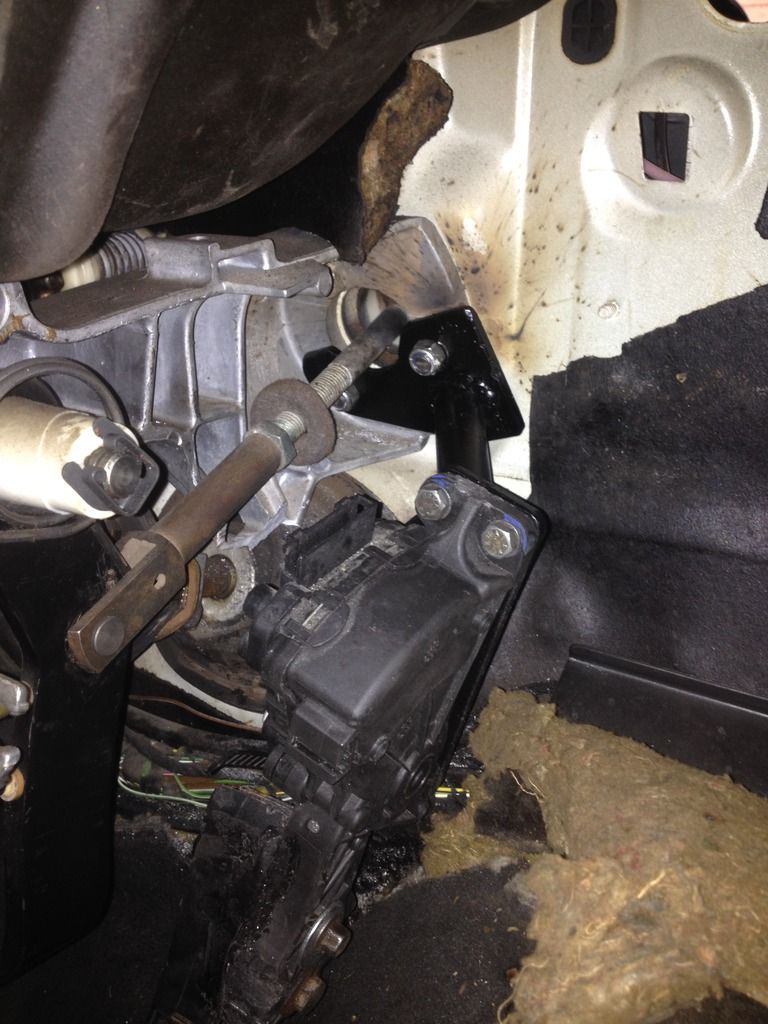

bracket done
Its pretty uggo, but it works great, and you can only see the pedal with the dash in.
Obviously the TDI is drive by wire and the audi is cable throttle. Turns out, throttle pedal placement is very important and precise. The pedal needs to sit at the right level to be even with the brake when the brake is applied for proper left foot braking and blip downshift action. Several of my first revisions of using the mk3 pot and the audi pedal proved that is just didn't feel right. Fine for a truck maybe, but i drive hard fast and sideways on the most challenging road in the state every day. That shits got to be right.
The mk3 has this shitty cable operated throttle potentiometer that will not fit under the audi dash and give any kind of reasonable throttle action. I noticed my mk4 has a much better and more compact pedal and apparently they have the same outputs and same number of pins.
mk3 on left, mk4 on right.
Problem is, the mk4 pedal doesn't really fit right either, so I ended up with a strange hybrid of the original audi lower pedal bonded to the mk4 potentiometer with a custom bracket to mount to the brake booster studs. The result is very good. I carefully measured the stock pedal placement, and this is right on the money.
Out comes the same old 3/16" winch plate for some more cannibalization
pedal side mount built
mk3 connector ready for de-pinning. It was pretty awesome that I was able to just put these pins in the mk4 plug and it all worked perfectly with no codes or anything.
bracket done
Its pretty uggo, but it works great, and you can only see the pedal with the dash in.
current:
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
-
audifreakjim
- Posts: 2142
- Joined: Sun Mar 03, 2013 3:00 pm
Re: 1.9 TDI into 90q: Coal Train?
Nice work!
Re: 1.9 TDI into 90q: Coal Train?
also, not sure why people don't like wiring, its so fun.....
current:
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
Re: 1.9 TDI into 90q: Coal Train?
dana wrote:also, not sure why people don't like wiring, its so fun.....
I know that visual all too well..
"If you can't find one, make one"
Dallastown, PA
1991 Audi 80 quattro (20vt project)
1991 Audi Coupe Quattro (project: my first 20v)
2007 Mitsubishi Raider(Dakota in disguise)
2019 Chevy Cruze RS hatch (wife's little red sporty car)
Dallastown, PA
1991 Audi 80 quattro (20vt project)
1991 Audi Coupe Quattro (project: my first 20v)
2007 Mitsubishi Raider(Dakota in disguise)
2019 Chevy Cruze RS hatch (wife's little red sporty car)
Re: 1.9 TDI into 90q: Coal Train?
Badass work on the pedal metal!
Find me on Instagram @pry4sno
|| 2010 Golf Sportwagen TDI /// #farmenwagen
|| 2002 Dodge Ram 2500 24vt 4x4 #bertancummins
|| 1992 80 quattro 20v /// Eventual AAN'd Winter Sled
|| 1990 Coupe quattro /// Because Racecar
|| 2010 Golf Sportwagen TDI /// #farmenwagen
|| 2002 Dodge Ram 2500 24vt 4x4 #bertancummins
|| 1992 80 quattro 20v /// Eventual AAN'd Winter Sled
|| 1990 Coupe quattro /// Because Racecar
Re: 1.9 TDI into 90q: Coal Train?
thanks man, for some reason I wasn't looking forward to making that work, turns out it wasnt too bad.
current:
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
Re: 1.9 TDI into 90q: Coal Train?
dana wrote:thanks man, for some reason I wasn't looking forward to making that work, turns out it wasnt too bad.
I thought the same thing when I was done my B6 gas pedal.
Looking good!
-Shawn C.
2001 S4 6spd Avant blk/blk - stock daily
2002 01E B6 A4 Built FYF, Built 1.8T, HX35 ~330whp
1989 MC-1 200 Avant- MS1 -Gone but will never forget her lessons
1987 5ktq Sedan - Best $500 beater ever
2001 S4 6spd Avant blk/blk - stock daily
2002 01E B6 A4 Built FYF, Built 1.8T, HX35 ~330whp
1989 MC-1 200 Avant- MS1 -Gone but will never forget her lessons
1987 5ktq Sedan - Best $500 beater ever
