So how do I start this long awaited "update"? I guess ill go in order of pics that were taken.

SO i got myself a stg 2 "xtreme" SB clutch. highest rated full face disc they have. Feramic/Feramic. Also being coupled with the stg 3 SB PP.

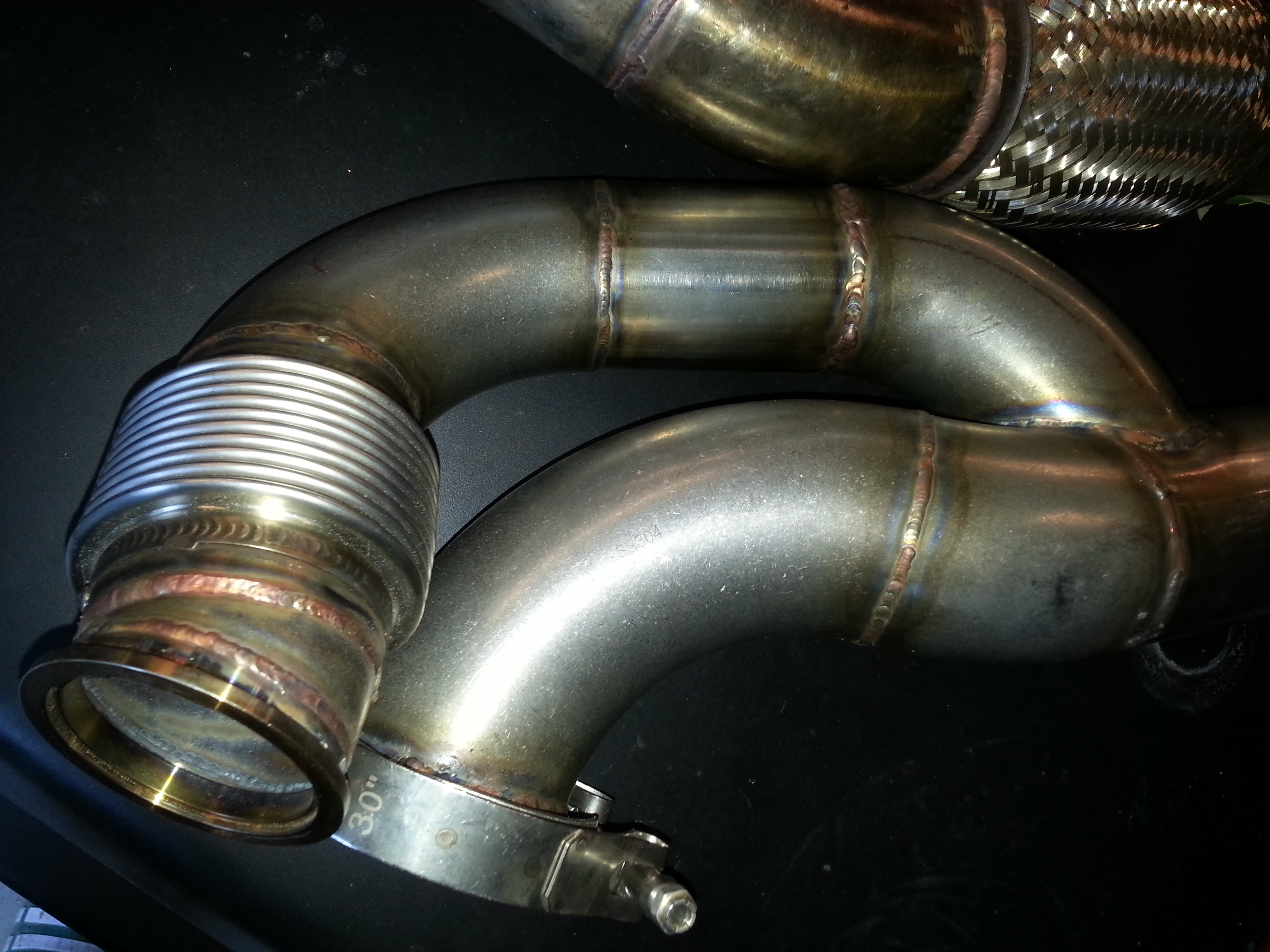

SB stg 2 extreme disc


Ryan and myself finished up the DP and 90% of the exhaust. also making the center section 3", which it was 2.5 before. Then the Van-jen clamp was finished and cold side got coated. Then the injector leads were repinned for ev1 connectors.

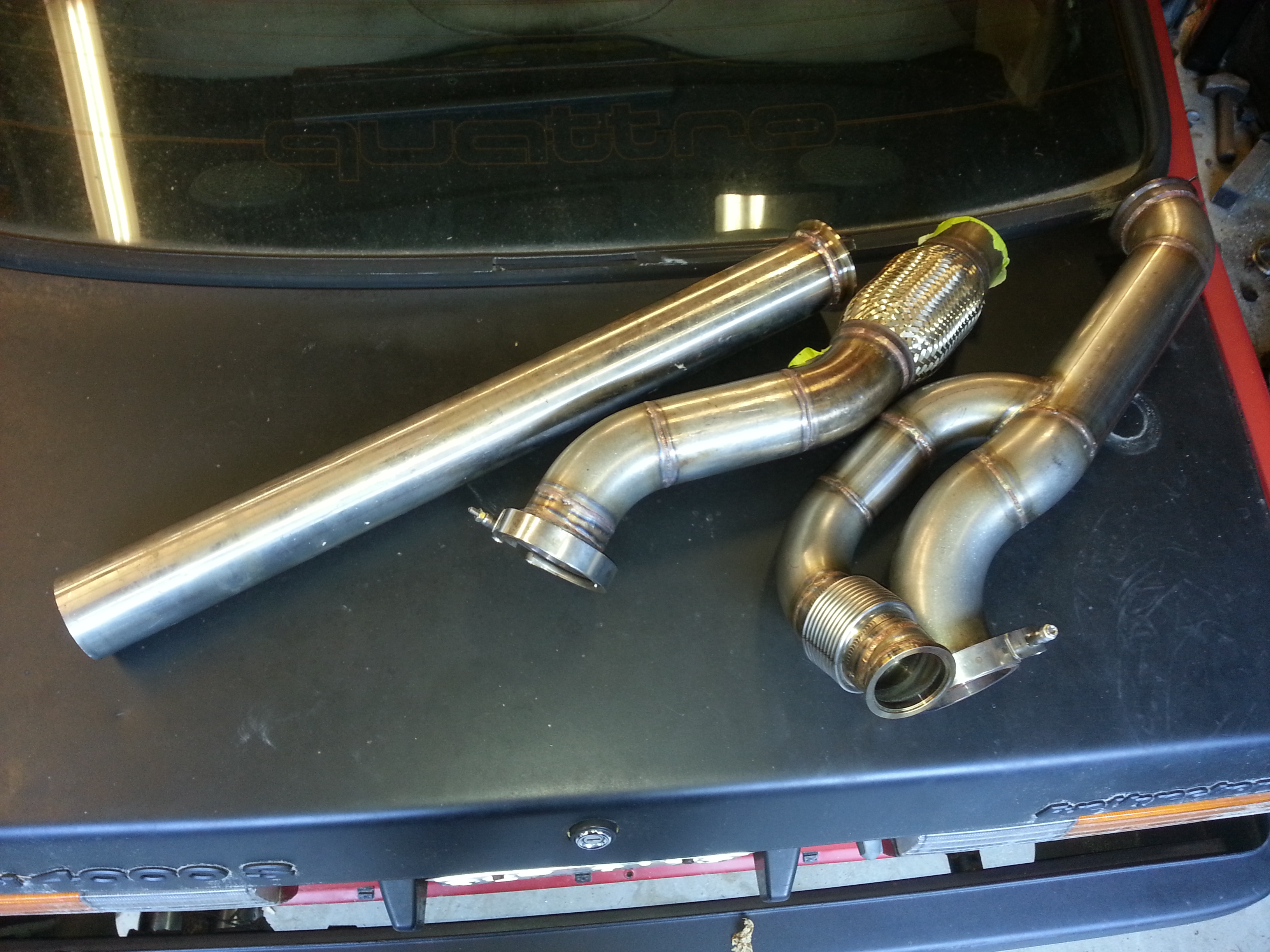

DP action

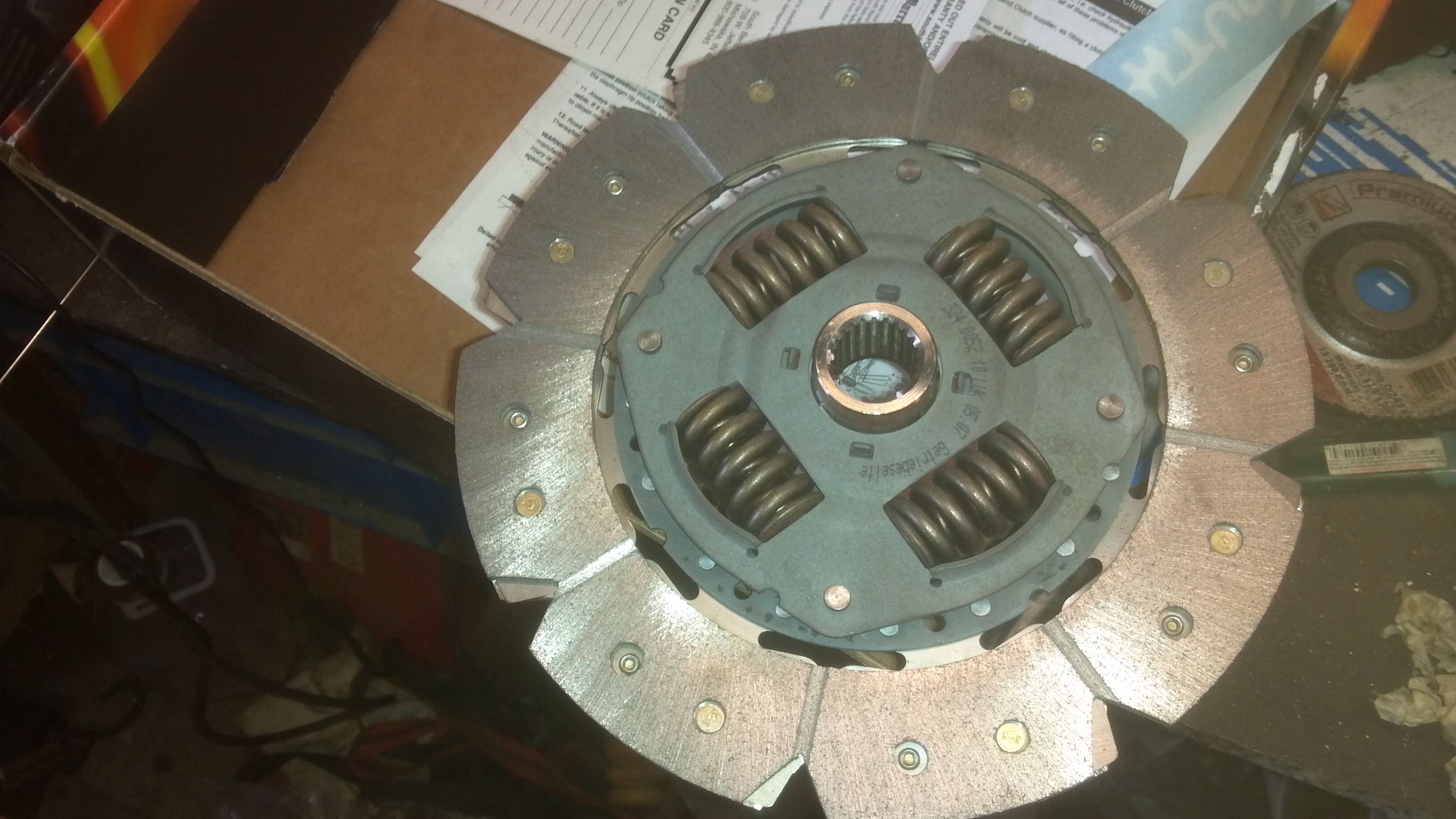

DP for days

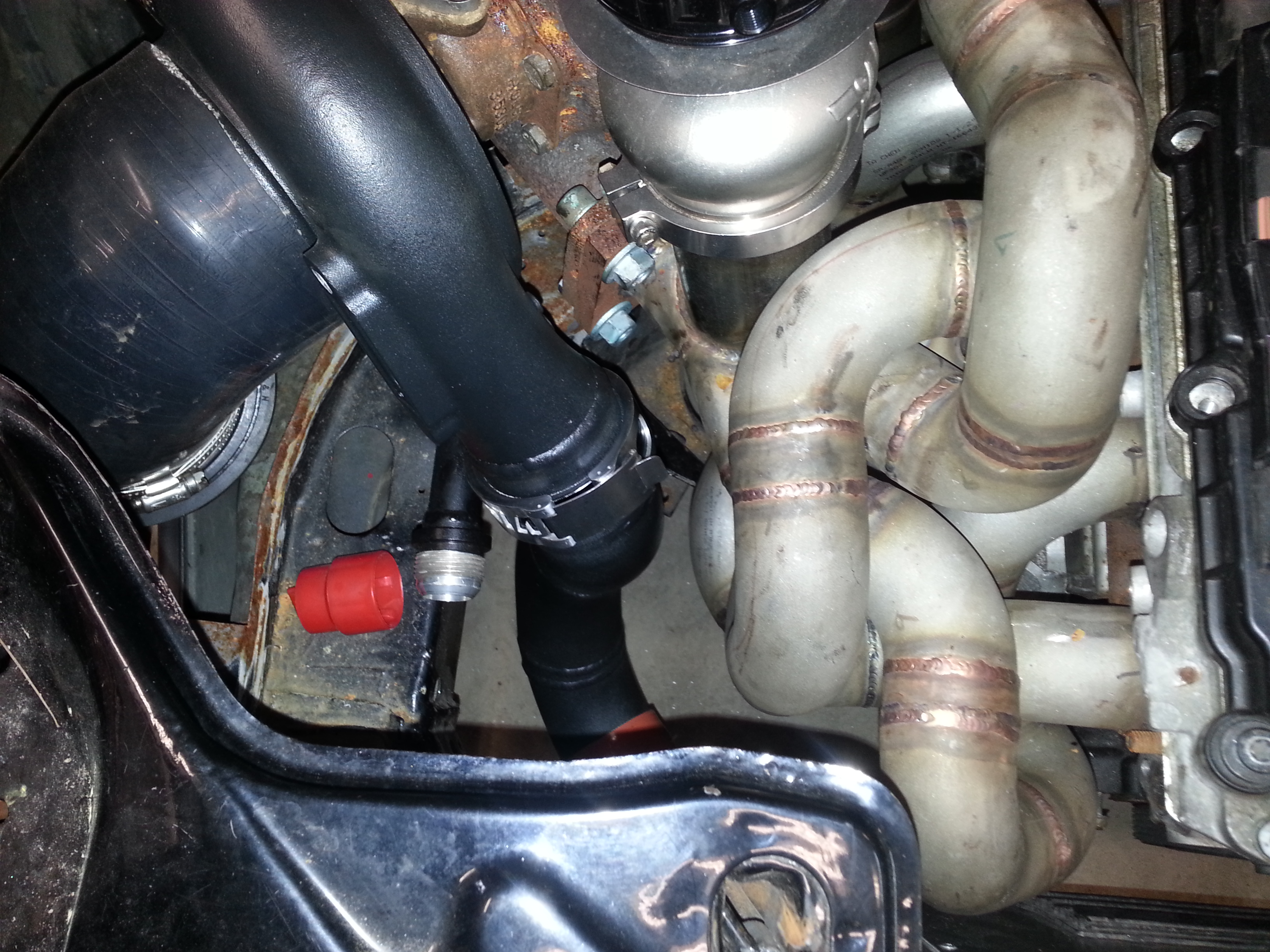

vanjen clamp final and turbo housing coated.

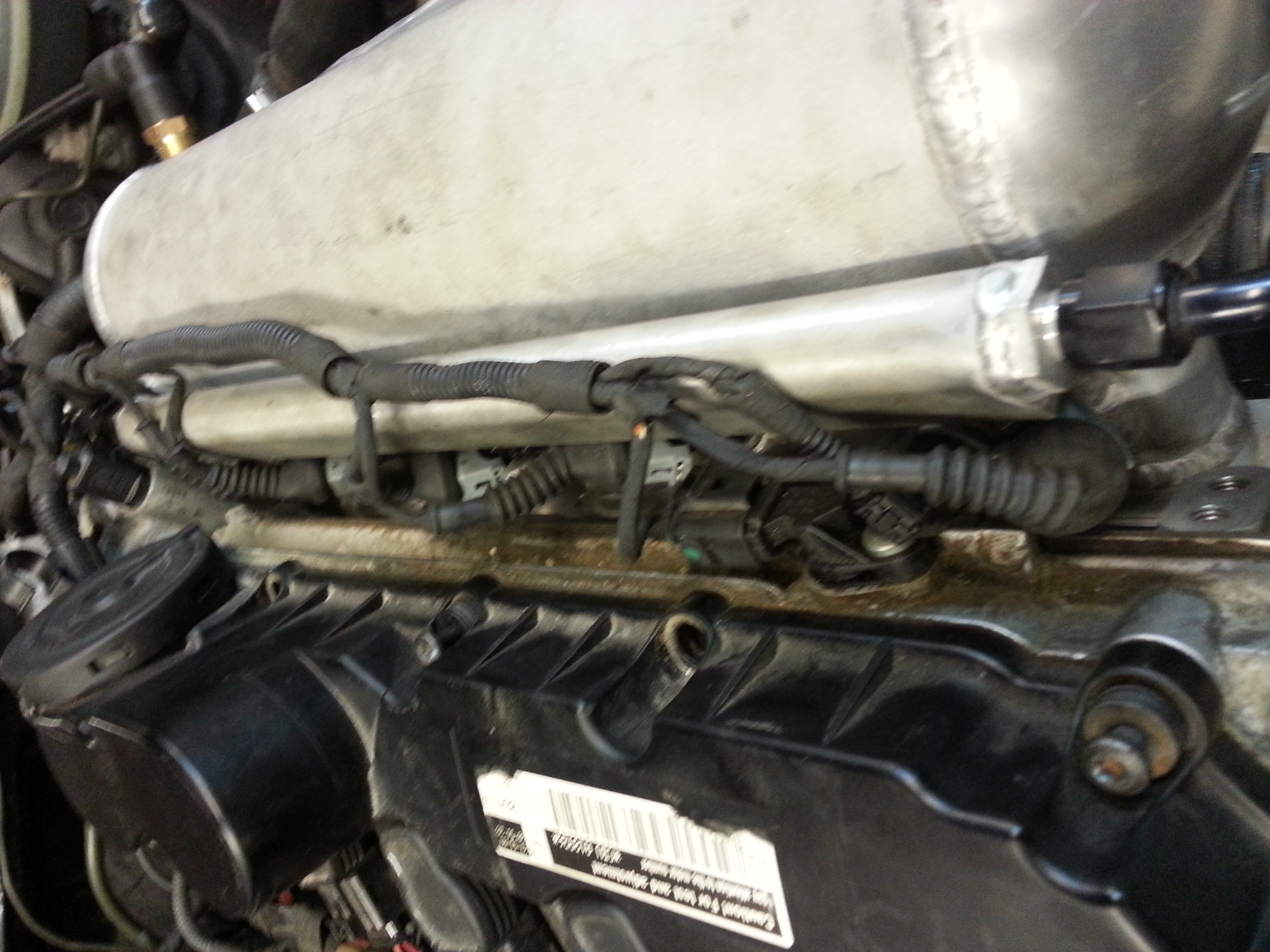

Injectors repinned for ev1


next installment incoming...

[glibobbo21]

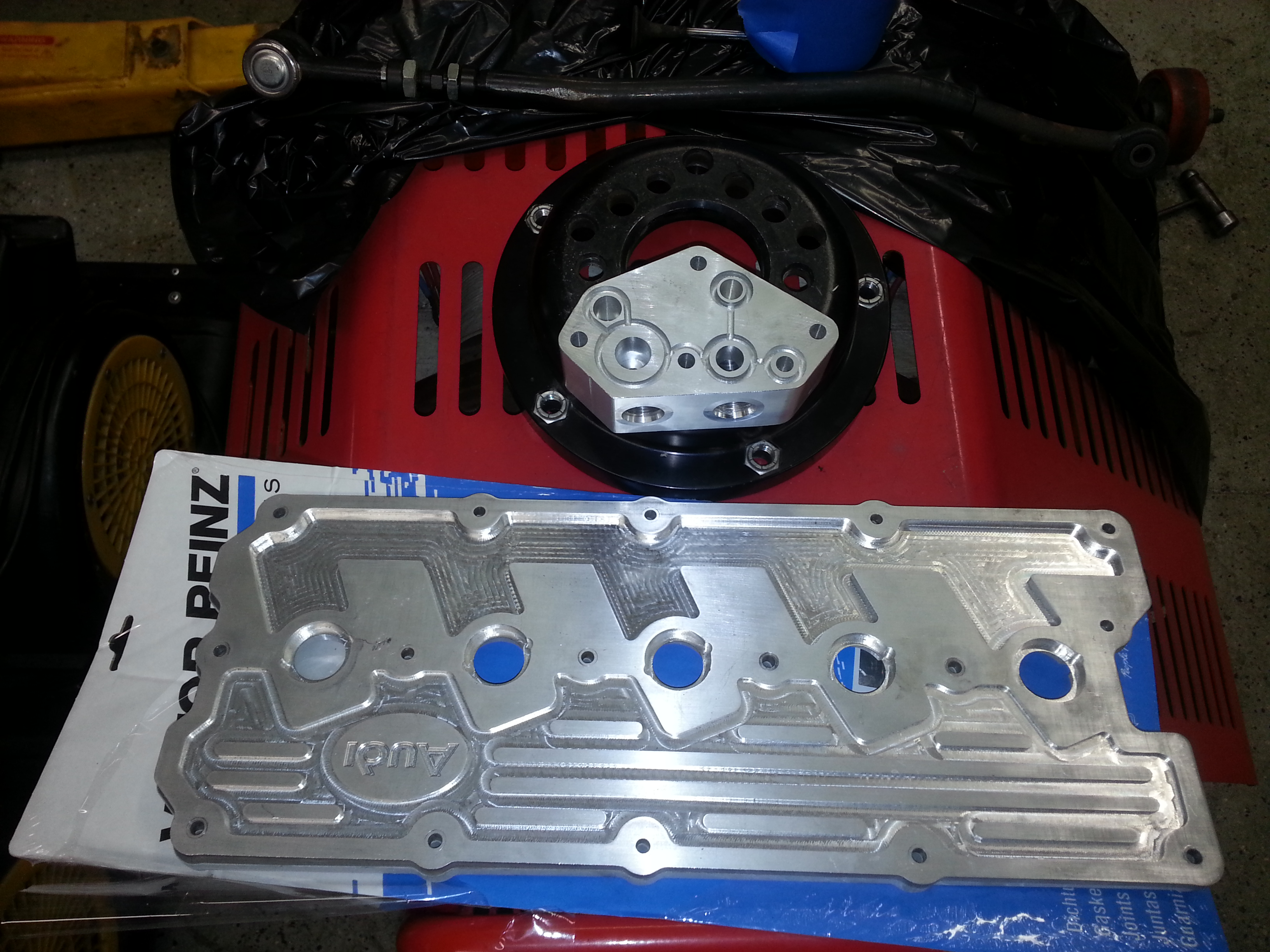

So Ive been dying to get more fancy parts. Thanks to Hank here are a couple Ive been missing.

some stuff Ive been watiing to get my hands on...


pan teaser


more tease


So what do you do with expensive custom one off parts...cut holes in them!
This was an early pan that wasnt finished(no drain plug\turbo drain)

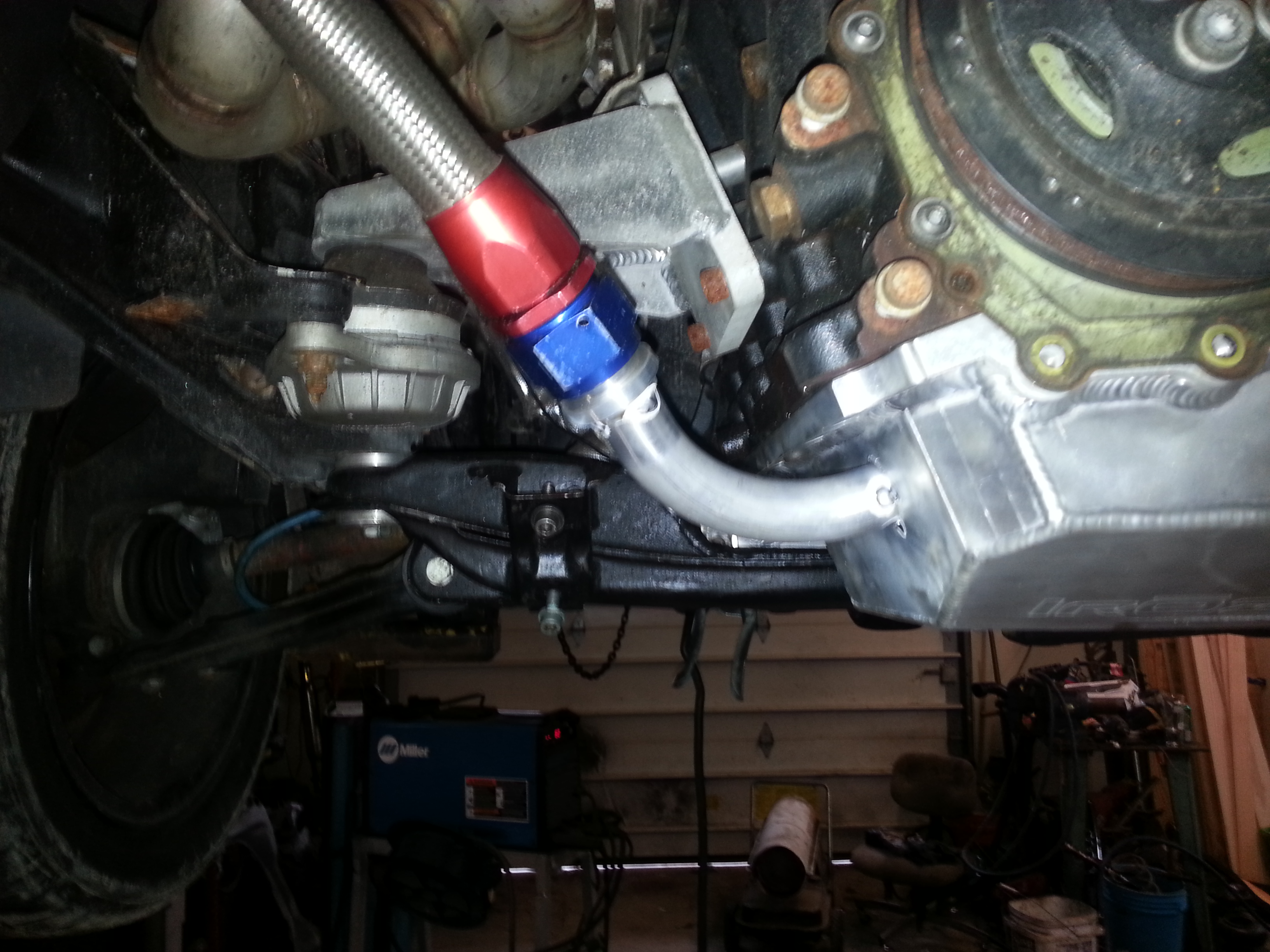

turbo oil drain

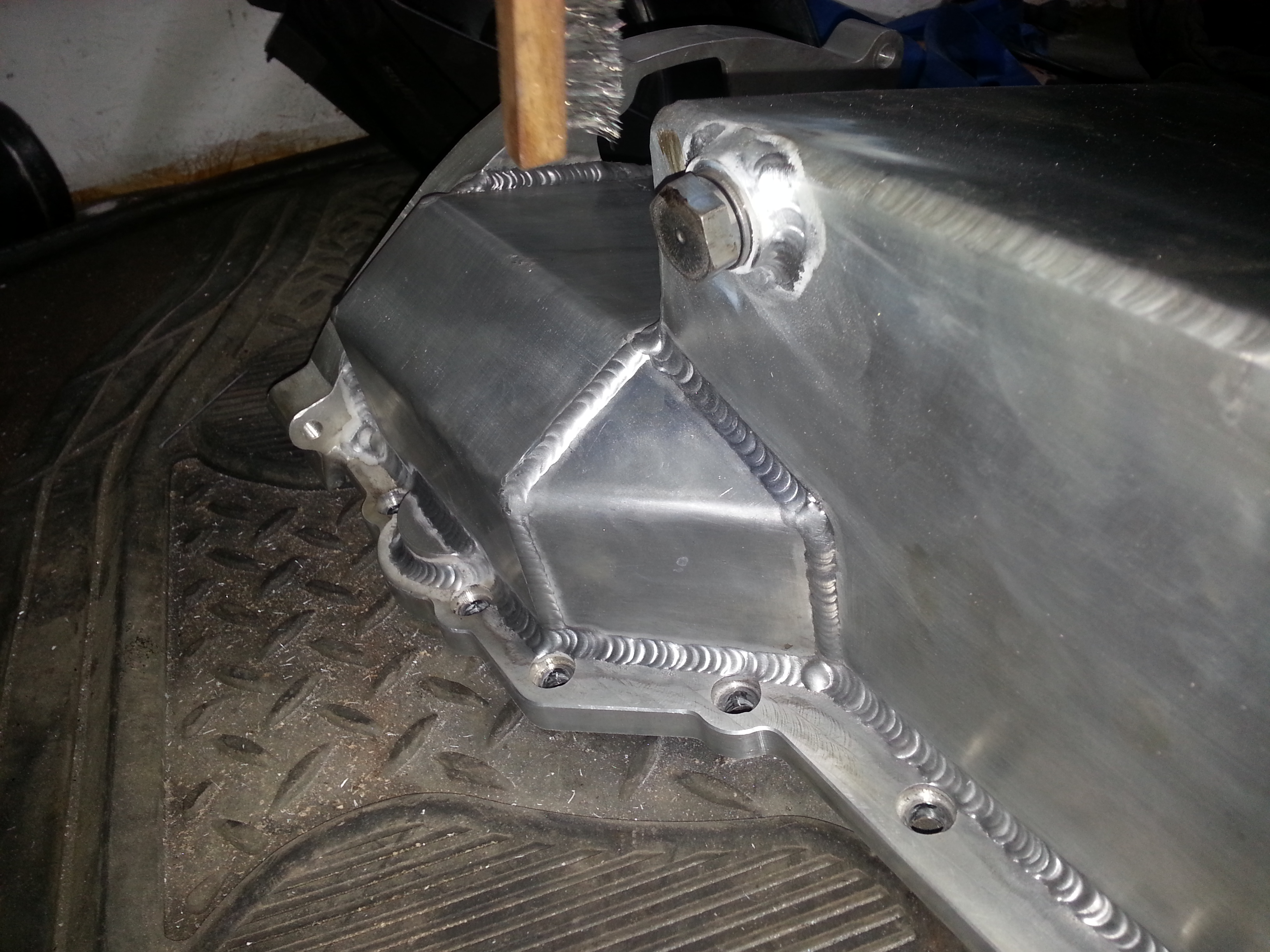

drain plug


[glibobbo21]

Some boring stuff but all has to be done...

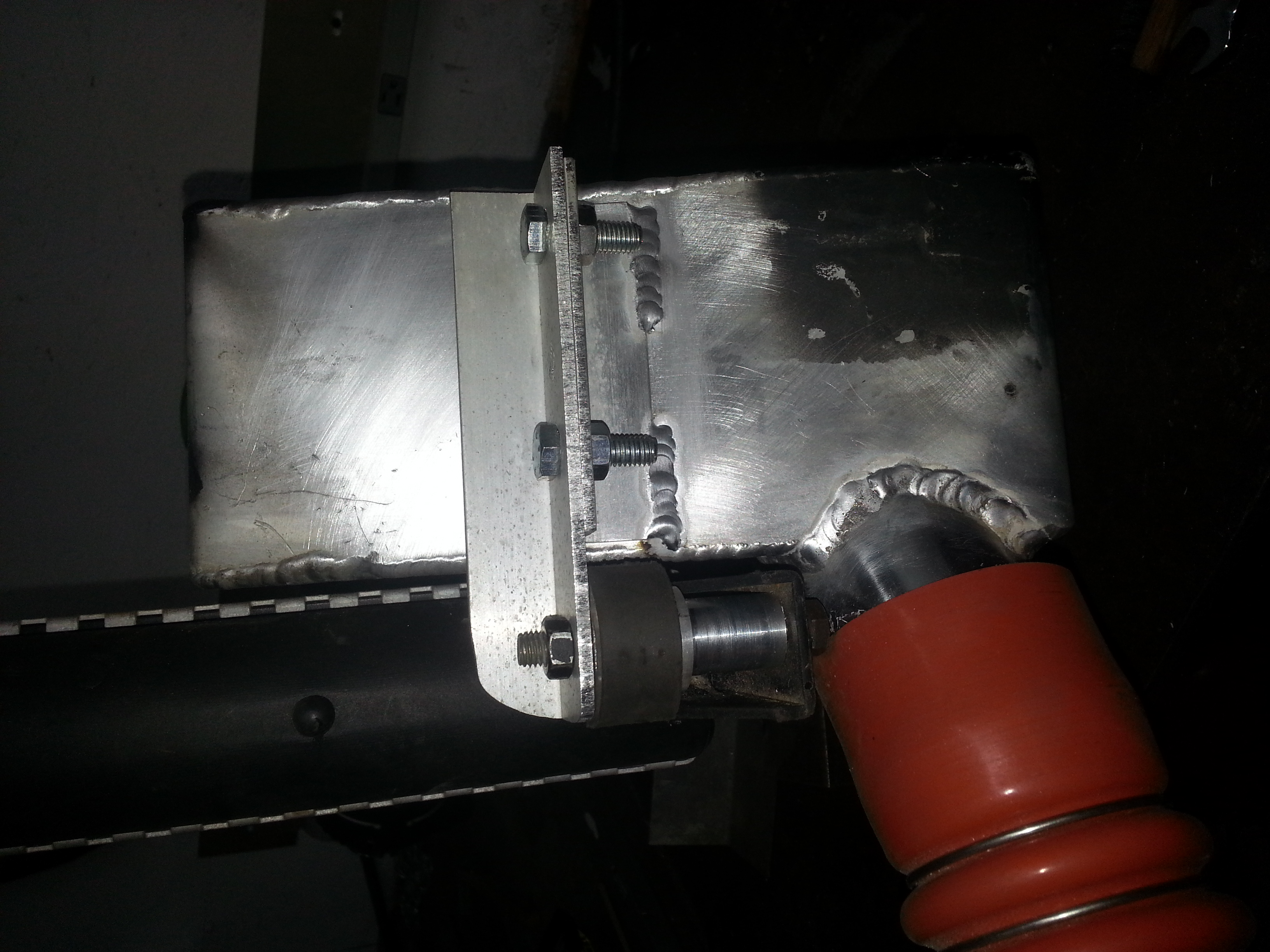

boring rad mounts

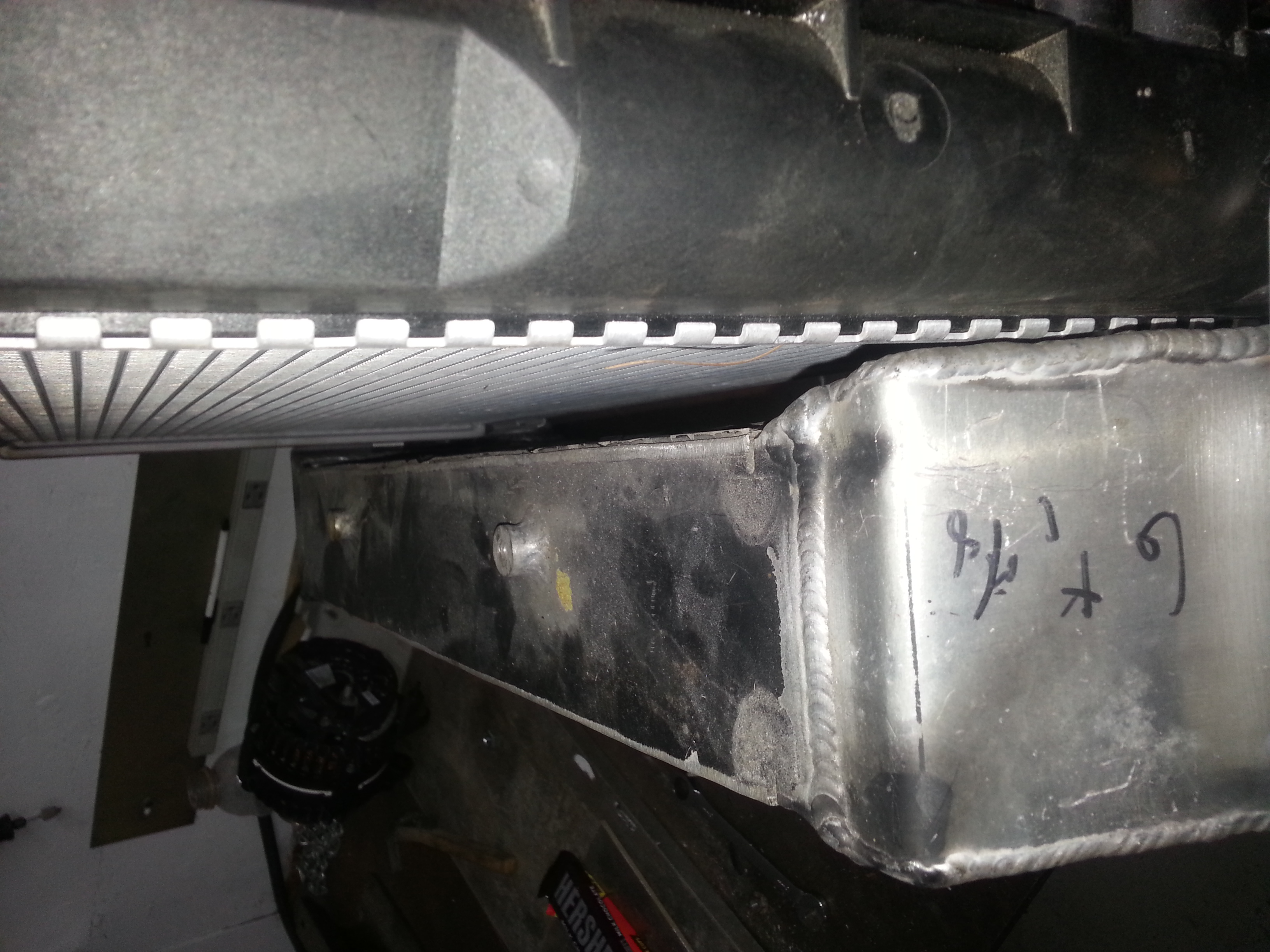

rad clearance to IC

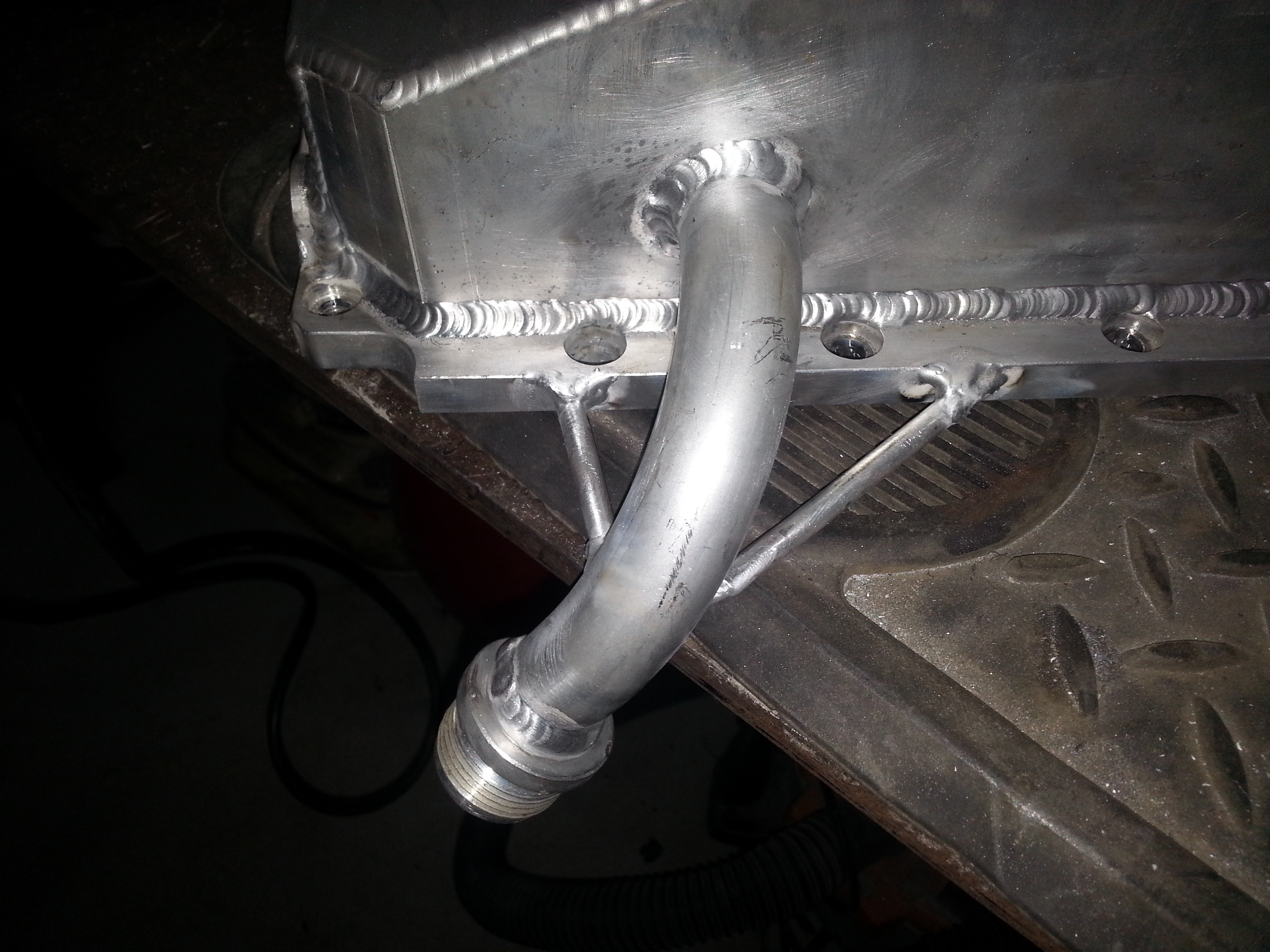

turbo drain braces


breather

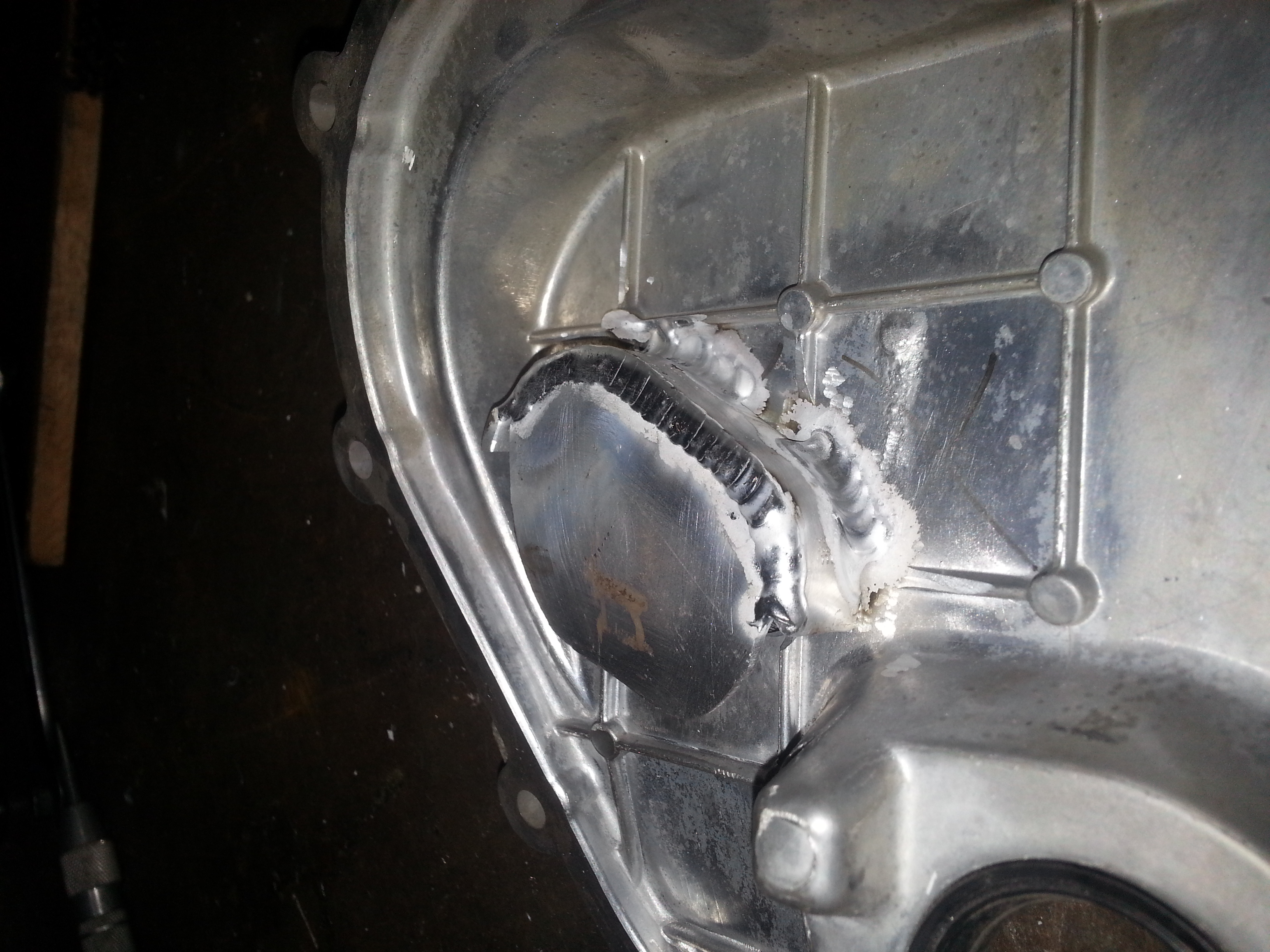

baffle.


[glibobbo21]

Im done for the day. Lots of progress was made and maybe I'll go snap some more pics tonight of my low miles head(28k). I removed it from my 08 07k longblock I had and prepped for installing on my now almost finished block. Heres some pics

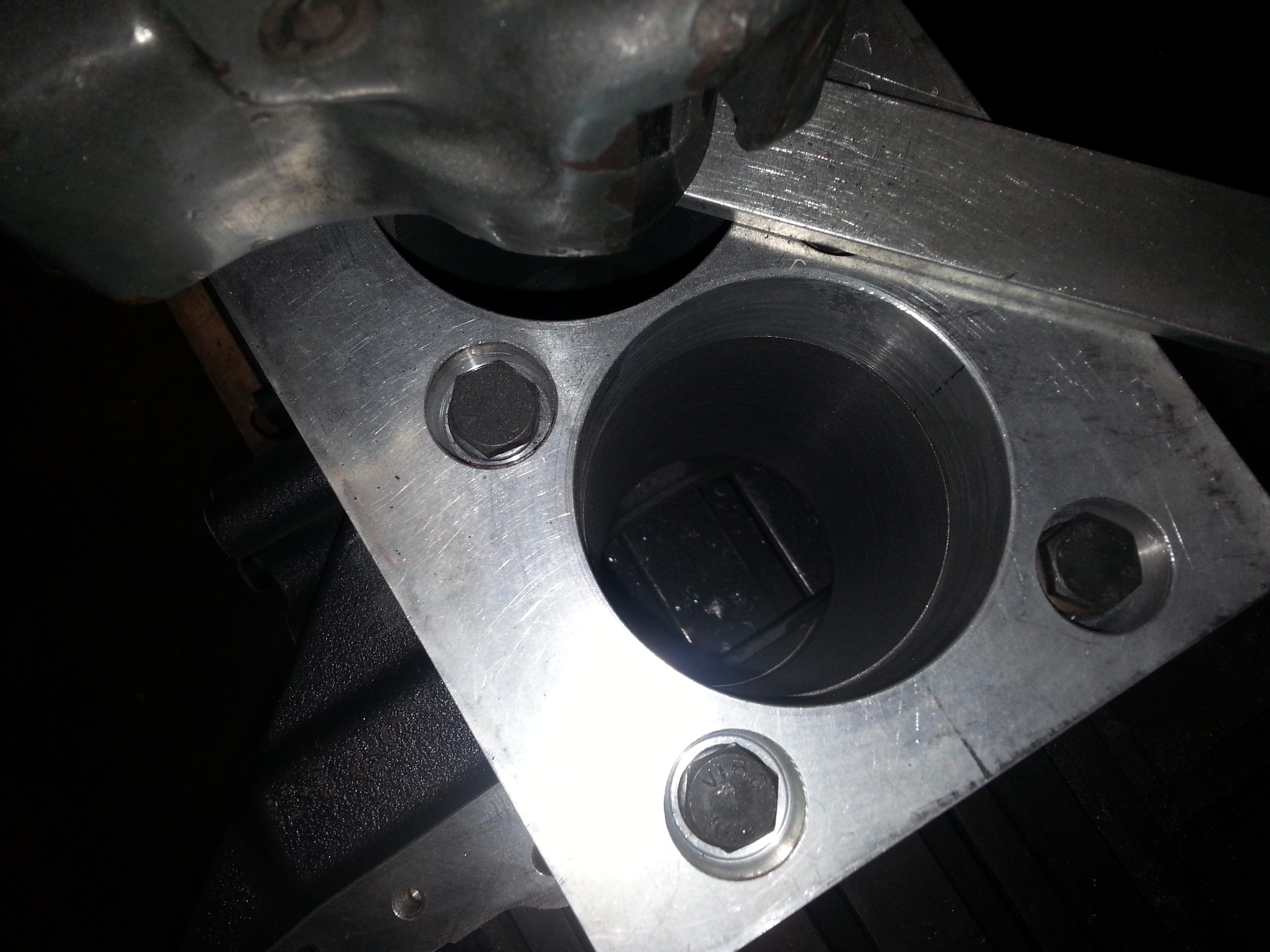

bored to 83mm

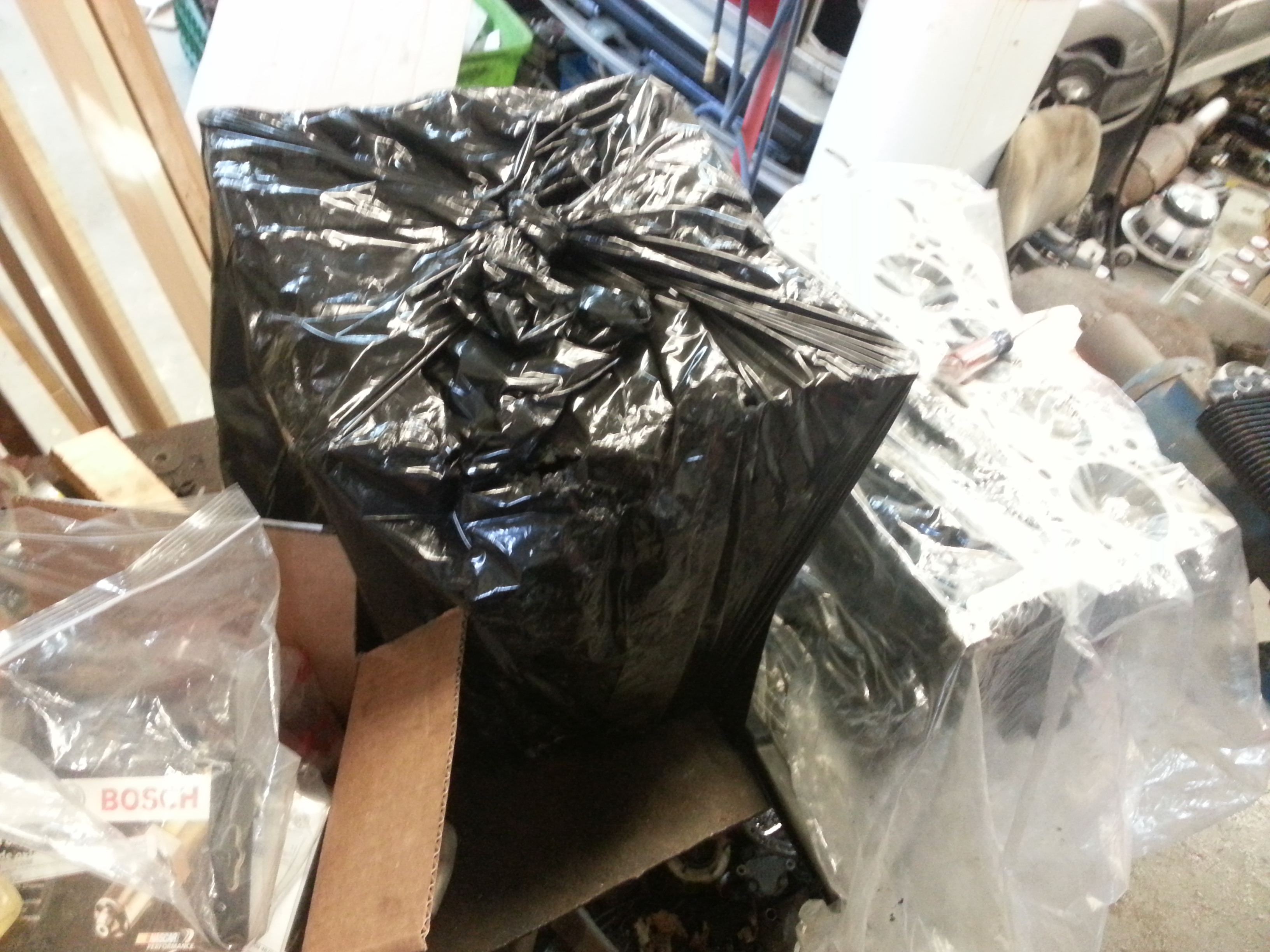

aw theyre cute together! Marcs and mine

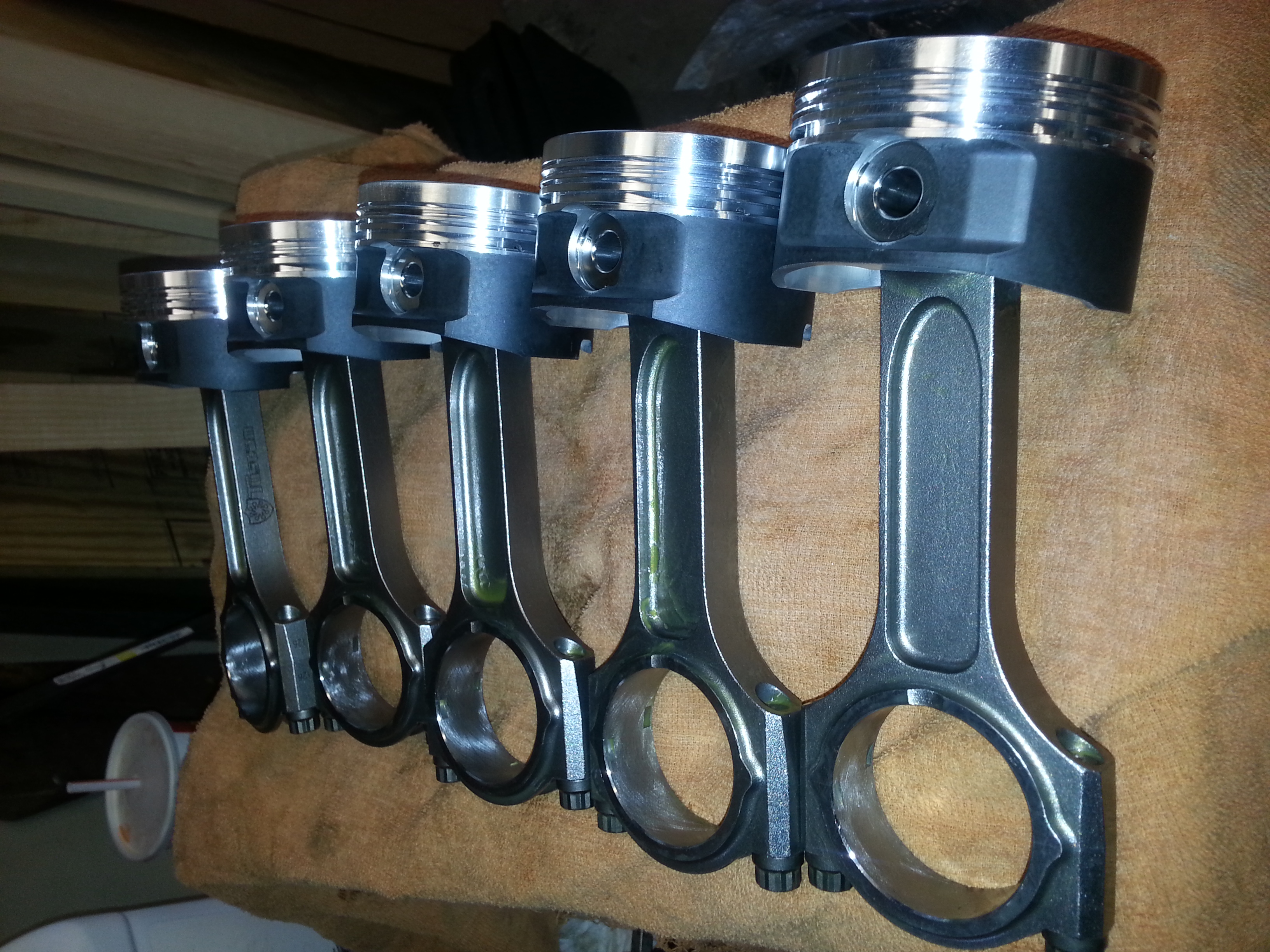

rods\pistons done. just rings now

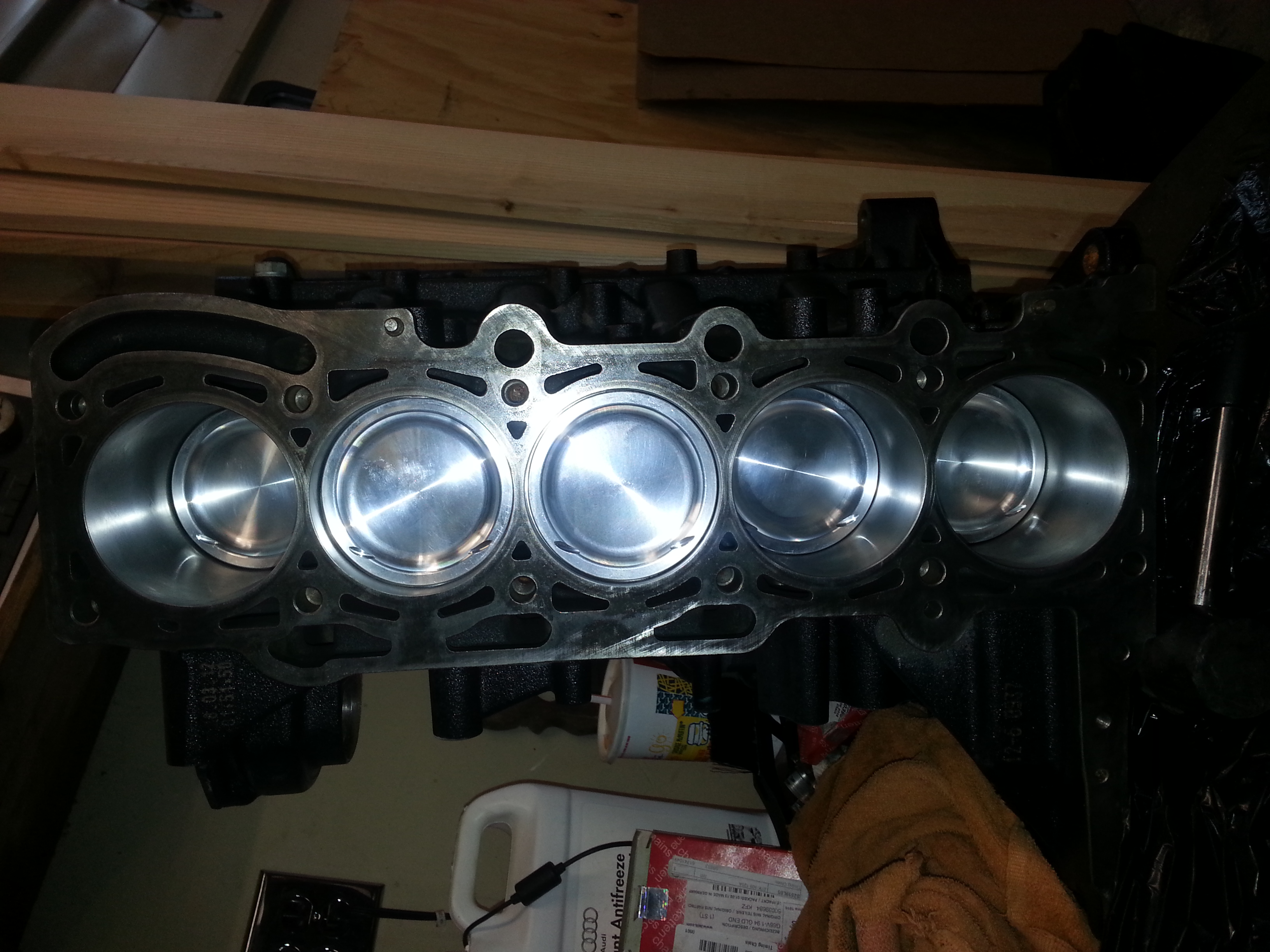

voila!

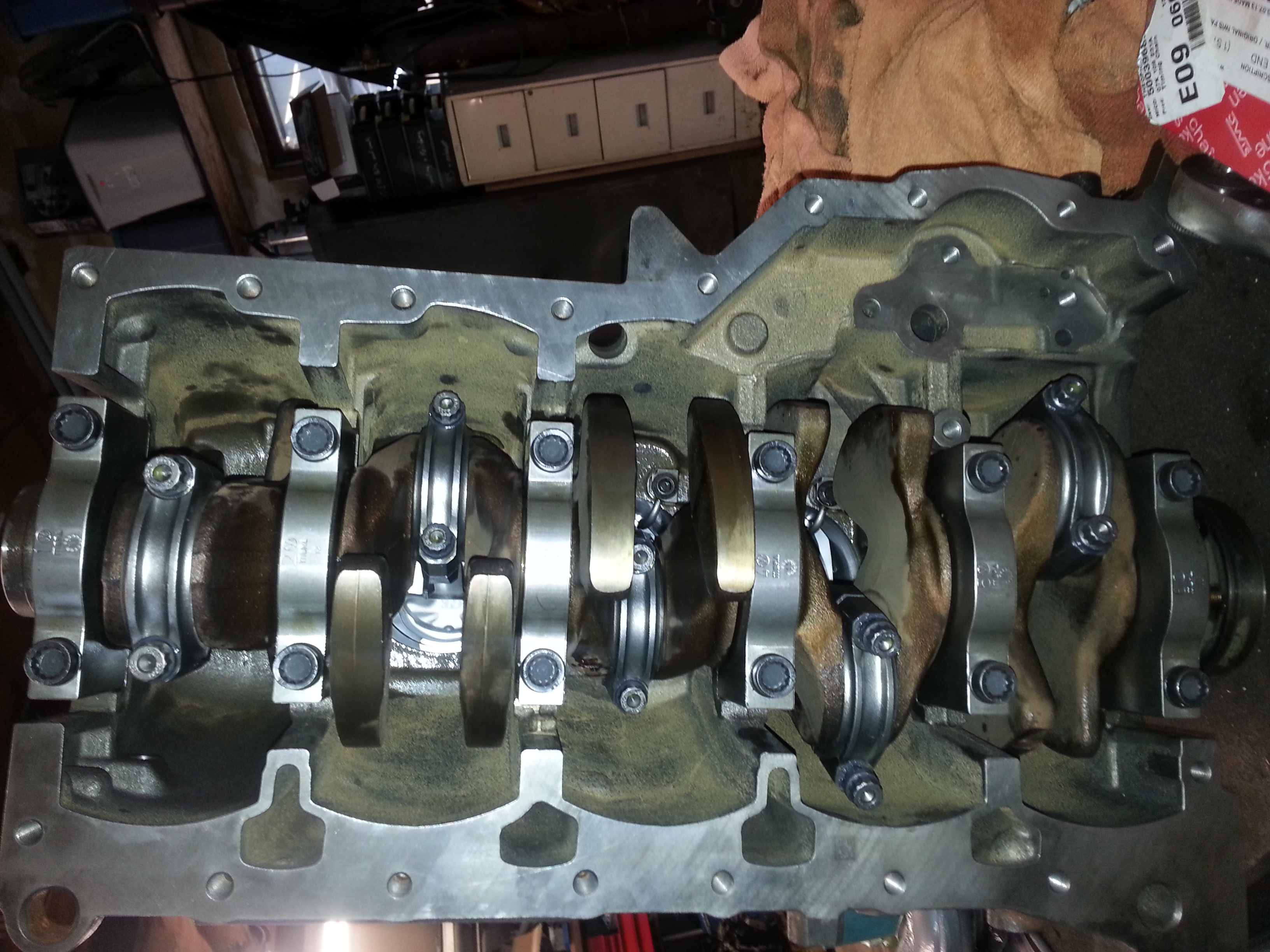

yes i know the rods have loose bolts lol


thats it for now boys and girls. maybe ill get froggy and go snap some more pics tonight.

[glibobbo21]

this too. shortened it at least 1/2"

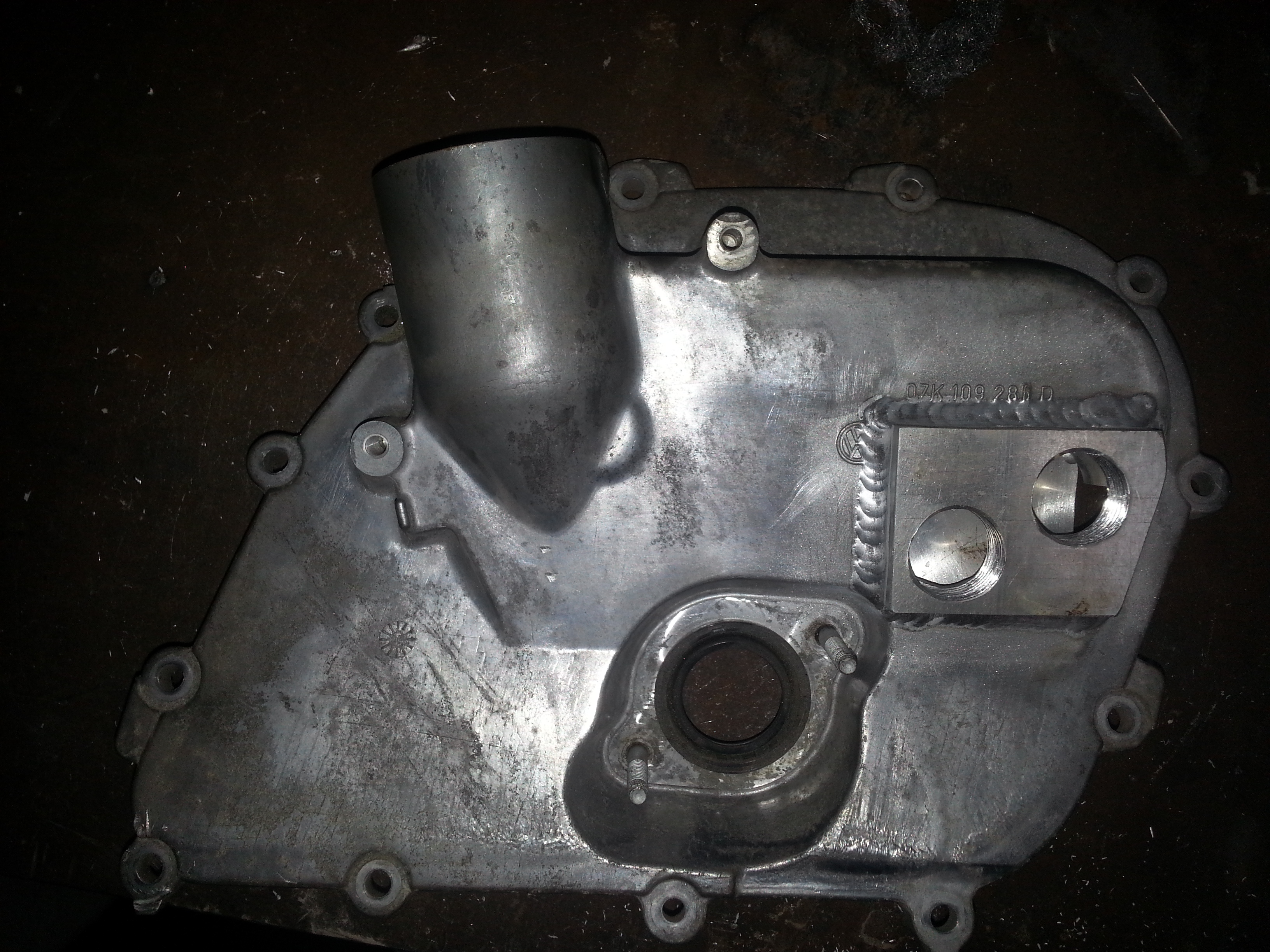

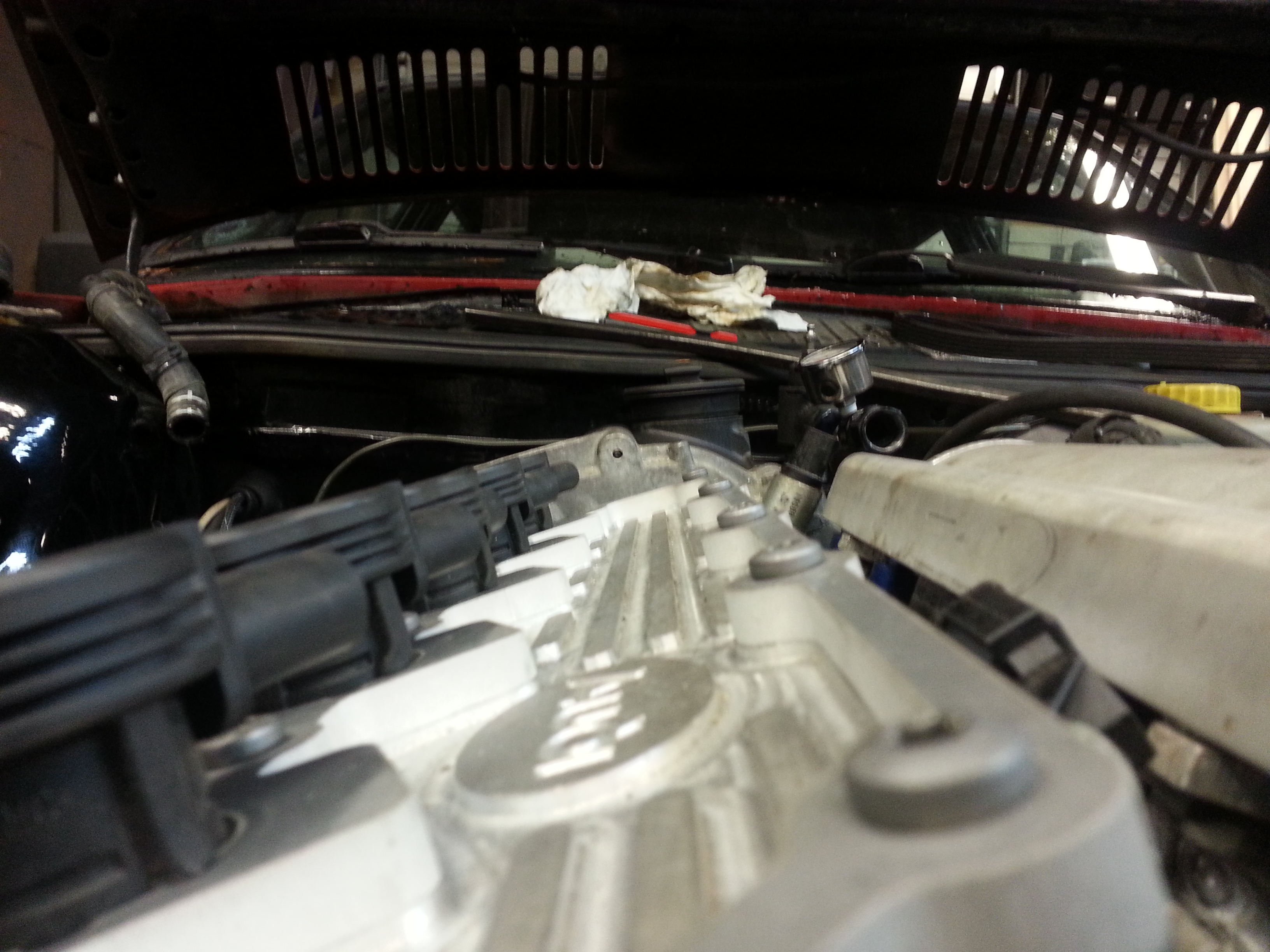

for hood clearance i shortened the timing cover oil filler.

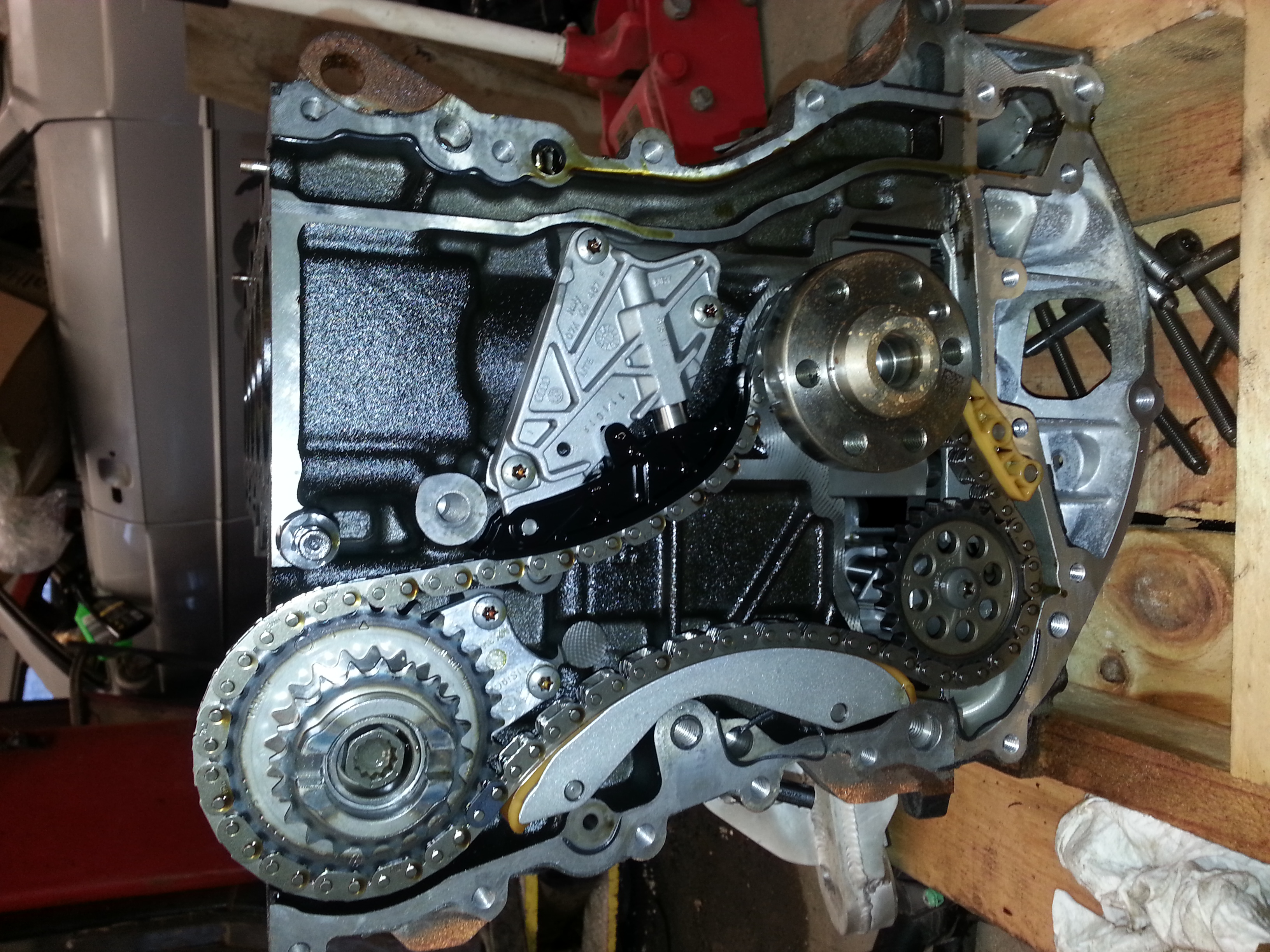

and a quick example of how simple the chain system is..

much easier than a b7 s4:-D


[chaloux]

Huh. That chain is super simple. Awesome.

[glibobbo21]

THATS ALL I GET!?

[glibobbo21]

Oooooooh oops. The rods are Integrated Engineering tuscan I beams and the pistons are JE 2168's. Tool steel 22mm wrist pins also.
