Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 1:22 am
by araipilot

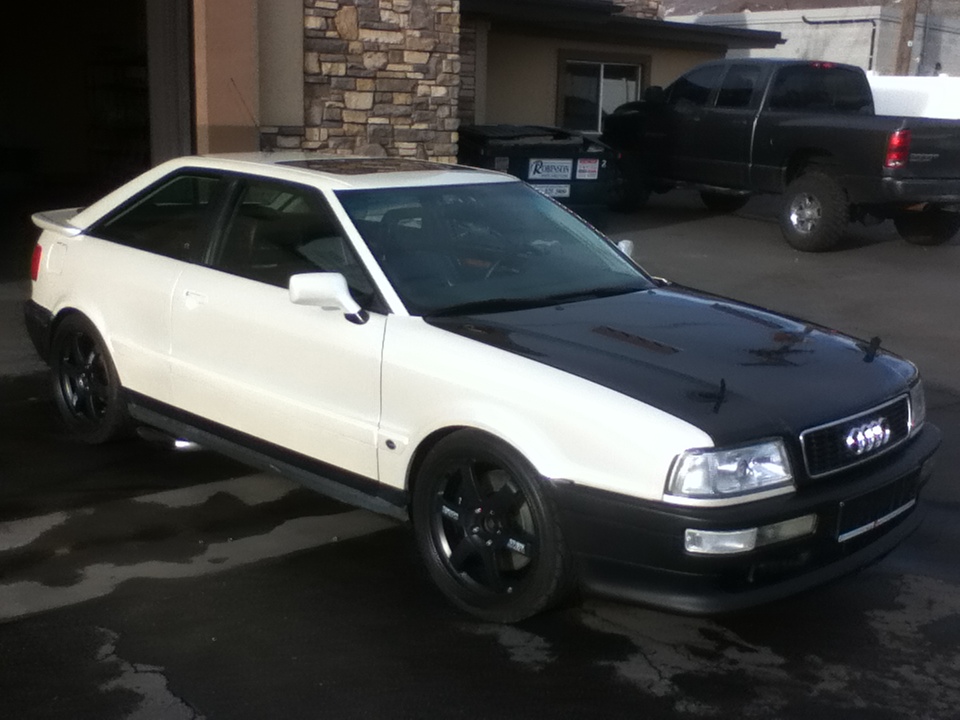

One outside freshly washed
- IMG_0087.JPG (194.53 KiB) Viewed 37317 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 1:24 am
by araipilot

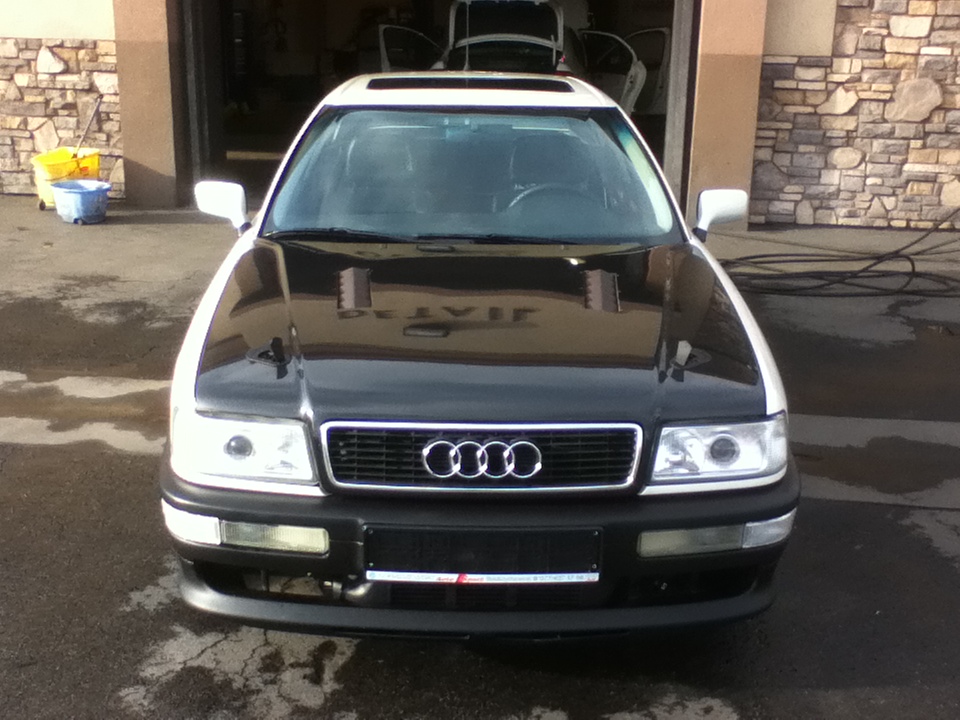

Cleans up pretty well with just wash, really needs a good cleaning from being in a shop for almost 5 months
- IMG_0089.JPG (247.19 KiB) Viewed 37317 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 1:30 am
by araipilot

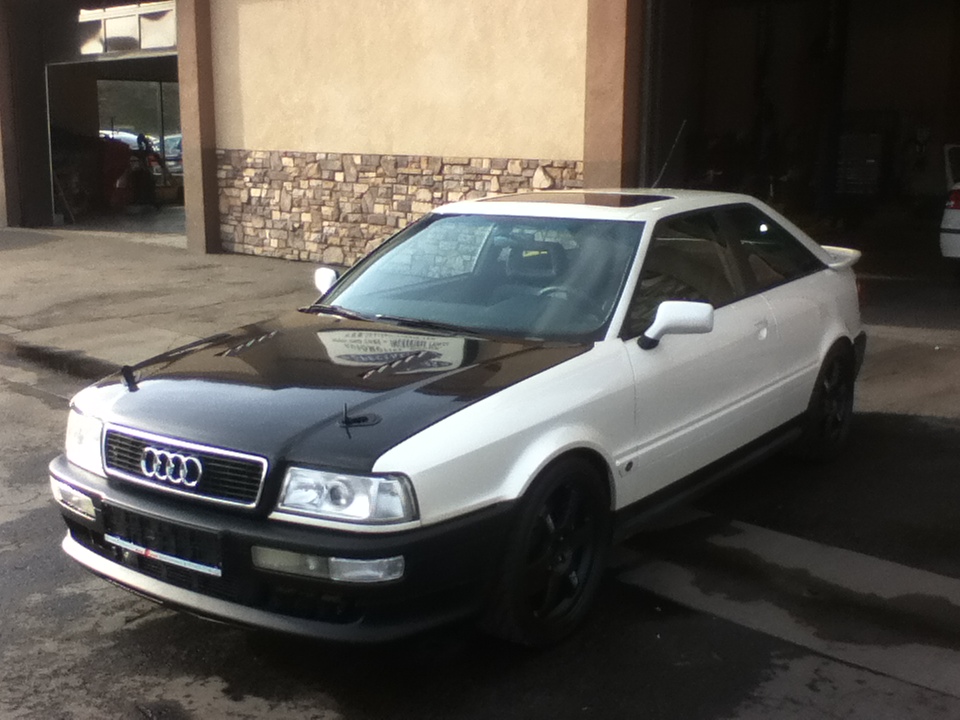

One more from the other side
- IMG_0090.JPG (217.65 KiB) Viewed 37317 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:00 am
by PRY4SNO
Spec is phenomenal, build is well executed.
Curious for some more pics and info on the hood vents (back side view, dimensions)...
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:20 am
by araipilot

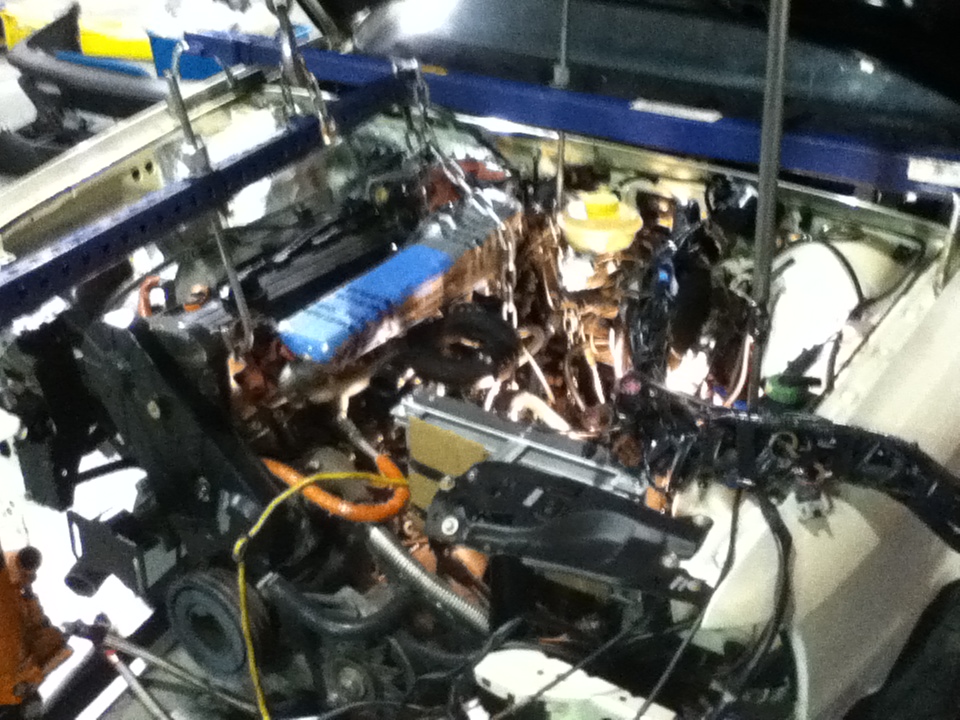

Ok posted the almost done car so I am doing this all in reverse order since you have all seen the car in its current state. I have been so busy with the build that I now have more time to post so alot of catching up photos. H
- IMG_0225.JPG (302.63 KiB) Viewed 37317 times
ere are a few pics of the engine being pulled in Dec. Decided to fully build the motor, JE forged pistons over sized , Integrated Engineering Rods Etc.
- IMG_0225.JPG (302.63 KiB) Viewed 37317 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:20 am
by araipilot

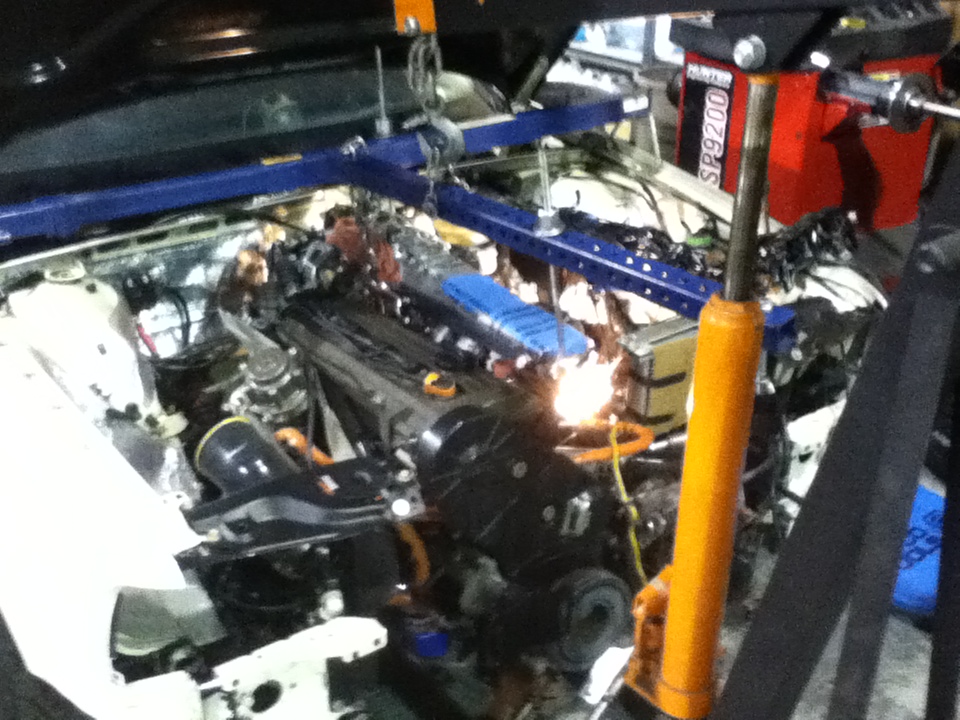

Man my camera sucks
- IMG_0226.JPG (286.86 KiB) Viewed 37316 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:22 am
by araipilot

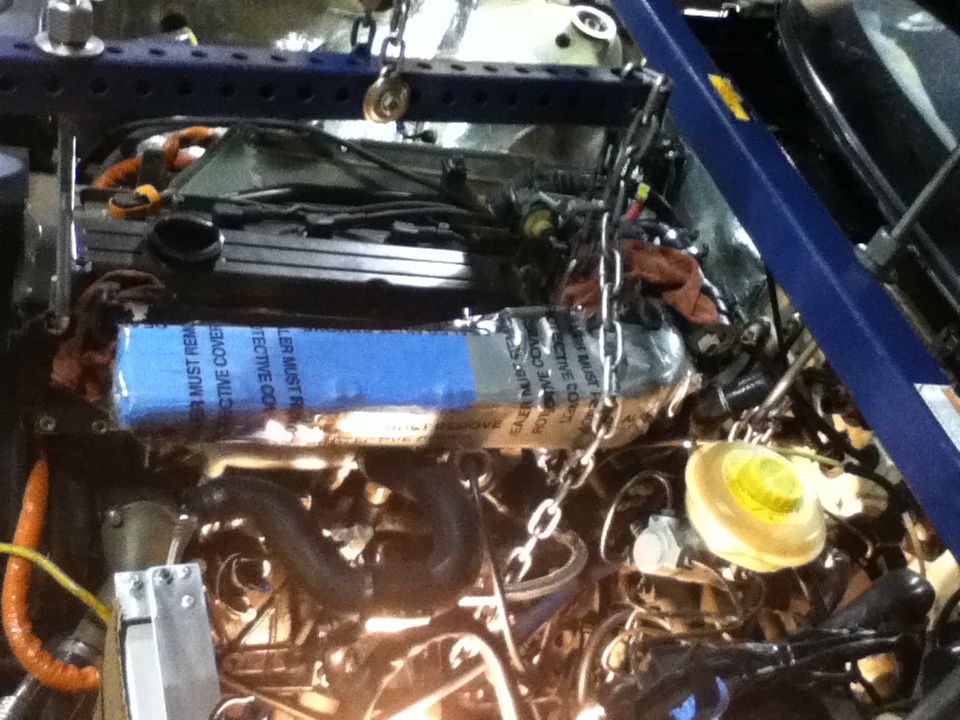

Didn't like the thought of a stock engine modified hence the reason for a full build
- IMG_0227.JPG (293.63 KiB) Viewed 37316 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:23 am
by araipilot

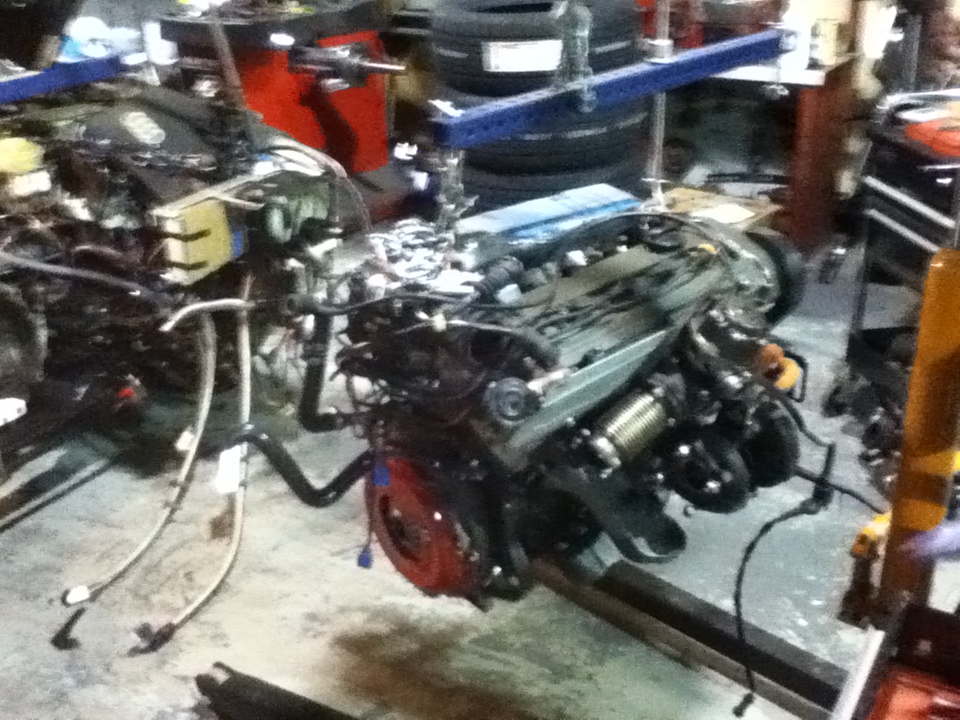

Man finally out, what a bugger, crappy shot of the engine with a South bend Stage 2 clutch. Man my camera sucks in this lighting!!
- IMG_0229.JPG (306.66 KiB) Viewed 37316 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:25 am
by araipilot

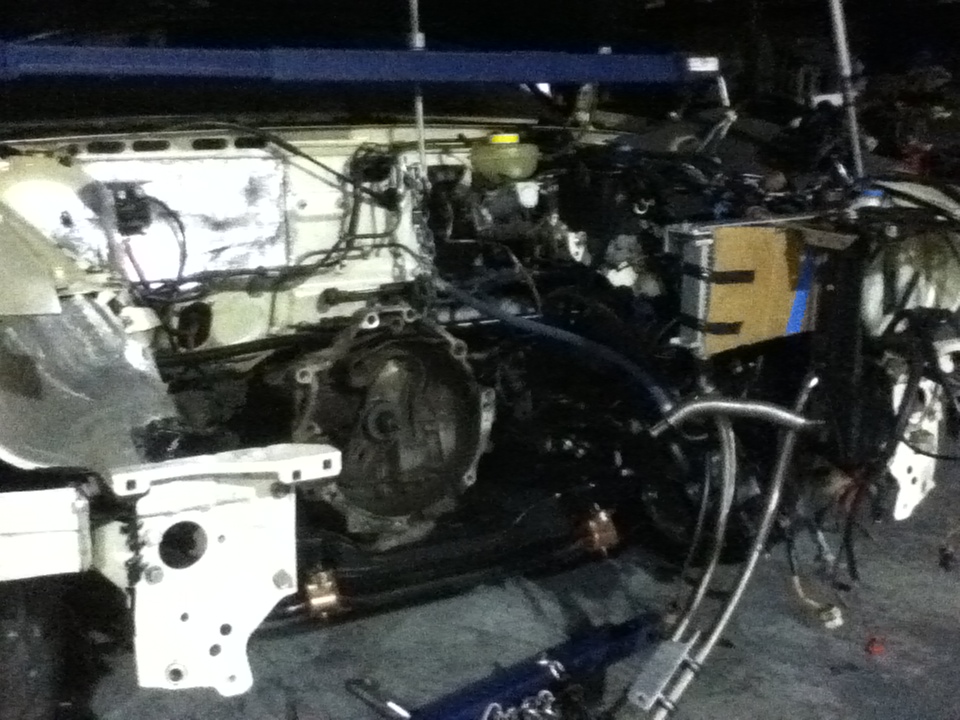

fully out time to start a good cleaning in the bay and to retouch with some of the POR 15
- IMG_0232.JPG (257.18 KiB) Viewed 37316 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:28 am
by araipilot

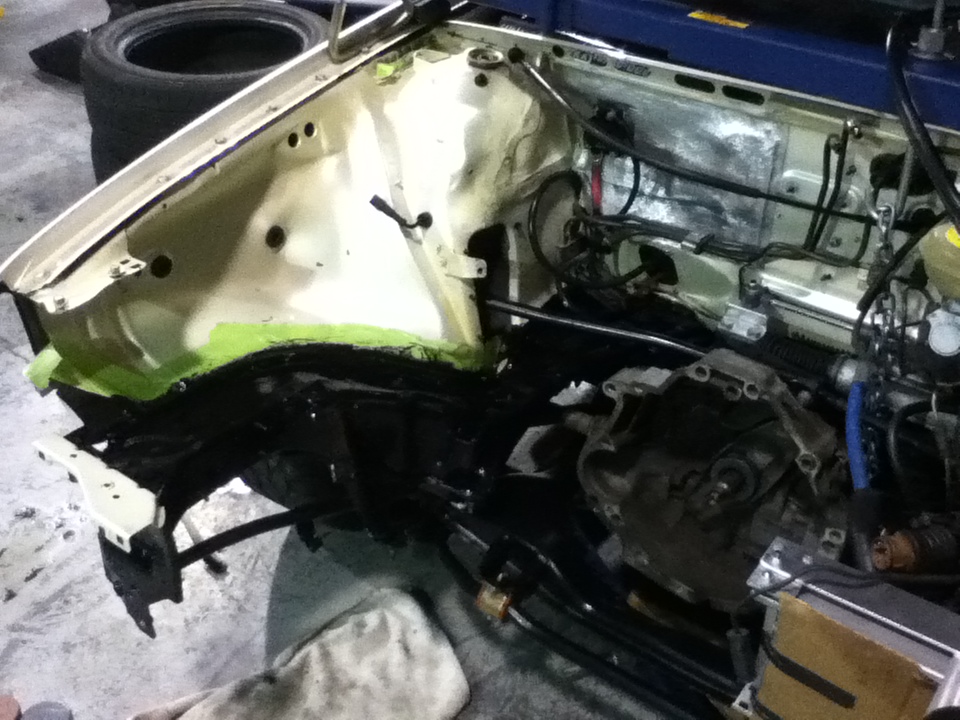

Still Cleaning the engine bay out. Bear in mind these pics were taken a while ago so I am just trying to catch up to where I presently sit with the build
- IMG_0274.JPG (262.5 KiB) Viewed 37316 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:29 am
by araipilot

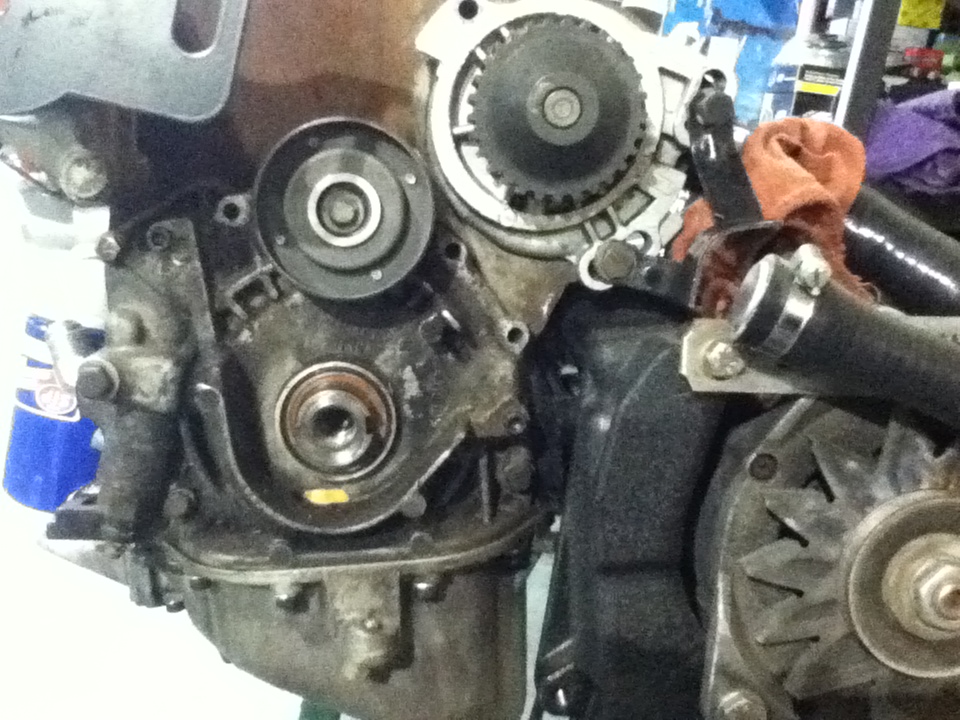

Oil pump and water pump look ok
- IMG_0233.JPG (288.97 KiB) Viewed 37316 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:31 am
by araipilot

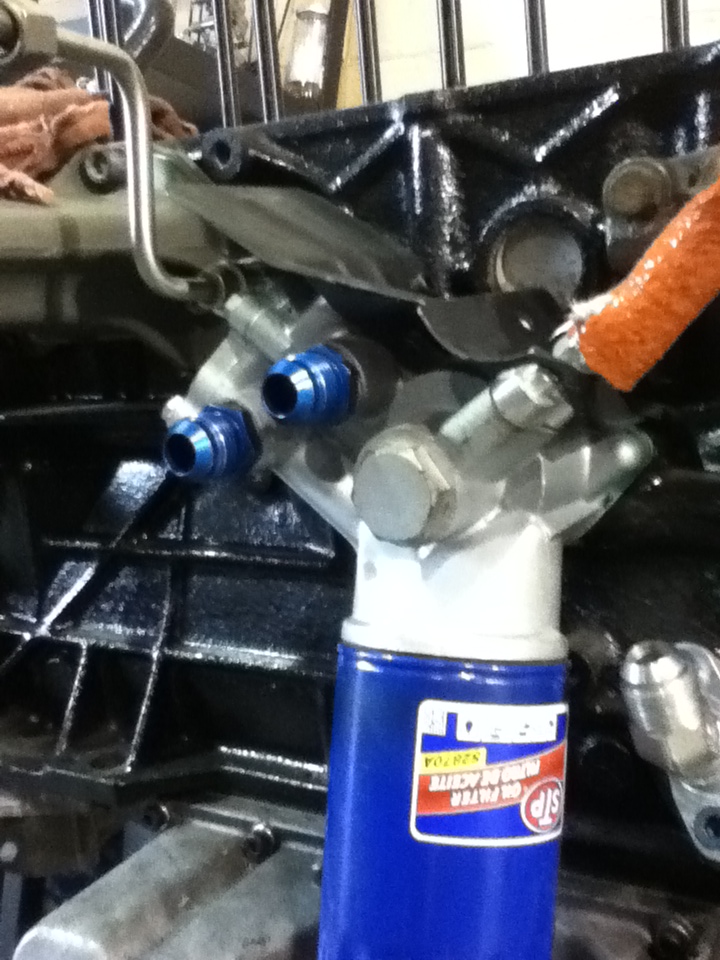

Oil unions
- IMG_0235.JPG (267.9 KiB) Viewed 37316 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:33 am
by araipilot

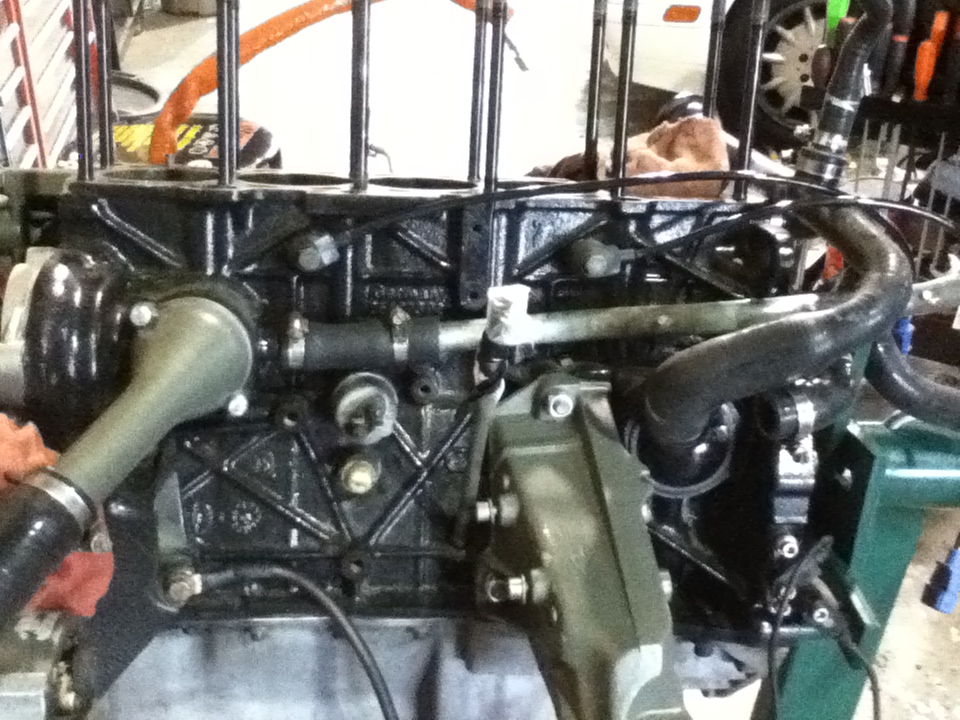

engine disassembly
- IMG_0238.JPG (302.46 KiB) Viewed 37316 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:34 am
by araipilot

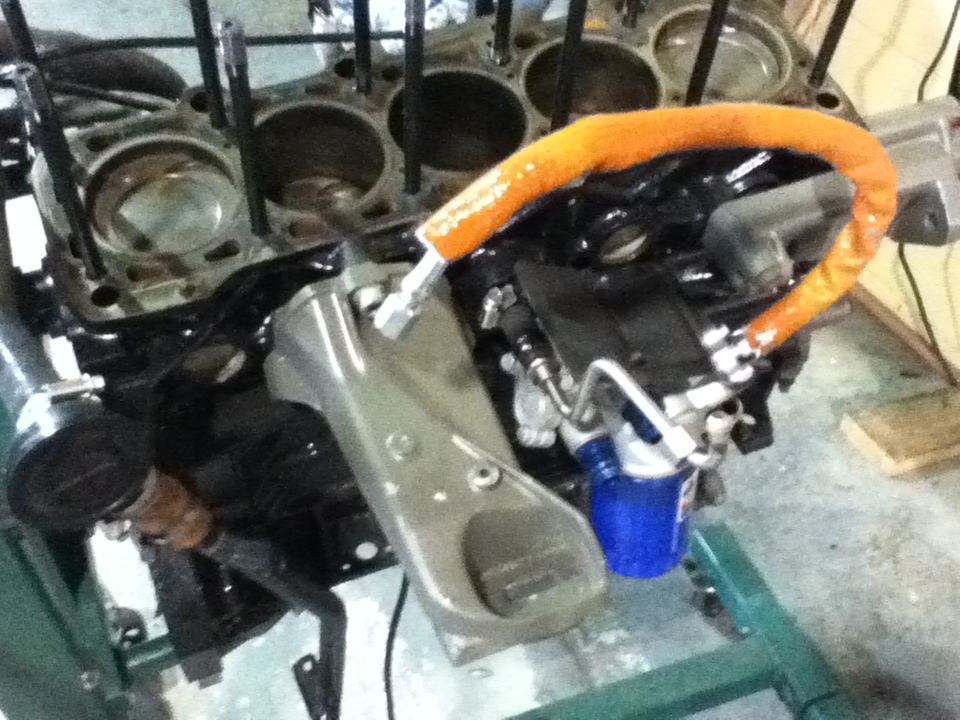

engine disassembly
- IMG_0241.JPG (281.98 KiB) Viewed 37316 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:35 am
by araipilot

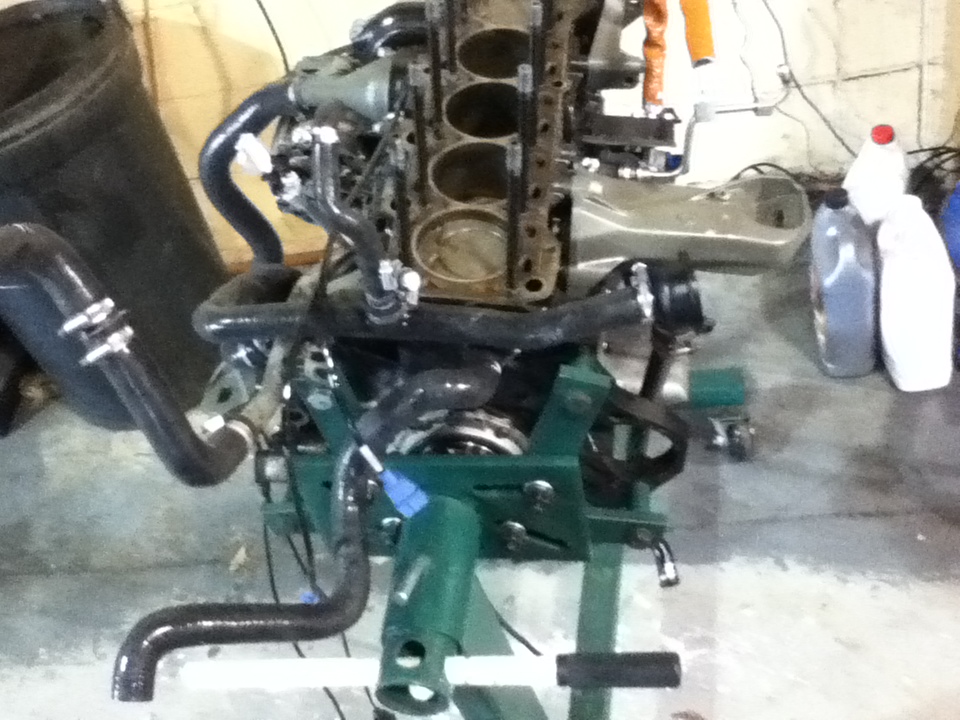

engine disassembly
- IMG_0243.JPG (261.82 KiB) Viewed 37316 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:36 am
by araipilot
engine disassembly
- IMG_0248.JPG (296.92 KiB) Viewed 37321 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:37 am
by araipilot

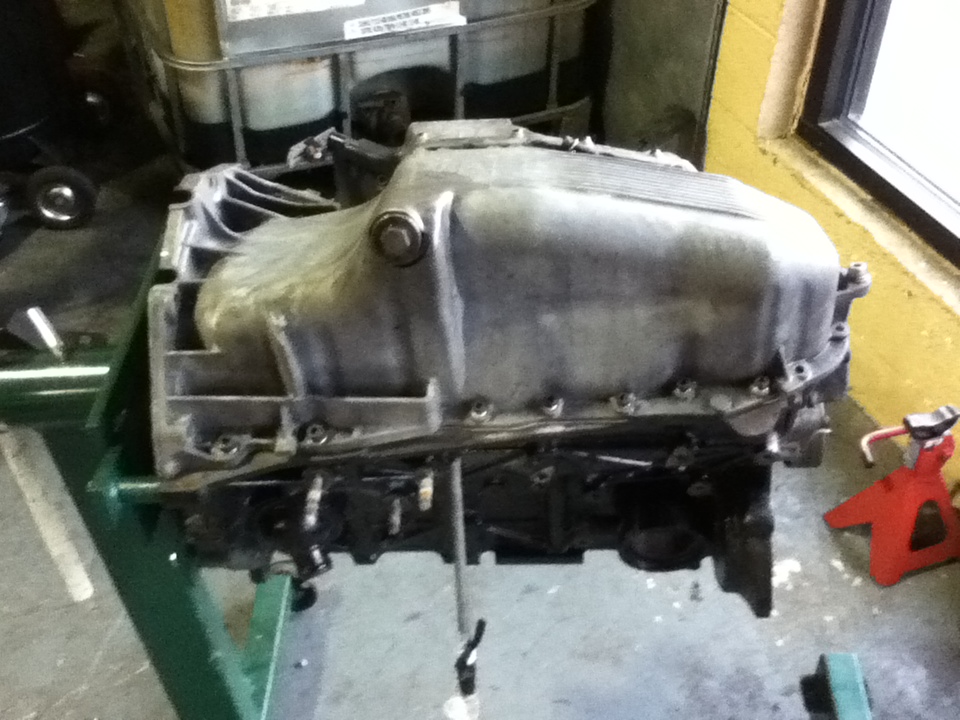

engine disassembly
- IMG_0255.JPG (249.21 KiB) Viewed 37321 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:38 am
by araipilot

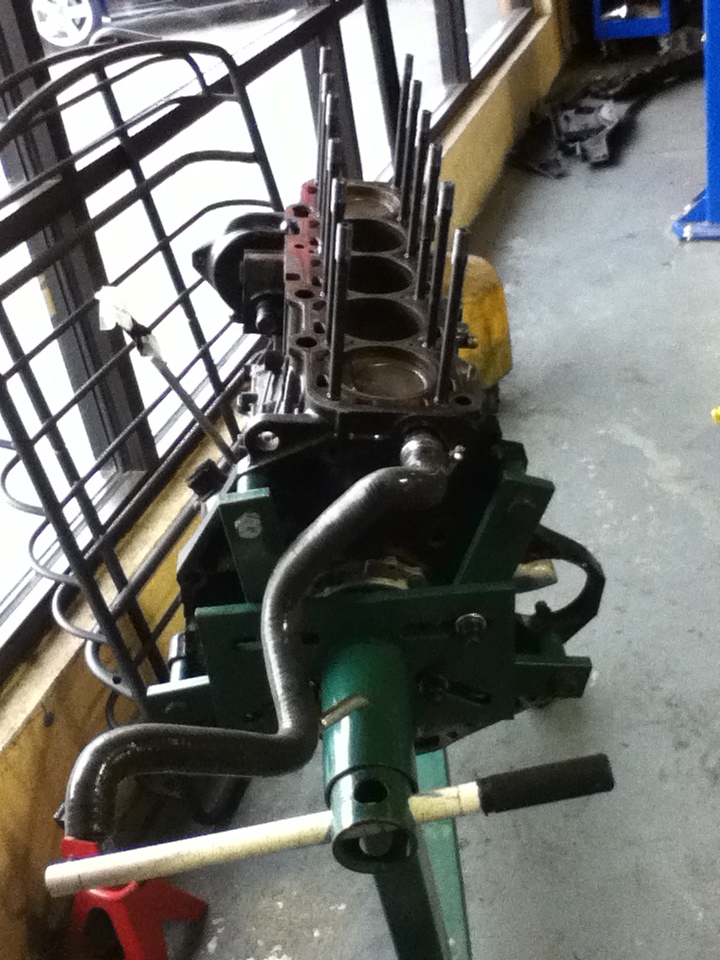

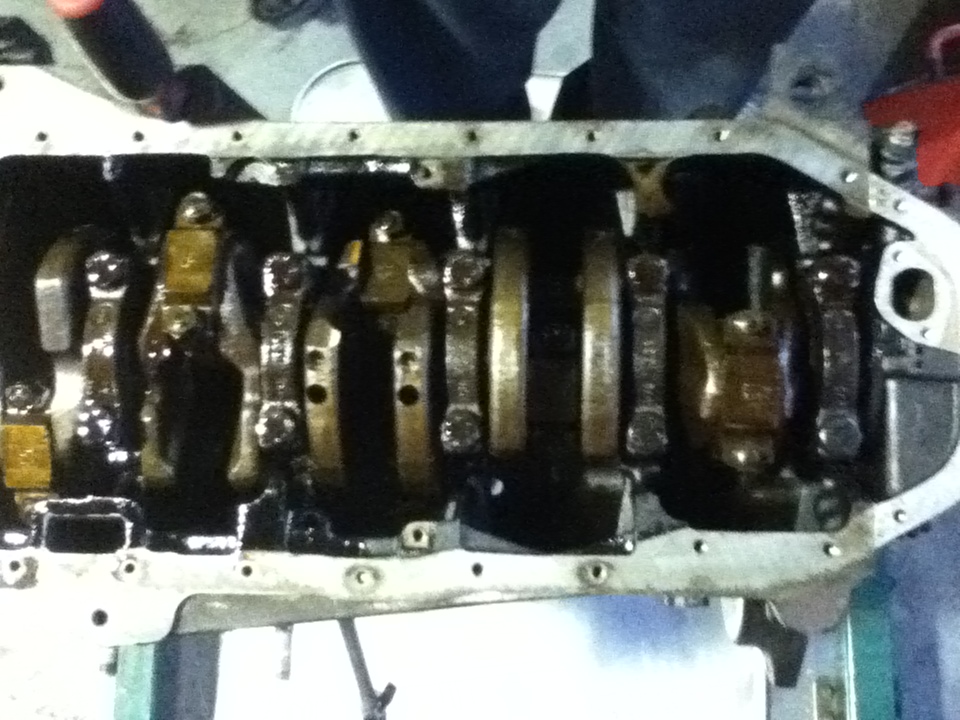

engine disassembly
- IMG_0258.JPG (249.1 KiB) Viewed 37321 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:41 am
by araipilot

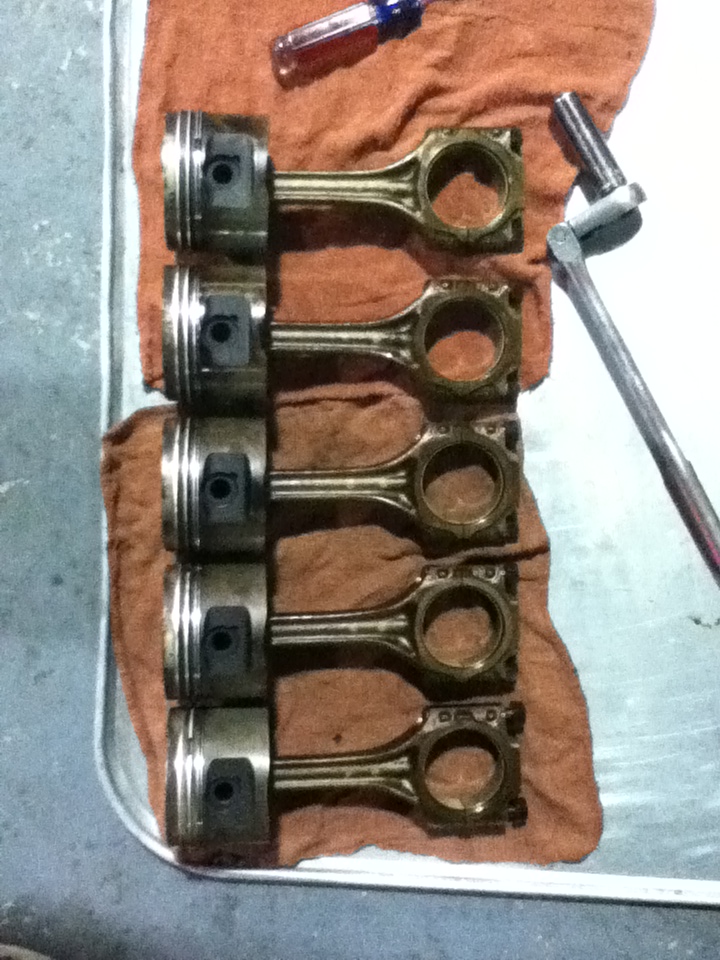

engine disassembly Pistons out and were in fantastic shape, the engine only had 100k on it so completly expected and the block was in great shape too.
- IMG_0259.JPG (296.7 KiB) Viewed 37321 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:43 am
by araipilot

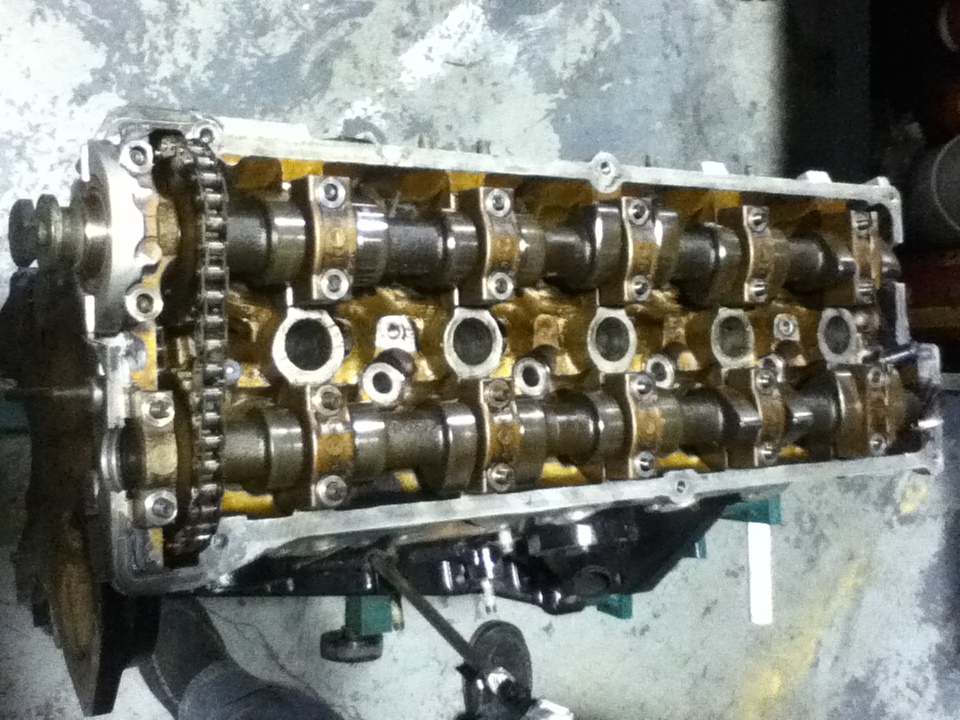

engine disassembly Time to check out the head
- IMG_0270.JPG (303.72 KiB) Viewed 37321 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:46 am
by araipilot

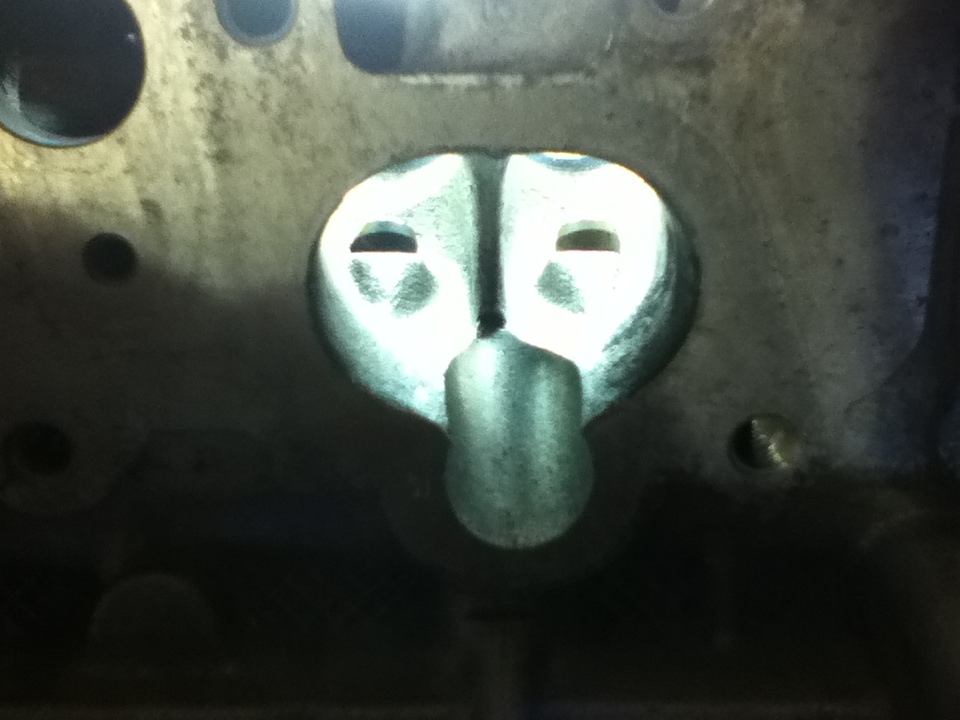

Thought while I was in there I should just clean up the ports a bit, here is the stock one. The second pic is after the port and polish
- IMG_0287.JPG (166.74 KiB) Viewed 37321 times

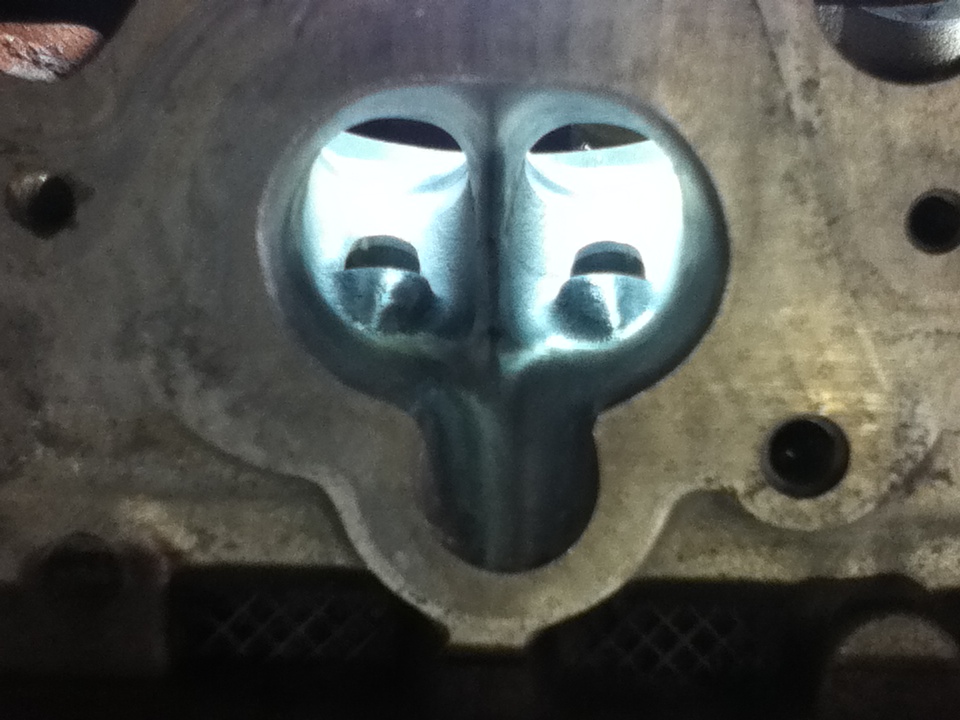

- After the port and polish
- IMG_0288.JPG (220.61 KiB) Viewed 37321 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:46 am
by araipilot
Second pic after the port and polish
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:53 am
by araipilot

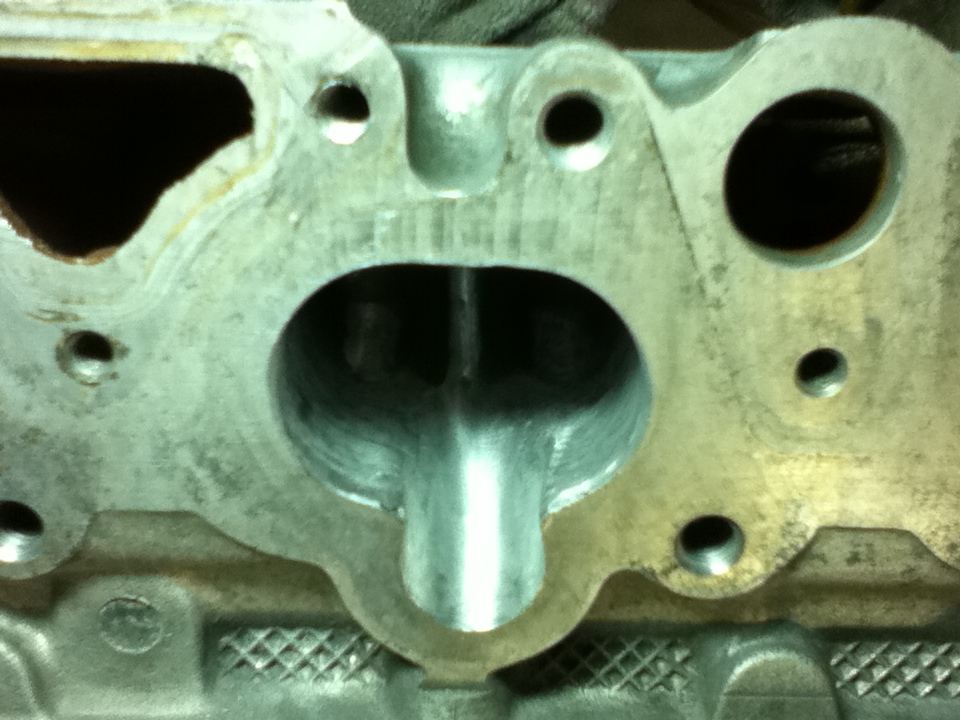

One more pic of the porting
- IMG_0289.JPG (242.62 KiB) Viewed 37321 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:55 am
by araipilot

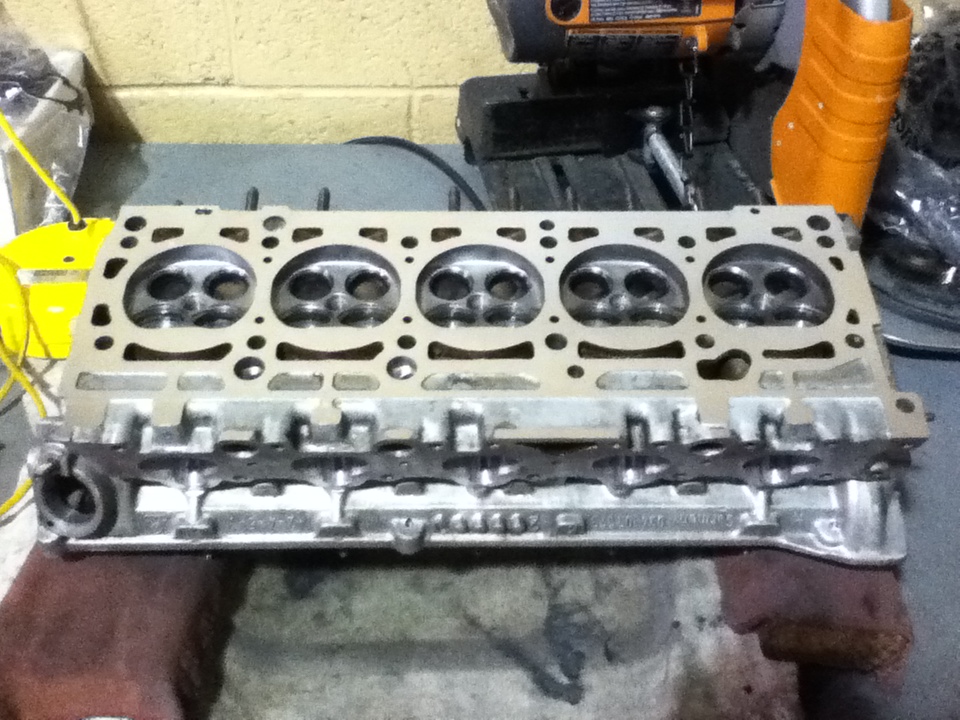

Head complete cleaned and redecked valves have been laped
- IMG_0291.JPG (295.4 KiB) Viewed 37321 times
Re: My audi CQ 3B S2 build
Posted: Tue Mar 12, 2013 2:56 am
by araipilot

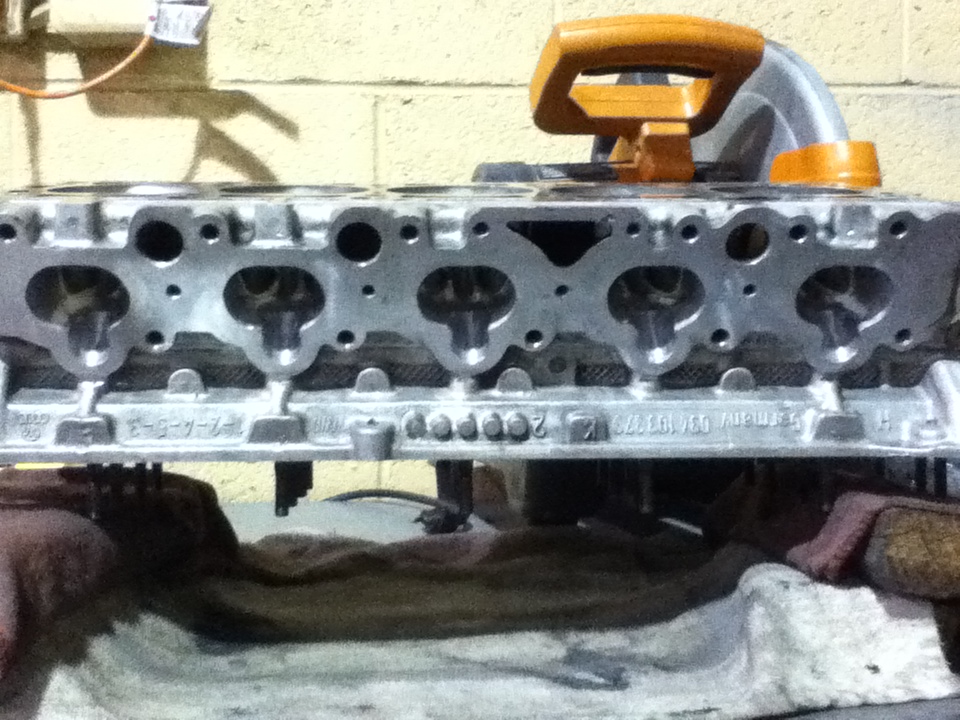

side view
- IMG_0292.JPG (288.25 KiB) Viewed 37321 times
