oldsklaudidub · Post by **oldsklaudidub** » Fri Apr 03, 2009 7:12 pm

did somebody say Tig Weld?

speeding-g60 · Post by **speeding-g60** » Fri Apr 03, 2009 7:28 pm

also today, the Tial wastegates i got from Issam got here, and i forgot to mention the VC i got from him as well... such a kind hearted soul that man is

s2 on the way · Post by **s2 on the way** » Fri Apr 03, 2009 10:11 pm

mmmmm,
thems are some perty aluminium pieces you got there

comin right along :thumbsup:

and once again, I can't wait to see this thing in action (i'm sure much less than you though

)

pilihp2 · Post by **pilihp2** » Fri Apr 03, 2009 10:38 pm

ShavedQuattro wrote:

Aaron, feel free to delete if I am getting your thread off topic!!

why has nobody commented on the fact of how FARRRRRRRRR Back that motor is? is that thing RWD? i saw a picture of that in another thread..

INFO PLEASE!!!

WAUG0806 · Post by **WAUG0806** » Sat Apr 04, 2009 4:33 am

Absolutely sick breather system! :thumbsup:

That ought to take care of your blow-by for at least 9 seconds! :wink:

Piliph2 - I can't imagine front half shafts on the red 20VT car... unless it's got some non-quattro awd drive train in it.

RSCoupe · Post by **RSCoupe** » Sat Apr 04, 2009 7:12 am

That is the UrQ with the custom transfer case and front diff. It's been in various threads many times...

loxxrider · Post by **loxxrider** » Sat Apr 04, 2009 8:10 am

Wow thats some nice lookin stuff you got there...this is why I am trying to get good at tig. Just need more practice.

Frank the quattro tank · Sat Apr 04, 2009 8:14 am

I believe that the URQ has a sierra or escort 4x4 gearbox.

zerb · Post by **zerb** » Sat Apr 04, 2009 9:10 am

nice stuff aaron. 8)

Justin517 · Post by **Justin517** » Sat Apr 04, 2009 9:43 am

pilihp2 wrote:
ShavedQuattro wrote:

Aaron, feel free to delete if I am getting your thread off topic!!

why has nobody commented on the fact of how FARRRRRRRRR Back that motor is? is that thing RWD? i saw a picture of that in another thread..

INFO PLEASE!!!

Its the KRB trading car
http://www.krbtrading.no/audi_s1_pikes_pike_prosjekt

OK thats not the build of the red car, I cnat find it...but it is KRB's car IIRC

tsin · Post by **tsin** » Sun Apr 05, 2009 12:15 pm

speeding-g60 wrote:

hi, i want to make same frame for my engine compartment as you. but i dont know what type of pipe should i use :( thanks for help..
thats my little baby

speeding-g60 · Post by **speeding-g60** » Sun Apr 05, 2009 3:59 pm

i used what would pass NHRA requirements (i hope haha)

1.25 OD tube, .118 wall thickness.

further back, there is some almost step by steps of what i did and why.

main reason was to fit the big turbo in there....

tsin · Post by **tsin** » Sun Apr 05, 2009 9:48 pm

what is OD please?

auditude · Post by **auditude** » Sun Apr 05, 2009 9:59 pm

tsin wrote:what is OD please?

Outside Diameter, as opposed to Inside Diameter.

tsin · Post by **tsin** » Tue Apr 07, 2009 1:04 am

thx

speeding-g60 · Post by **speeding-g60** » Fri Apr 17, 2009 4:27 pm

i am still around, working on the rabbit lately getting ready for april 25th. premiere i guess.

a trans without any syncros is definitely interesting to shift. even have half the teeh for the syncros ground off the gears. we'll see.

but i have good faith now for this car, as i have been a little hard on the Lago in the shift department lately. been driving it around a little on the weekends, and runnin the piss out of it, shifting and such. that thing shifts all the time, right on time, no matter what. it will be a treat to race a car that will shift. done a number of second gear chirpy's, too.

been doing some work on the AWIC reservoir, and really not much else.

but the exhaust manifold.... it is going to be pretty good i understand. it is a true divided inlet (twin-scroll) manifold. 1/4 into one side, 2/3 into the other. separate all the way to the turbo. 2 into 1, 2 into 1, and both ones into the turbo.

it is mounted, and the exhaust will snake inside the fender, past the coilover, and out thru the fender side by the door jamb. the twin Tial V-band wastegates (thanks Issam) dump to atmosphere downward. all mandrel bends SS tubing.

i got no pix, cuz i dont want to drive 160 miles to take them, i will do it when i pick up the car.

also got the boost piping. 3.5" OD polished (it comes that way) aluminum tube with mandrel bends. nice and simple, one pipe. V-band at the turbo, 3.5" x 3" at the AWIC. and my welder guy gets it cheap for me thru work. they have three shops, and they bought a CNC mandrel bending machine, but they put it at their shop in Montana, because of him. thats what the owner told him, as he knew he would be bending stuff left and right for his home adventures LOL. oh yeah, cost for 3' polished schd 10 3.5" OD aluminum tube and the short radius mandrel bent 90? $25 bucks. cheap as all can be. i think i am going to design a couple radiator tanks for the cars... he can brake the material and make them for me in nothing flat.

also ordered the AWIC pump. in tank setup, 500 gph. got the -4AN lines and fittings for plumbing the oil feed to the turbo, and the -10AN lines and fittings for the drain. once the motor is here i will have the return bungs welded onto the oil pan, and weld over the factory.

just a little update, i am still here, and still doing stuff....

fasterthenrs2 · Post by **fasterthenrs2** » Sat Apr 18, 2009 11:50 am

I thought you past away or something, I needed to search to find your tread

derracuda · Post by **derracuda** » Sat Apr 18, 2009 11:52 am

he's been sick. i saw him the other day and he was gackin' n' hackin'. he'll be back at it soon.

speeding-g60 · Post by **speeding-g60** » Sat Apr 18, 2009 11:55 am

oh i work on stuff even though i am sick.

that doesnt stop me

just waiting on so many things. :?

speeding-g60 · Post by **speeding-g60** » Sun Apr 19, 2009 5:16 pm

played designer for my coolant system. plain, easy, and larger capacity. it helps that i have a great resource for custom welded aluminum goods at an extremely reasonable cost. kinda makes me have things that are not "needed" made out of aluminum just cuz. BLING!!!!

polished aluminum is neat. still gotta figure a radiator though. but i got the parts ordered to do the first one (rabbit) and the AWIC reservoir plumbing as well.

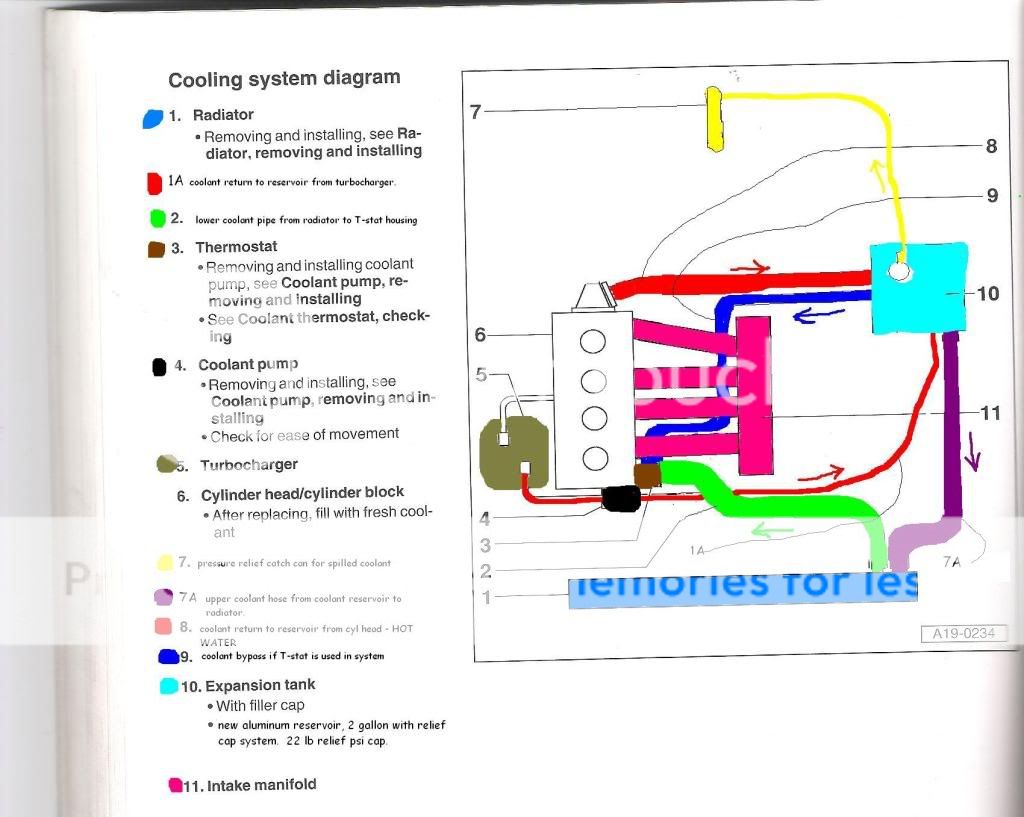

here is my idea, plain and simple. i am going to change the rabbit to this system first. and then the coupe will follow with a different shaped res and catch can. same principal.

the idea is more capacity for coolant, larger reservoir, and all coolant goes into big reservoir then feeds radiator. that way nothing is starved, and boilover should be non-existent.

but this will get me legal to NHRA spec concerning the catch can, and also add cooling capacity to the system. the bright blue line is in case i feel i need more flow.... it is normally the OEM T-stat bypass when coolant is cold. when it gets hot, the T-stat opens up and then coolant is drawn from the radiator also. i have deleted all the useless stuff like oil heat exchanger, heater core, etc. does not apply to a race car. and there is no turbo coolant lines for the CQ, but there is on the rabbit.

derrish_vulf · Post by **derrish_vulf** » Sun Apr 19, 2009 6:20 pm

good damnit i want to learn how to tig so bad.....

this is looking awesome, i CANNOT wait to see this thing at the track..

speeding-g60 · Post by **speeding-g60** » Thu Apr 23, 2009 2:06 pm

so i went and looked at the head today. man is it looking pretty.

been thru the specs but quickly:

AEB head, not ported in any way.
Supertech +1mm intake, standard exhaust. Inconel and Nitirided SS.
CAT Billet solid lifter cams and solid lifter buckets
Supertech springs and retainers.
new guides and seals.
single groove keepers on valves.

they are working out the lash caps now....

but check the difference with the side shotz of cams. stock is on the left. some little bit more lift and duration i would say. wonder if its gonna lope like a Chevy?? LOL

WAUG0806 · Post by **WAUG0806** » Thu Apr 23, 2009 3:11 pm

stock cam lobes look really pointy...

loxxrider · Post by **loxxrider** » Thu Apr 23, 2009 3:11 pm

Dayum, looks veddy nice.

Not sure if you already mentioned it...but how high do you plan to rev to?

speeding-g60 · Post by **speeding-g60** » Thu Apr 23, 2009 3:15 pm

10k rpms or so-ish..... and yeah, they do look rather pointy, huh. not much duration....

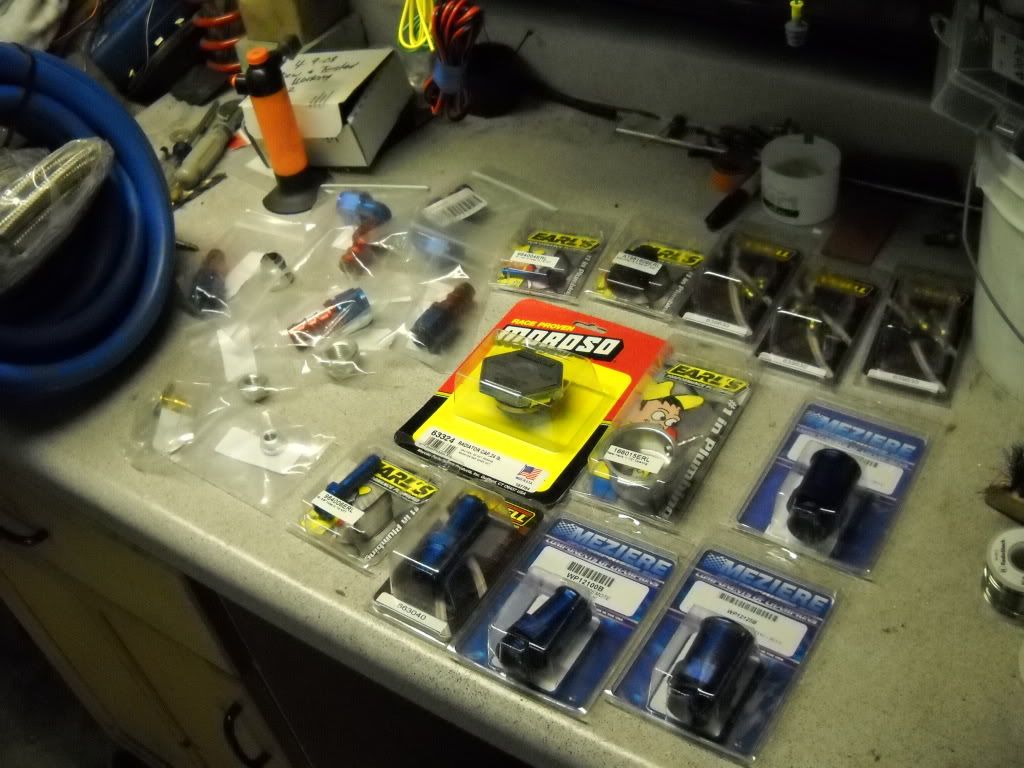

and some other random partz.... 3 pr speed bleeders.... and lots of hose and fittings for my radiator reservoir. i have to make one for each car, this is for the rabbit. test it out there, finalize it for here.
